EVAP System: Description

While the engine is running, if a predetermined condition (closed loop, etc.) is met, the purge VSV is opened by the ECM and stored fuel vapors in the canister are purged to the intake manifold. The ECM will change the duty cycle ratio of the purge VSV to control purge flow volume

Purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister

The ECM monitors the condition of both the key-off monitor and purge flow monitor to ensure proper operation of the EVAP system.

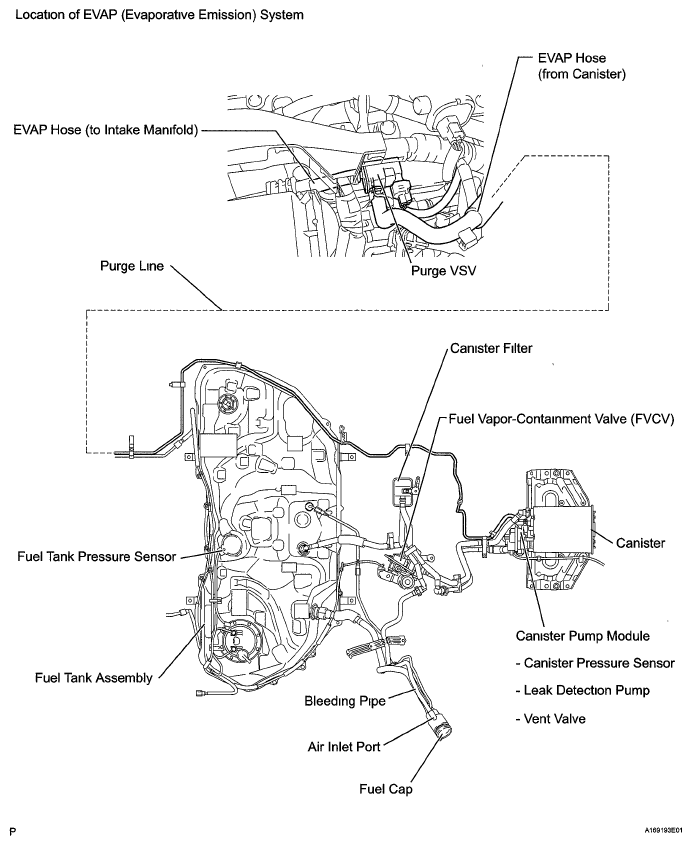

Fig 1: Identifying EVAP System Components
G05771128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

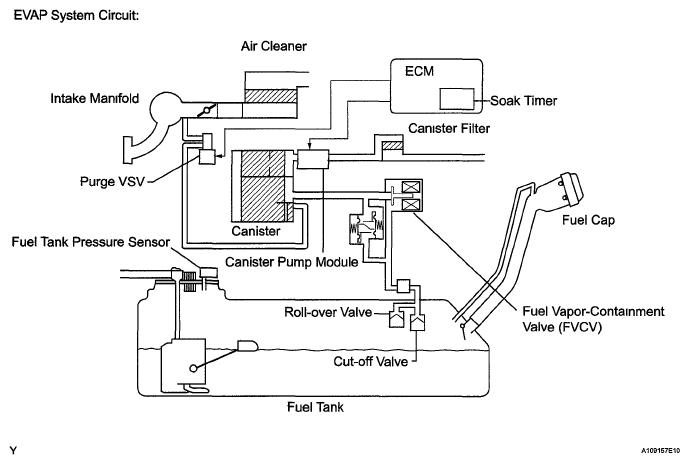

Fig 2: EVAP System Diagram
G05771129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMPONENT OPERATION CHART

Component Operation
Canister Contains activated charcoal to absorb EVAP that is created in fuel tank
Cut-off valve Located in the fuel tank Valve closes by its own weight when vehicle is overturned to prevent fuel from spilling out
Purge VSV Opens or closes line between canister and intake manifold ECM opens and closes purge VSV to control EVAP purge flow ECM opens purge valve to purge vapor gas that was absorbed by canister to intake manifold ECM controls EVAP volume purged to intake manifold by duty cycle (current-carrying time) to purge valve (ON Open, OFF Closed)
Roll-over valve Located in fuel tank Valve floats and closes when fuel tank is filled to 100% Also, valve close by its own weight when vehicle is over turned to prevent fuel from spilling out
Soak timer Built into ECM
Soak timer counts power switch OFF time
Fuel vapor-containment valve (FVCV) Opens and closes line between fuel tank and canister When vehicle is stopped, this valve closes to keep vapor in the tank and prevent it from being absorbed in canister During refueling, valve opens and vapor is absorbed in canister When driving, valve acts to change pressure in the tank slightly positive
Fuel tank pressure sensor Converts fuel tank pressure into voltage and outputs that voltage ECM supplies a constant voltage of 5 V to pressure sensor and uses feedback from sensor to monitor fuel tank pressure (Fig 5)
Canister pump module (a) to (e) below are canister pump module components Canister pump module cannot be disassembled
(a) Vent valve Vents and closes EVAP system When ECM turns valve ON, EVAP system is closed When, ECM turns valve OFF, EVAP system is vented Negative pressure (vacuum) created in EVAP system to check EVAP leaks by closing purge VSV, turning on vent valve (closed) and operating vacuum pump (refer to Fig 3)
(b) Canister pressure sensor Indicates EVAP pressure as voltage 5 V is applied by ECM ECM detects EVAP system pressure using this voltage (refer to Fig 4)
(c) Check valve Composed of nylon ball and spring Valve blocks off atmosphere from the vacuum pump
(d) Leak detection pump Negative pressure (vacuum) is created in EVAP system for leak check
(e) Reference orifice Diameter is 0 02 inch Negative pressure (vacuum) is created in reference orifice to measure reference pressure by closing purge VSV, turning off vent valve (vent) and operating leak detection pump Reference pressure indicates criterion of EVAP small leak

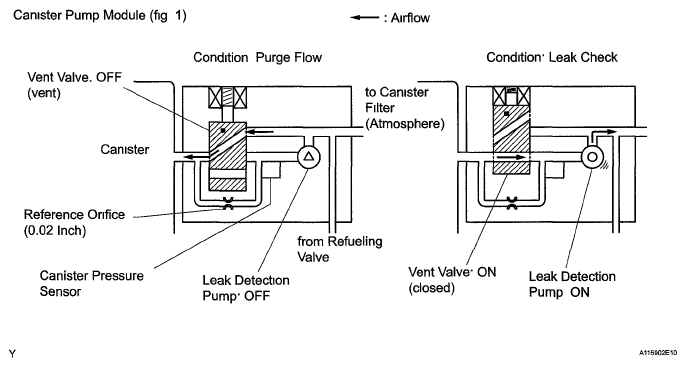

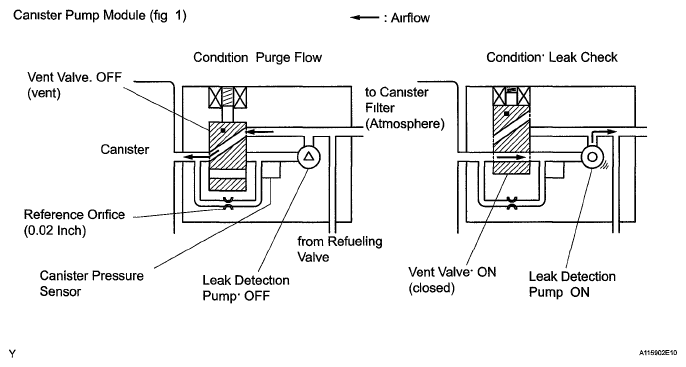

Fig 3: Air Flow Diagram
G05771130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

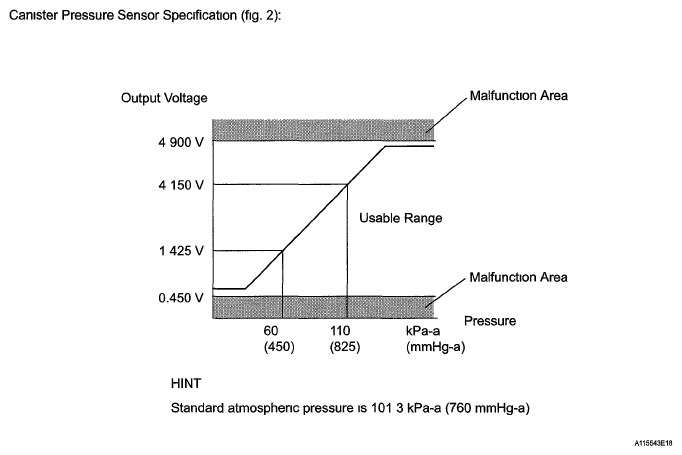

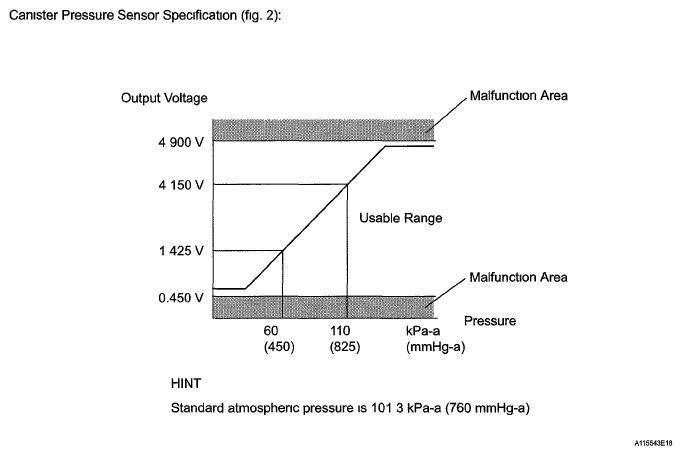

Fig 4: Canister Pressure Sensor Output Voltage Graph
G05771131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

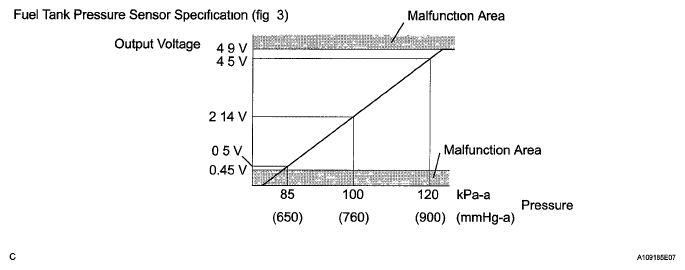

Fig 5: Fuel Tank Pressure Sensor Output Voltage Graph
G05771132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Key-off monitor

This monitoring system checks for canister pump module malfunctions and leaks from the EVAP and closed tank systems. Be sure to leave the vehicle for at least 5 hours to sufficiently cool the fuel and stabilize fuel tank pressure This makes EVAP system monitoring more accurate.

HINT:

If the engine coolant temperature is 35°C (95°F) or more, 5 hours after the power switch has been turned OFF, the ECM will begin performing a monitor check after another 2 hours. If the engine coolant temperature is still 35°C (95°F) or more, 7 hours after the power switch has been turned OFF, the ECM will begin performing a monitor check after another 2 5 hours

There are two methods for monitoring the EVAP system.

  1. If the fuel tank pressure is higher or lower than the atmospheric pressure, the system determines that there are no leaks in the closed tank system and the system will check for leaks from the piping and canister between the purge VSV and canister pump module (Method A)
  2. If the fuel tank pressure is almost the same as the atmospheric pressure, vacuum pressure will enter the fuel tank and the system will check for leaks from the fuel tank after checking for leaks from the canister. (Method B)

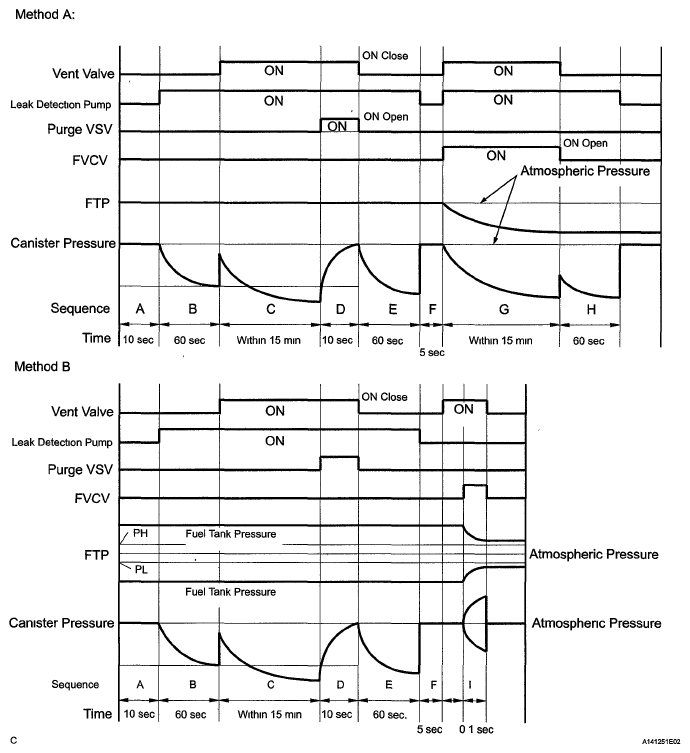

    Fig 6: Fuel Tank Pressure Graph
    G05771133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    OPERATION DESCRIPTION CHART

    Sequence Operation Description Duration
    - ECM activation Activated by soak timer, 5 hours (7 or 9 5 hours) after power switch turned OFF -
    A Atmospheric pressure measurement Vent valve turned OFF (vent) and EVAP system pressure is measured by ECM in order to register atmospheric pressure If pressure in EVAP system is not between 70 kPa and 110 kPa (525 mmHg and 825 mmHg), ECM cancels EVAP system monitor 10 seconds
    B First reference pressure measurement In order to determine reference pressure standard, leak detection pump creates negative pressure (vacuum) through reference orifice and then ECM checks if leak detection pump and vent valve operate normally 60 seconds
    C EVAP system pressure measurement Vent valve is turned ON (closed) to shut EVAP system
    Negative pressure (vacuum) is created in EVAP system, and EVAP system pressure is then measured
    Write down measured values as they will be used in leak check
    If EVAP pressure does not stabilize within 15 minutes, ECM cancels
    EVAP system monitor
    15 minutes
    D Purge VSV monitor Purge VSV opens and then EVAP system pressure is measured by ECM
    Large increase indicates normal
    10 seconds
    E Second reference pressure measurement After second reference pressure measurement, leak check is performed by comparing first and second reference pressure standards
    If stabilized system pressure is higher than second reference pressure standard, ECM determines that EVAP system has a leakage
    60 seconds
    F All actuator OFF Fuel tank pressure is compared with atmospheric pressure If thank pressure is higher than PH or lower than PL, ECM determines that EVAP system is normal and runs sequence I in method B If tank pressure is around atmospheric pressure, ECM performs sequence G in method A 5 seconds
    G Fuel tank pressure measurement Vent valve is turned ON (closed) Fuel vapor-containment valve opens to allow negative pressure into the fuel tank and fuel tank pressure is measured
    Write down measured values because they will be used in leak check
    If fuel tank pressure does not stabilize within 15 minutes, ECM stops monitoring
    15 minutes*
    H Third reference pressure measurement After 3rd reference pressure measurement, leak check of fuel tank is performed If recorded fuel tank pressure is higher than 3rd reference pressure, ECM determines that EVAP system has leakage 60 seconds
    1 Fuel tank close valve close stuck check Fuel vapor-containment valve is opened for a certain period of time to check whether the valve is stuck closed 0 1 second
    J Final check Atmospheric pressure is measured and then monitoring result is recorded by ECM -
    HINT:
    * If there is only a small amount of fuel in the fuel tank, stabilizing the EVAP pressure takes longer than usual

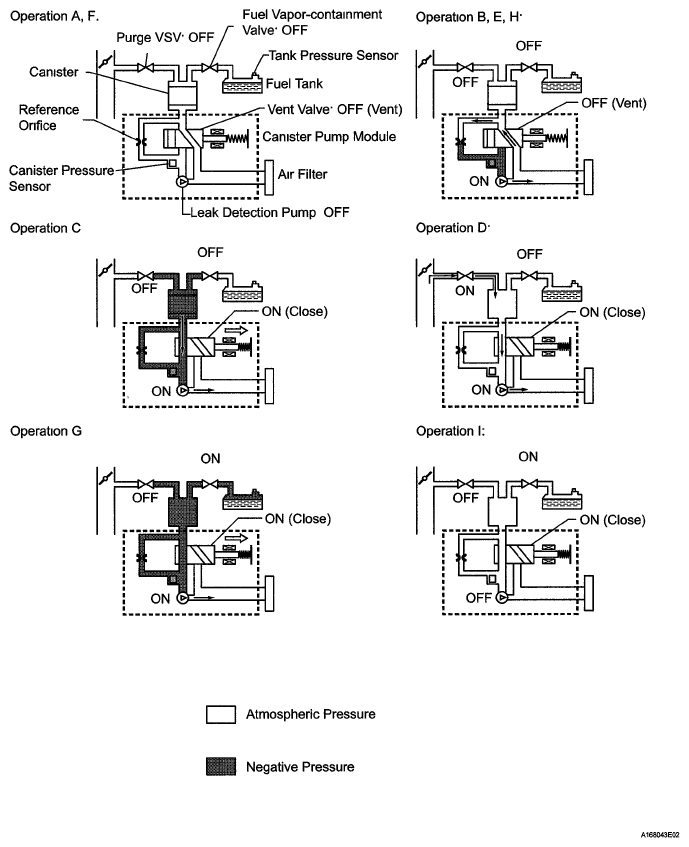

    Fig 7: EVAP System Operation Diagram
    G05771134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Purge flow monitor

    The purge flow monitor consists of 2 step monitors. The 1st monitor is conducted every time and the 2nd monitor is activated if necessary.

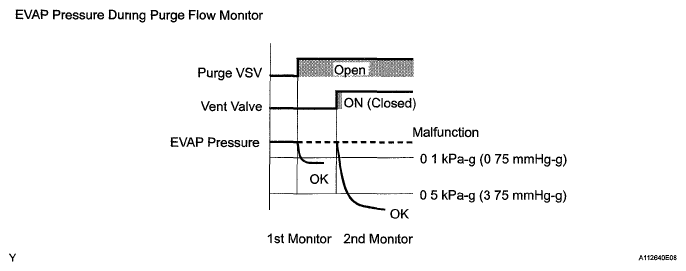

    Fig 8: EVAP Pressure Graph
    G05771135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The 1st monitor

      While the engine is running and the purge VSV (Vacuum Switching Valve) is ON (open), the ECM monitors the purge flow by measuring the EVAP pressure change. If negative pressure is not created, the ECM begins the 2nd monitor

    • The 2nd monitor

      The vent valve is turned ON (closed) and the EVAP pressure is then measured. If the variation in the pressure is less than 0 5 kPa-g (3.75 mmHg-g), the ECM interprets this as the Purge VSV being stuck closed. The ECM illuminates the MIL and sets DTC P0441 (2 trip detection logic).

Atmospheric pressure check.

In order to ensure reliable malfunction detection, the variation between the atmospheric pressure, before and after conduction of the purge flow monitor is measured by the ECM.

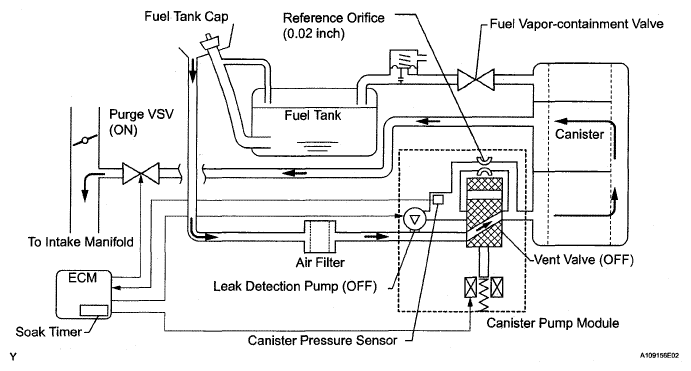

Fig 9: Purge Flow Diagram
G05302463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
