Engine Coolant Temperature Sensor: Components

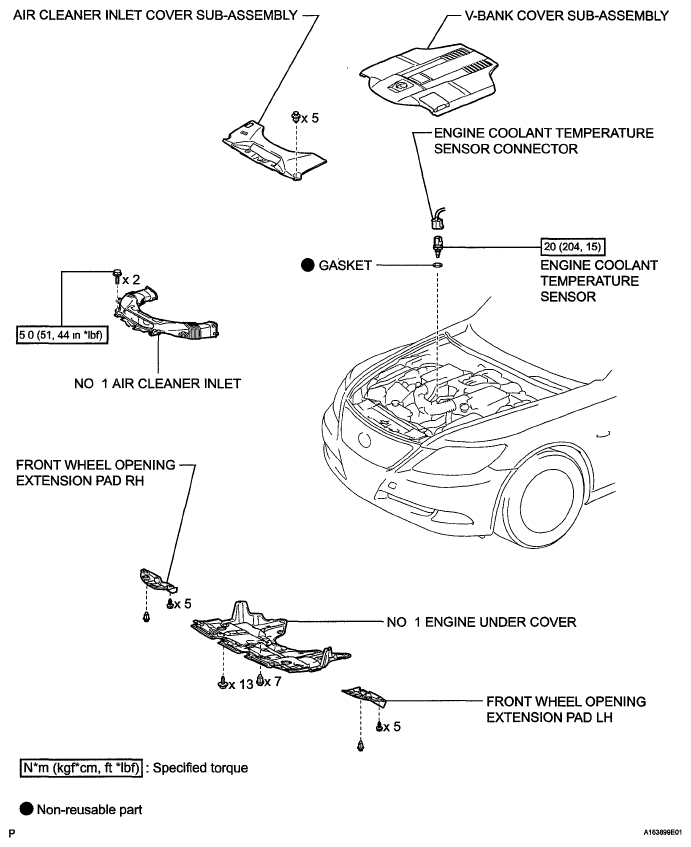

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
G05771257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
