Knock Sensor: Components

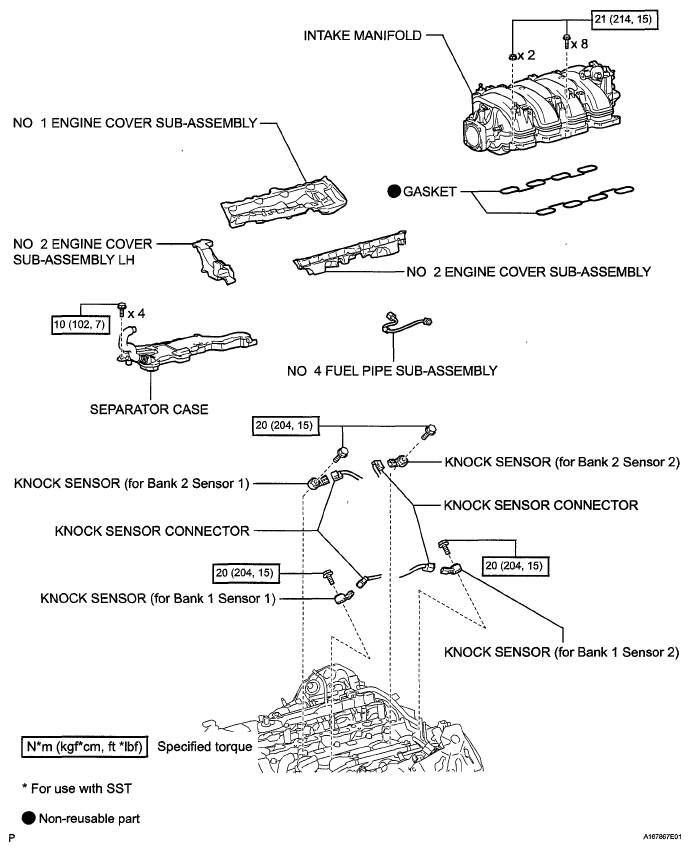

Fig 1: Lnock Sensor Replacement Components With Torque Specifications
G05771261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
