Parts Location — 2008 Lexus LS 600hL Service Manual ~ LEMON Manuals

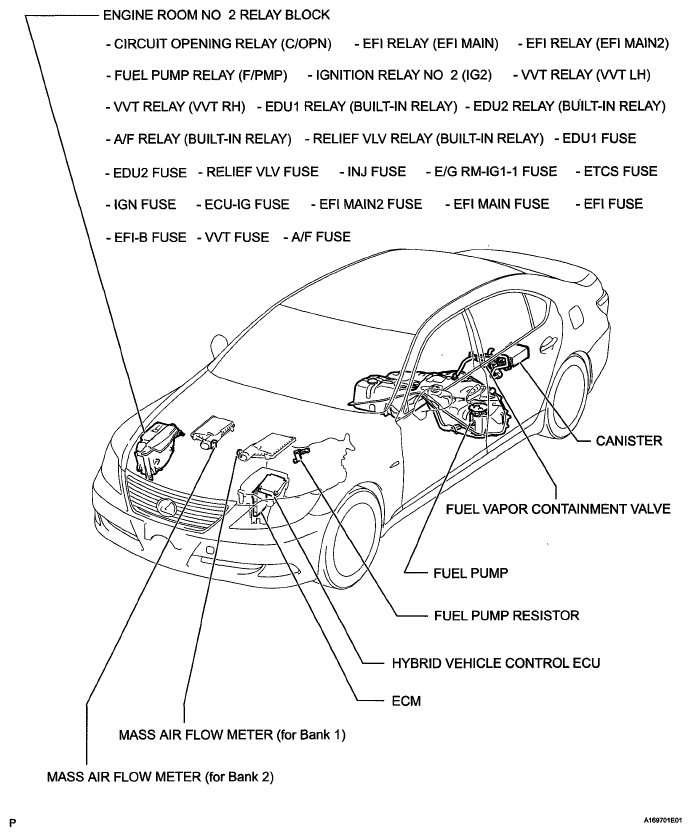

Fig 1: Identifying SFI System Parts Location (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

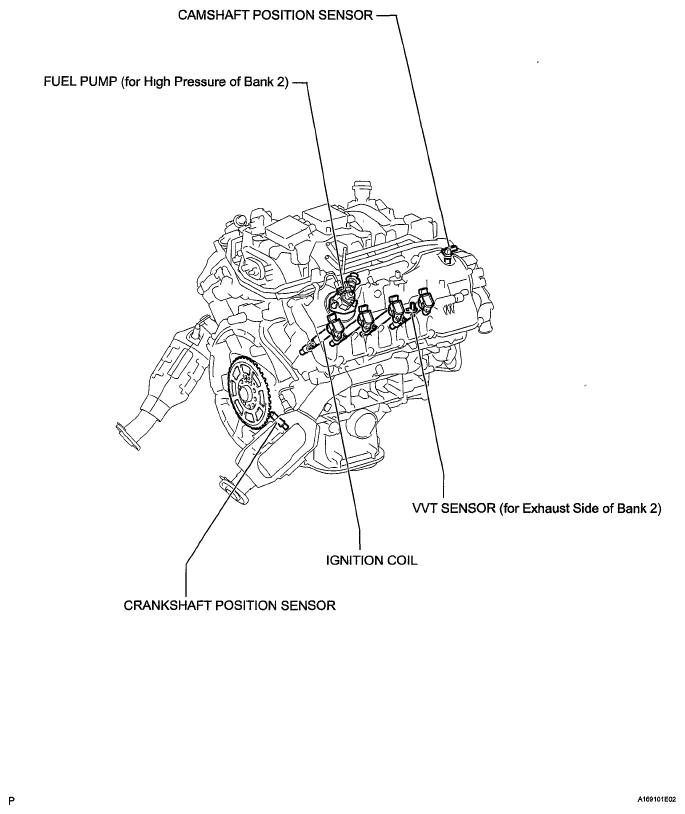

Fig 2: Identifying SFI System Parts Location (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

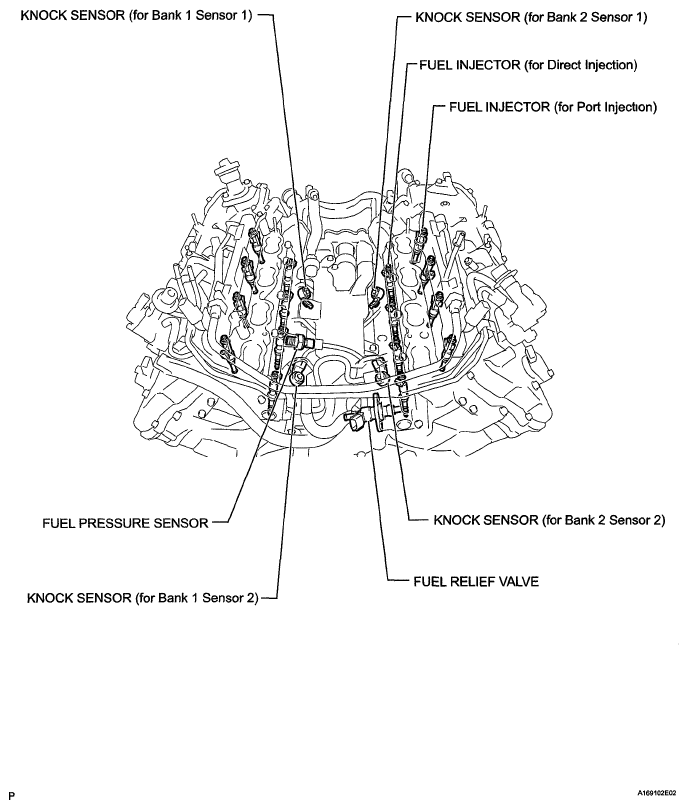

Fig 3: Identifying SFI System Parts Location (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

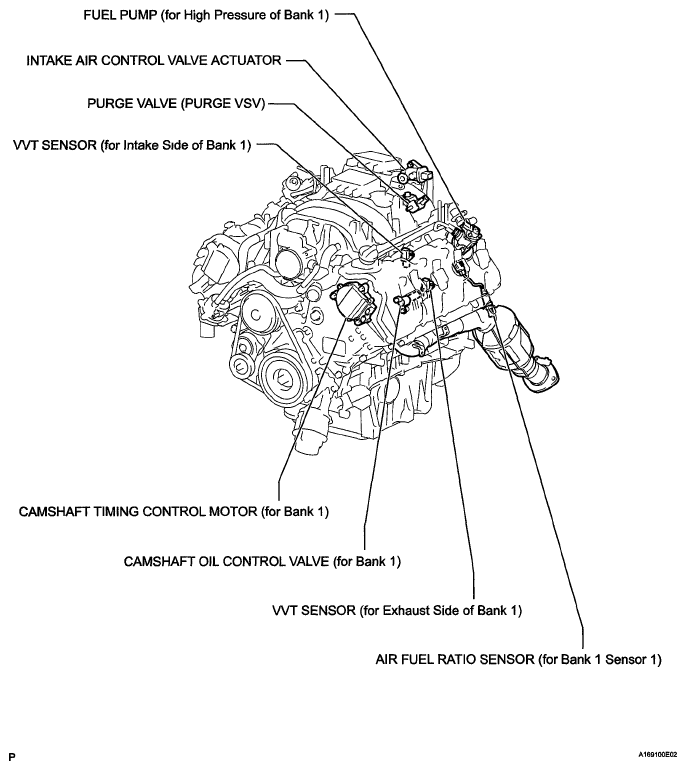

Fig 4: Identifying SFI System Parts Location (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

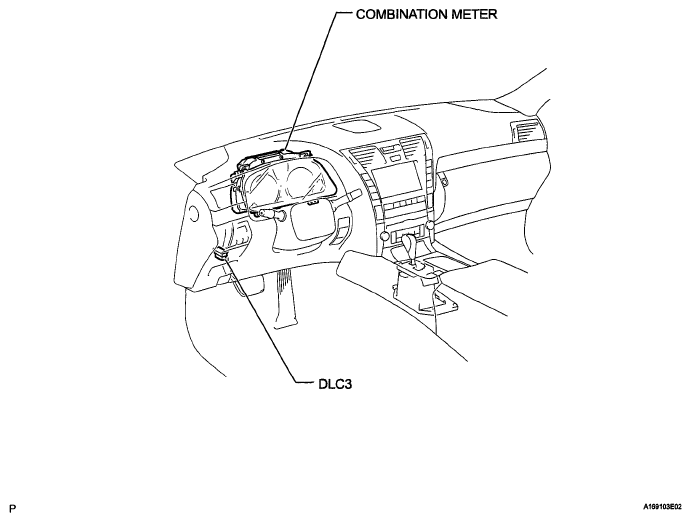

Fig 5: Identifying SFI System Parts Location (5 Of 7)

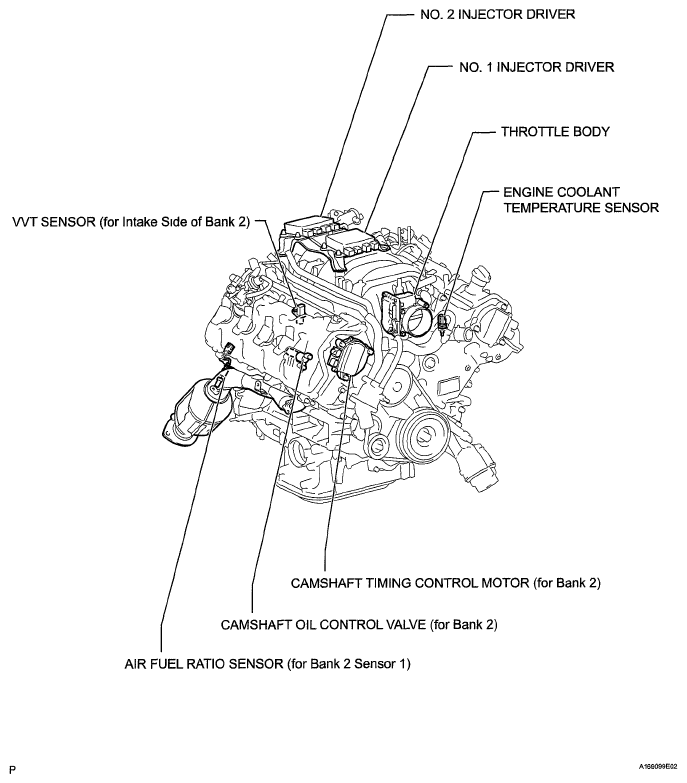

Fig 6: Identifying SFI System Parts Location (6 Of 7)

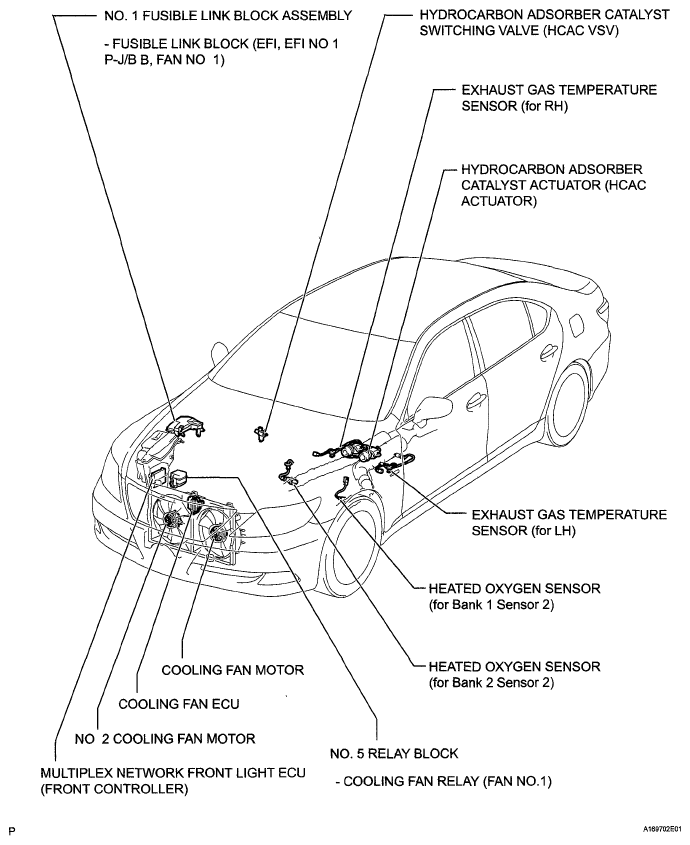

Fig 7: Identifying SFI System Parts Location (7 Of 7)
