Fuel Pressure Sensor: Components

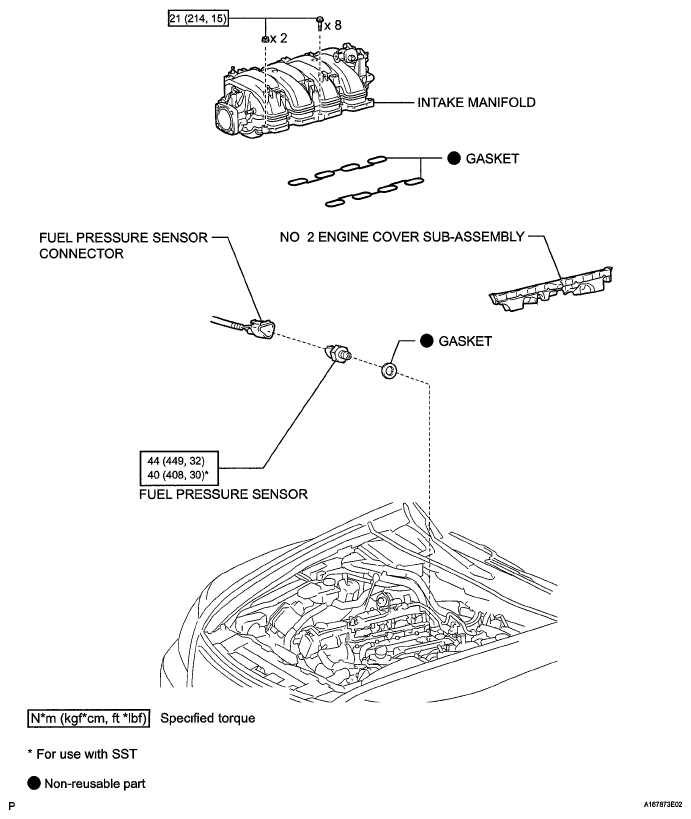

Fig 1: Fuel Pressure Sensor Replacement Components With Torque Specifications
G05772972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
