Fuel Pressure Sensor: Installation

INSTALL FUEL PRESSURE SENSOR
1. Install a new gasket to the sensor.
2. Using SST, install the sensor to the fuel delivery pipe.
  SST 09922-10010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  30 N*m (306 kgf*cm, 22 ft.*lbf)
  NOTE:
  - Do not apply oil to threads of the pressure sensor and delivery pipe.
  - Do not allow foreign matter to enter the pipe during the installation.
  HINT
  - Use a torque wrench with a fulcrum length of 30 cm (11 8 in.).
  - Make sure SST and the torque wrench are connected in a straight line.

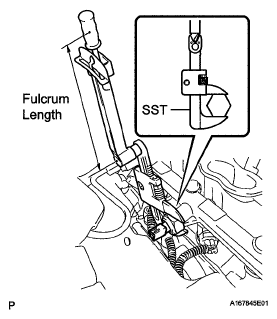

    Fig 1: Identifying Fulcrum Length
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the sensor connector.
INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL INTAKE MANIFOLD
1. Install the intake manifold (see INSTALLATION )
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
