Fuel Pump: Components

Fig 1: Identifying Fuel Pump Components (1 Of 4)
G05771550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 4)
G05772927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

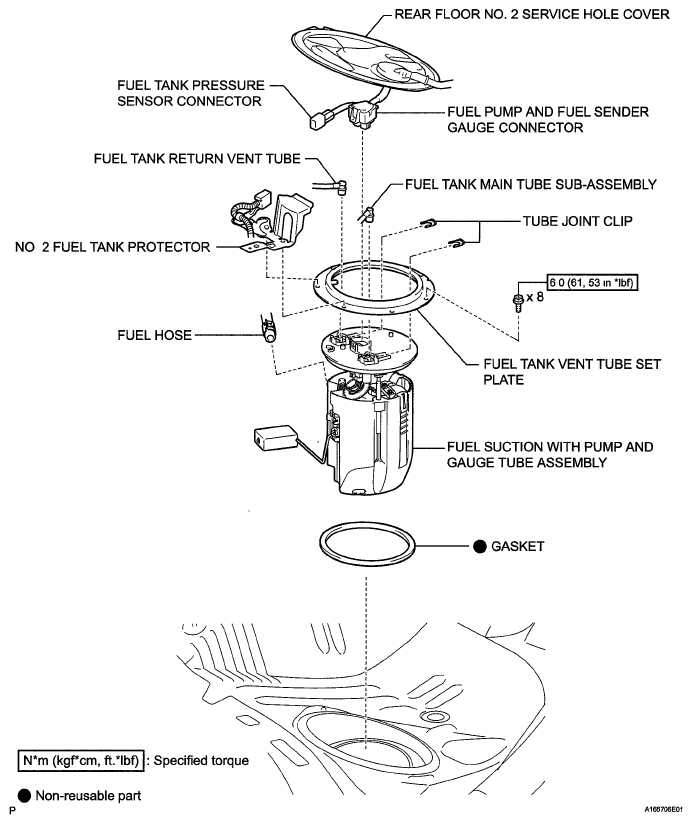

Fig 3: Fuel Pressure Regulator Replacement Components With Torque Specifications (3 Of 4)
G05772928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

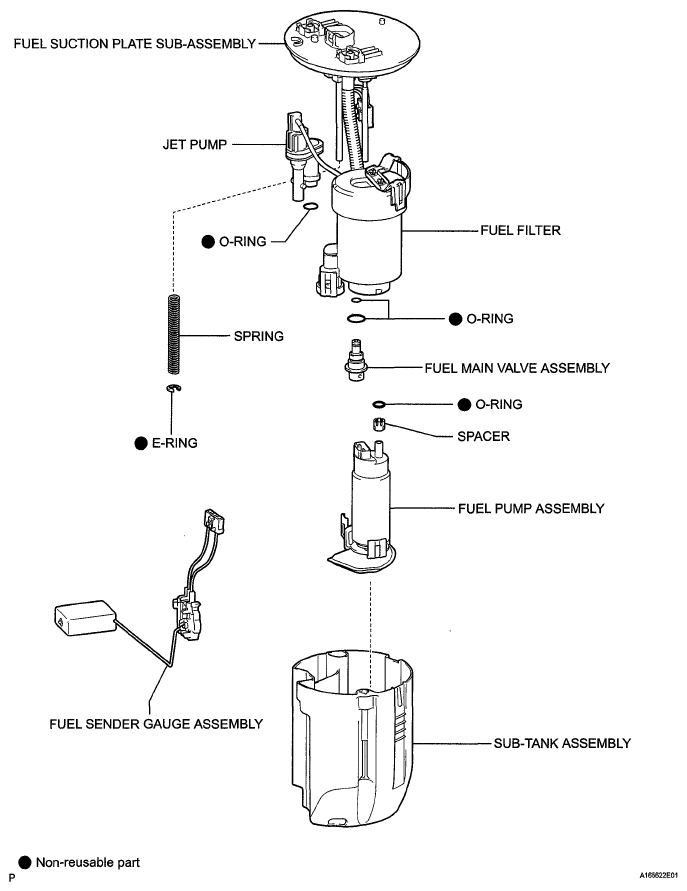

Fig 4: Identifying Fuel Pump Components (4 Of 4)
G05772997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
