System Diagram

FUEL FLOW DIAGRAM

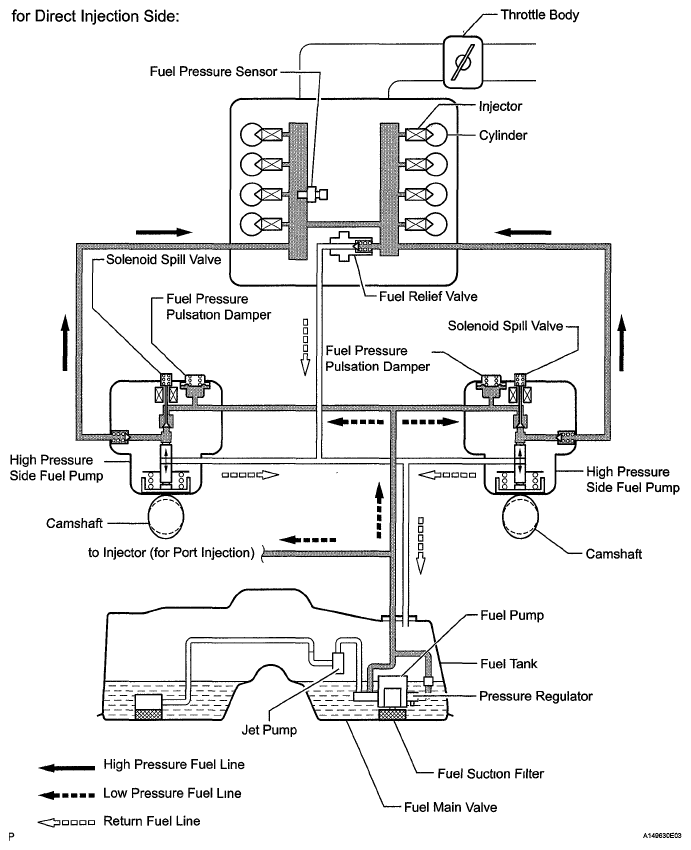

Fig 1: Fuel System Flow Diagram (For Direct Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel System Flow Diagram (For Port Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

Fig 3: Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

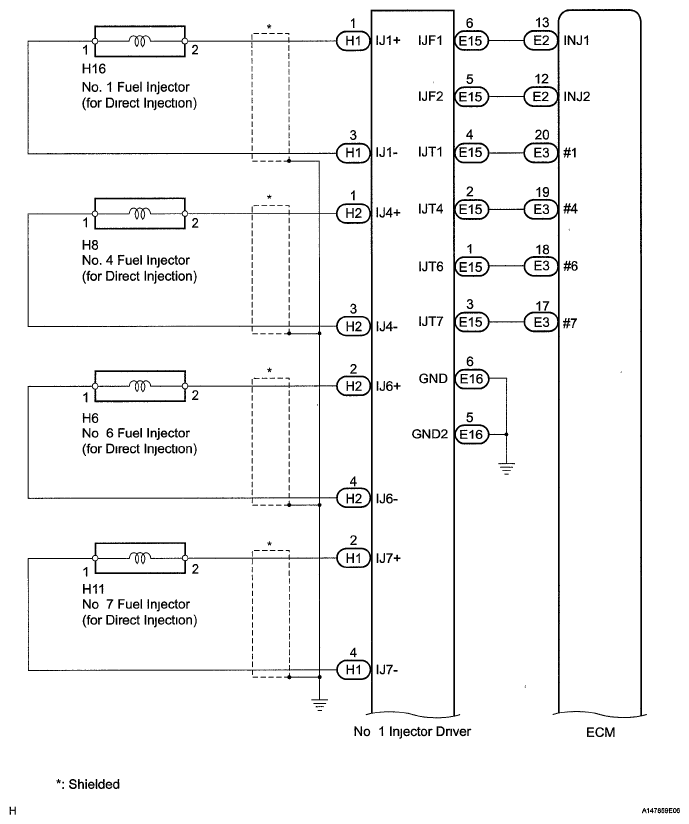

Fig 4: High Pressure Side Fuel System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

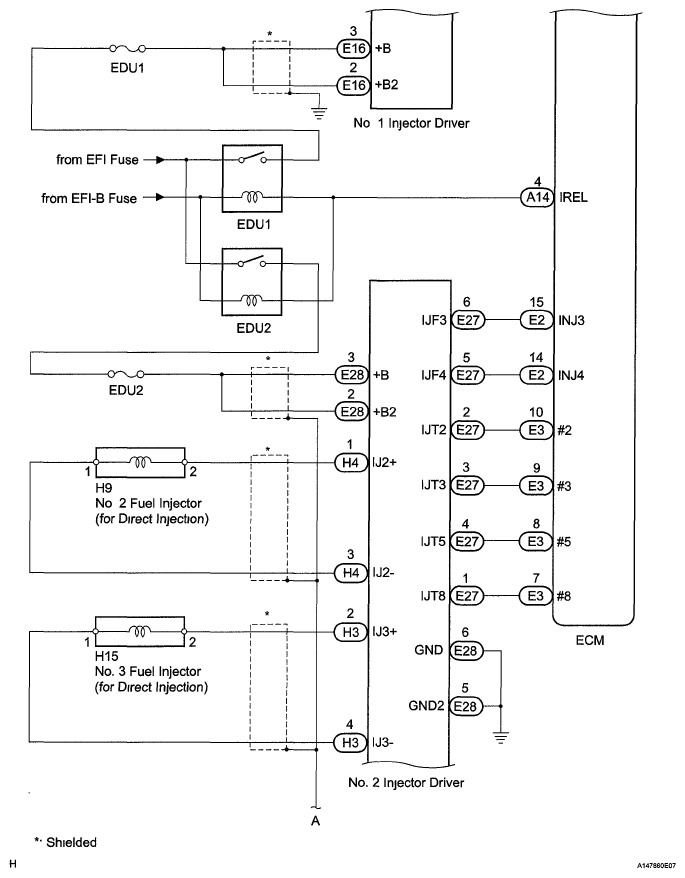

Fig 5: High Pressure Side Fuel System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

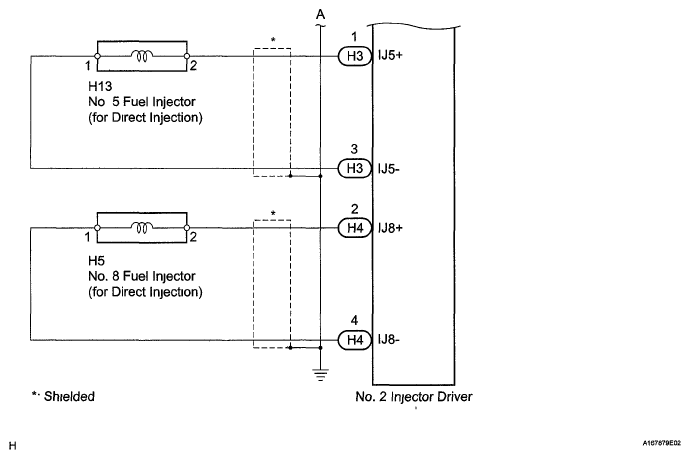

Fig 6: High Pressure Side Fuel System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

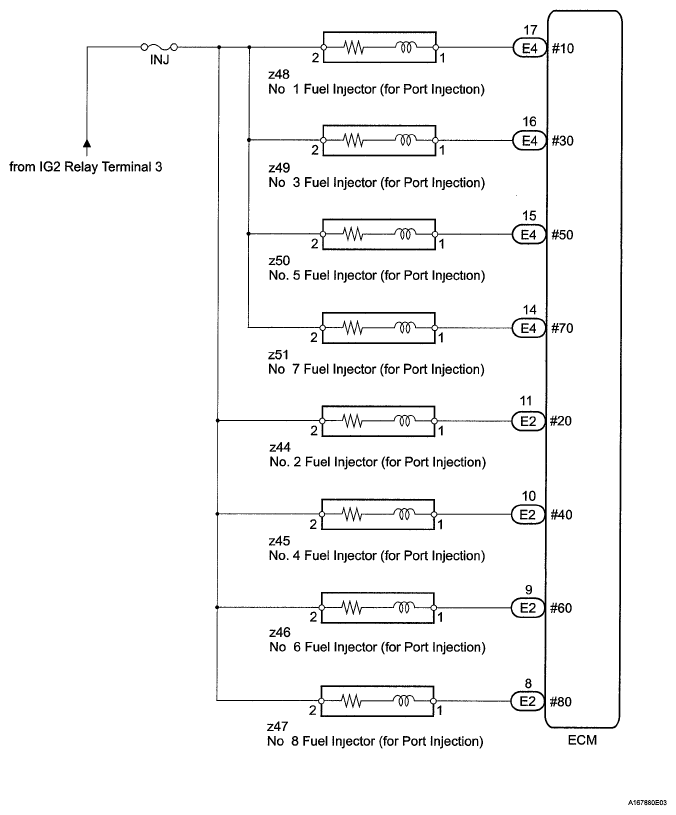

Fig 7: Port Injection Side Fuel System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUEL PRESSURE SENSOR WIRING DIAGRAM

Fig 8: Fuel Pressure Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

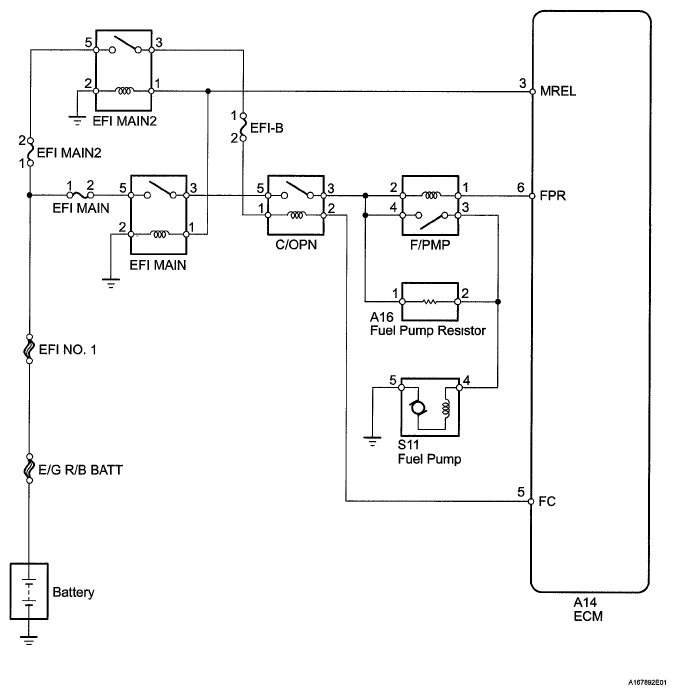

Fig 9: Low Pressure Side Fuel System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INJECTOR DRIVER WIRING DIAGRAM

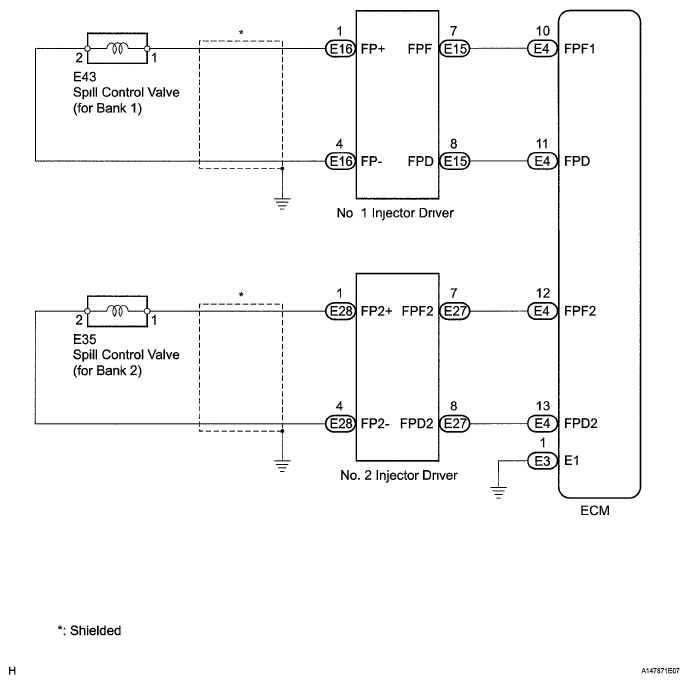

Fig 10: Injector Driver Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

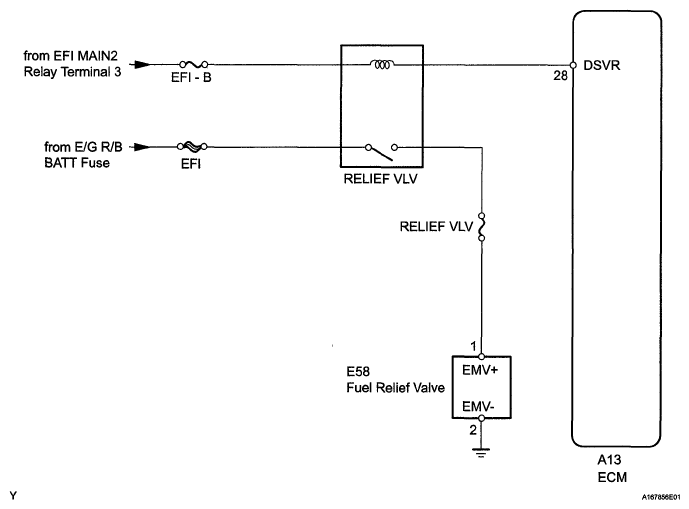

FUEL RELIEF VALVE

Fig 11: Fuel Relief Valve - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
