Fuel Tank: Components

Fig 1: Identifying Fuel Tank Components (1 Of 5)
G05771550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 5)
G05773036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

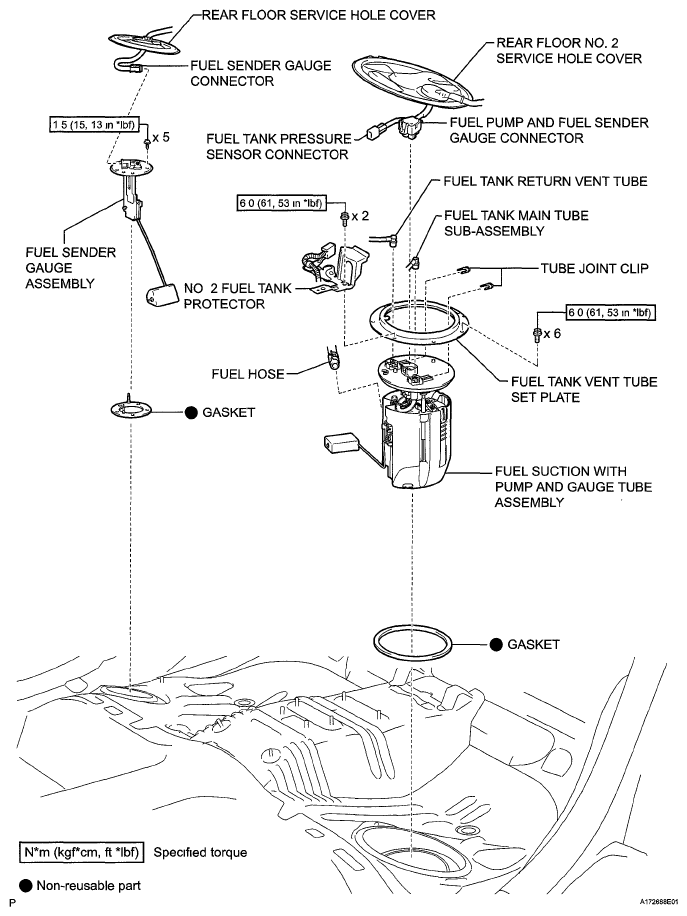

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 5)
G05773037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Fuel Tank Replacement Components With Torque Specifications (4 Of 5)
G05773038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

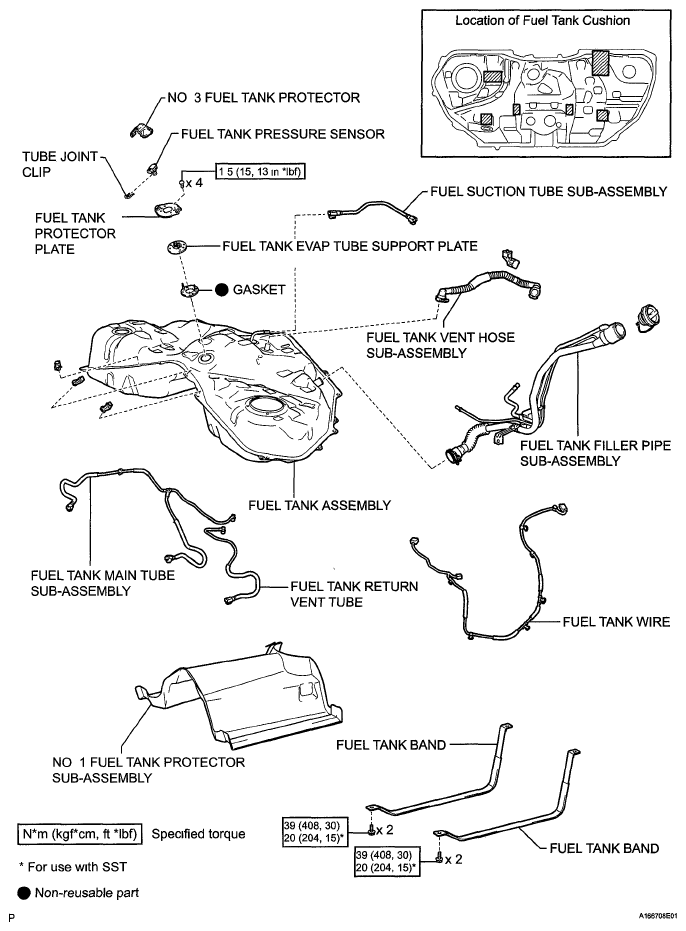

Fig 5: Fuel Tank Replacement Components With Torque Specifications (5 Of 5)
G05773039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
