Injector Driver: Components

Fig 1: Identifying Injector Driver Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

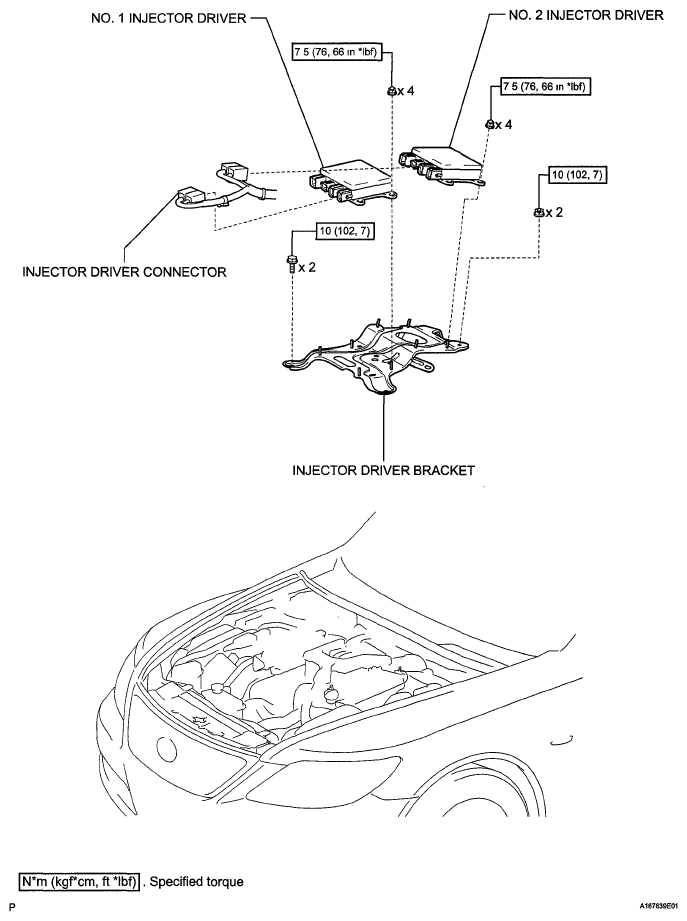

Fig 2: Injector Driver Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

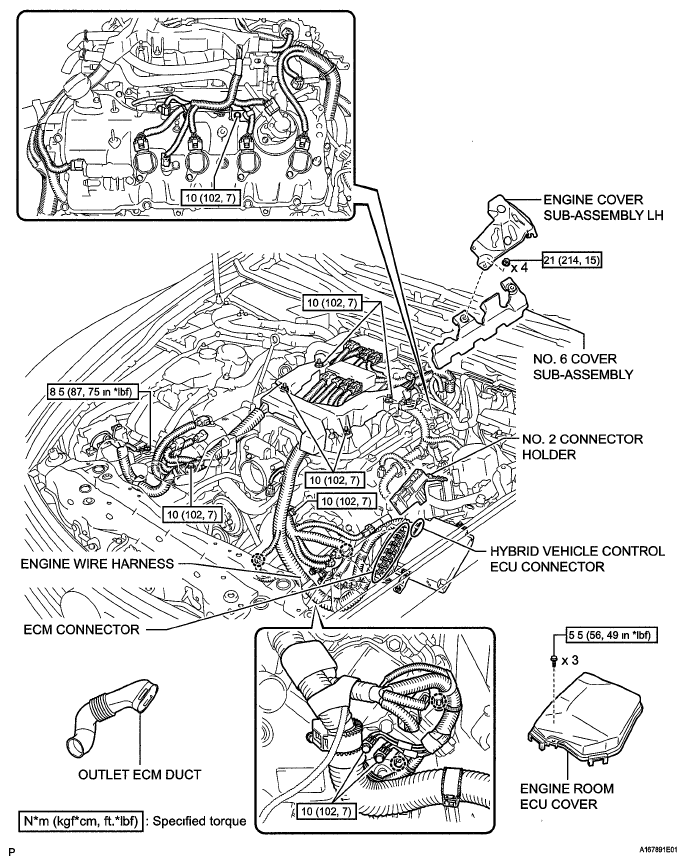

Fig 3: Injector Driver Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Injector Driver Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Injector Driver Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Injector Driver Replacement Components With Torque Specifications (6 Of 6)
