Ignition Coil And Spark Plug: Components

Fig 1: Identifying Ignition Coil And Spark Plug Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Ignition Coil And Spark Plug Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

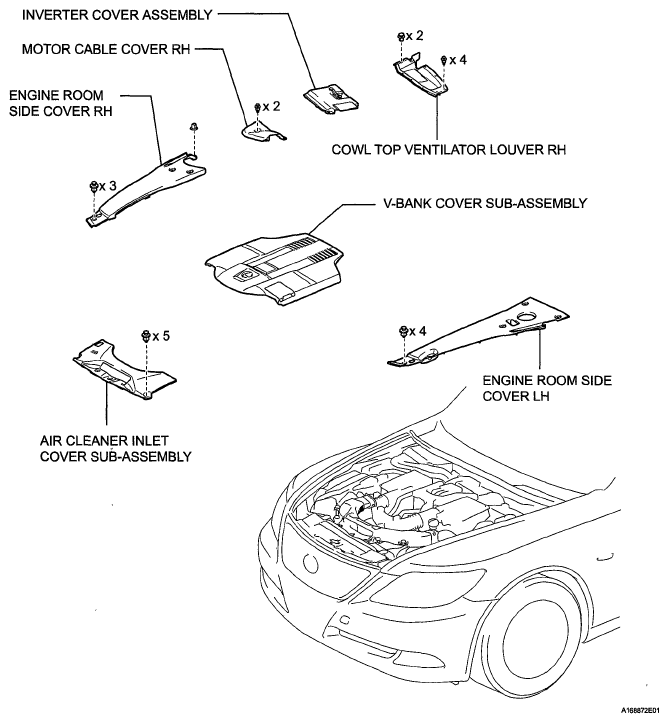

Fig 4: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (4 Of 6)

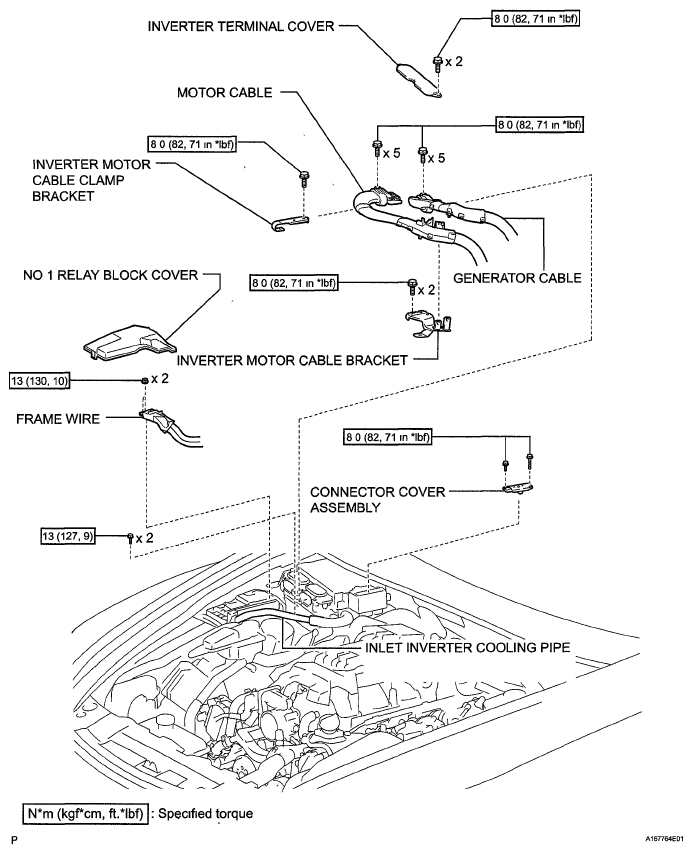

Fig 5: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (5 Of 6)

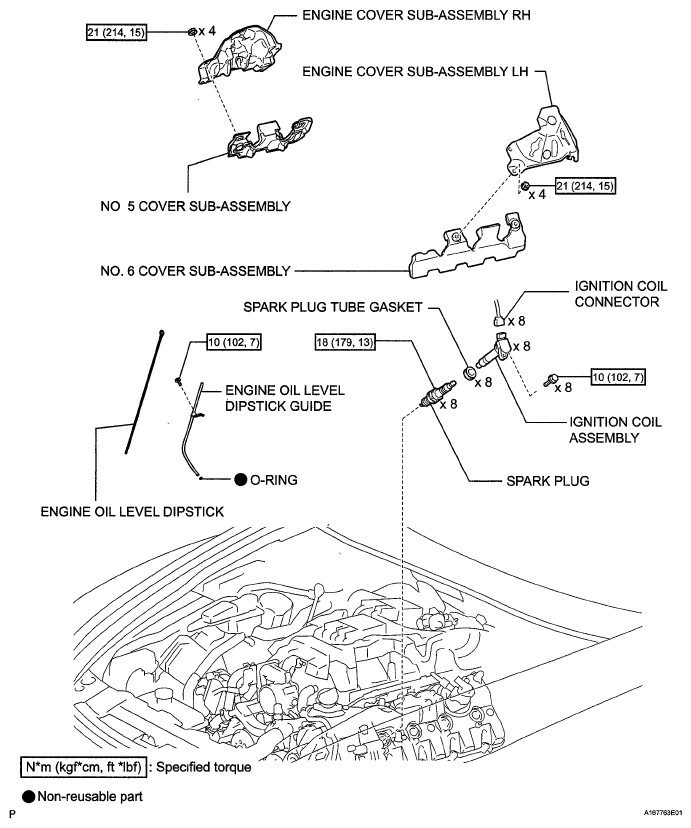

Fig 6: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (6 Of 6)
