Service Plug Grip: Installation

INSTALL SERVICE PLUG GRIP
CAUTION: Wear insulated gloves.
1. Wear insulated gloves and insert the service plug grip in the order shown in the illustration.

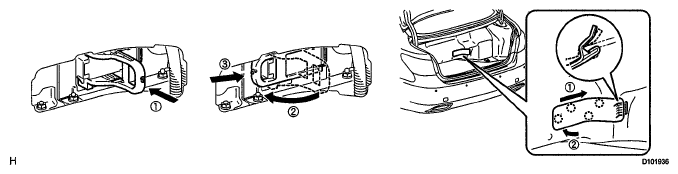

  Fig 1: Installing Service Plug Grip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tilt the service plug grip 90° and slide it down until a click sound is heard.
INSTALL BATTERY SERVICE HOLE COVER
1. Install the battery service hole cover.
  NOTE: Make sure that the battery service hole cover is installed securely.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
INSTALL BATTERY SERVICE HOLE COVER (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See INSTALLATION )
