Fail-Safe Chart

  1. POWER WINDOW OPERATION IN FAIL-SAFE MODE

    HINT:

    If the pulse sensor built into the power window regulator motor malfunctions, the power window control system enters fail-safe mode.

    1. The pulse sensor for the jam protection function has problems and the window position or the learned value is abnormal.

      HINT:

      The power window control system prohibits the following power window operations when the pulse sensor for the jam protection function has problems and the window position or the learned value is abnormal.

      Multiplex Network Master Switch

      POWER WINDOW OPERATION CHART

      Power Window Operation Condition
      Engine Switch on (IG) Engine Switch off (Key-off operation permitted) Engine Switch off (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦*1 X -
      Auto up (Driver side door window) (hold switch at auto up position) ◦*2 X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation) (hold switch at auto up position) X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -
      Door key interlock - X X
      Wireless interlock - X X
      Smart interlock - X X
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection not operative
      *2: In manual mode and jam protection not operative

      Power Window Regulator Switch (for Front Passenger Side, Rear LH and Rear RH)

      POWER WINDOW OPERATION CHART

      Power Window Operation Condition
      Engine Switch on (IG) Engine Switch off (Key-off operation permitted) Engine Switch off (Key-off operation prohibited)
      Manual up X X -
      Manual down ◦*1 X -
      Auto up (hold switch at auto up position) ◦*2 X -
      Auto up X X -
      Auto down X X -
      Door key interlock - X X
      Wireless interlock - X X
      Smart interlock - X X
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection not operative
      *2: In manual mode and jam protection not operative
      1. Power window switch LED control

        HINT:

        During normal operation (fail-safe is not operating), or during fail-safe mode when there is a pulse sensor malfunction or the window position or learned value is abnormal, the LED illuminates as shown in the illustration.

        1. for driver side.

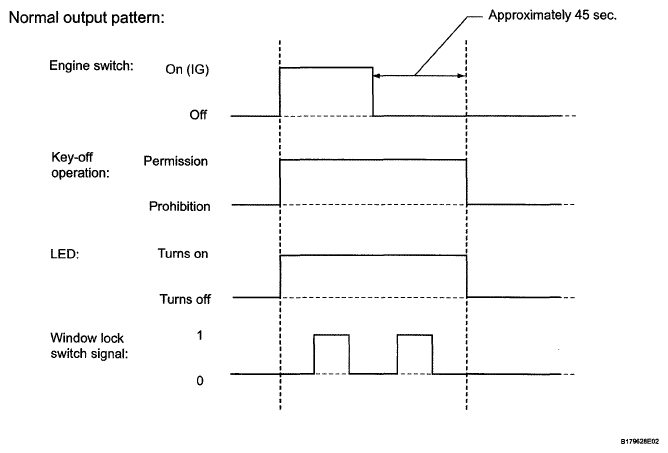

          Fig 1: Normal Output Pattern For Driver Side
          G05636295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        2. for front passenger side, rear LH and rear RH:

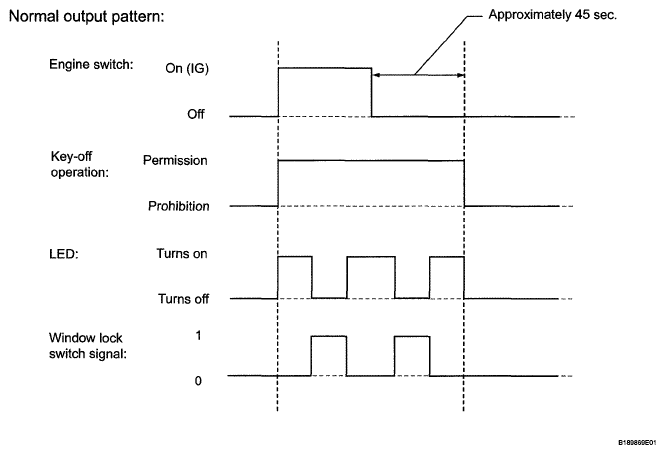

          Fig 2: Normal Output Pattern For Front Passenger Side, Rear LH & Rear RH
          G05636296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Fail-safe Deactivation Condition

        When the pulse sensor is normal, to deactivate fail-safe mode, pull up the power window switch to the auto up position and hold it for at least 1 second to fully close the window from the fully open position. As a result, the auto up/down function will return.

    2. Initialization failure

      HINT:

      During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM, the power window control system prohibits the following operations.

      Multiplex Network Master Switch

      POWER WINDOW OPERATION CHART

      Power Window Operation Condition
      Engine Switch on (IG) Engine Switch off (Key-off operation permitted) Engine Switch off (Key-off operation prohibited)
      Manual up (Driver side door window) X X -
      Manual down (Driver side door window) ◦*1 X -
      Auto up (Driver side door window) (hold switch at auto up position) ◦*2 X -
      Auto up (Driver side door window) X X -
      Auto down (Driver side door window) X X -
      Manual up (Remote switch operation) X X -
      Manual down (Remote switch operation) X X -
      Auto up (Remote switch operation) (hold switch at auto up position) X X -
      Auto up (Remote switch operation) X X -
      Auto down (Remote switch operation) X X -
      Door key interlock - X X
      Wireless interlock - X X
      Smart interlock - X X
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection not operative
      *2: In manual mode and jam protection not operative

      Power Window Regulator Switch (for Front Passenger Side, Rear LH and Rear RH)

      POWER WINDOW OPERATION CHART

      Power Window Operation Condition
      Engine Switch on (IG) Engine Switch off (Key-off operation permitted) Engine Switch off (Key-off operation prohibited)
      Manual up X X -
      Manual down ◦*1 X -
      Auto up (hold switch at auto up position) ◦*2 X -
      Auto up X X -
      Auto down X X -
      Door key interlock - X X
      Wireless interlock - X X
      Smart interlock - X X
      HINT.
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection not operative
      *2. In manual mode and jam protection not operative
      1. Power window switch LED control

        HINT:

        During initialization of the power window regulator motor ECU, when the window position or initialization complete status cannot be properly read from the EEPROM during fail-safe mode, the LED illuminates as shown in the illustration.

        1. for driver side:

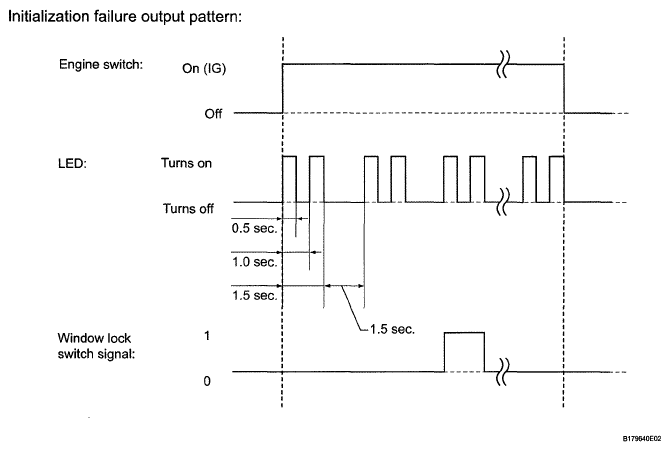

          Fig 3: Initialization Failure Output Pattern For Driver Side
          G05636297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        2. for front passenger side, rear LH and rear RH:

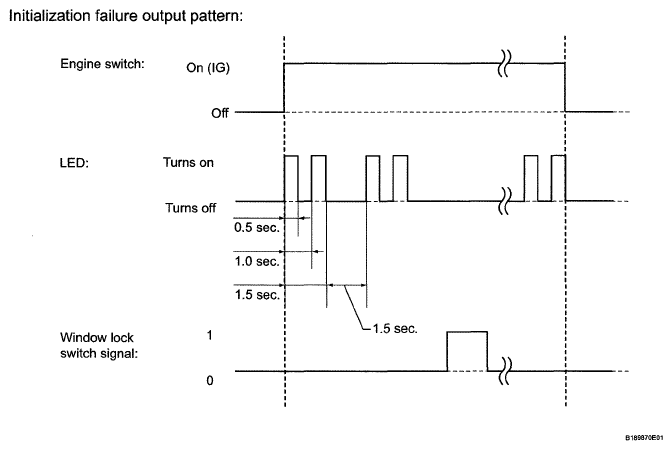

          Fig 4: Initialization Failure Output Pattern For Front Passenger Side, Rear LH & Rear RH
          G05636298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. LIN communication failure

      HINT:

      If the LIN communication line malfunctions (communication stop), the power window control system prohibits the following operations.

      Multiplex Network Master Switch

      POWER WINDOW OPERATION CHART

      Power Window Operation Engine Switch on (IG)
      Manual up ◦*1
      Manual down ◦*2
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection operative
      *2: Jam protection not operative

      Remote up/down function does not operate.

      Power Window Regulator Switch (for Front Passenger Side, Rear LH and Rear RH)

      POWER WINDOW OPERATION CHART

      Power Window Operation Engine Switch on (IG)
      Manual up ◦*1
      Manual down ◦*2
      Auto up (hold switch at auto up position) ◦*1
      Auto up ◦*1
      Auto down ◦*2
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection operative
      *2: Jam protection not operative
    4. LIN communication failure and pulse sensor failure

      HINT:

      If the LIN communication line malfunctions (communication stop) and the pulse sensor for the jam protection function has problems, the power window control system prohibits the following operations.

      Multiplex Network Master Switch

      POWER WINDOW OPERATION CHART

      Power Window Operation Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X
      HINT:
      • ◦: Operative
      • X: Operation prohibited
      • Driver side door window: When there is no jam protection control due to a LIN communication failure, the manual up and auto up functions will not operate.
      • Remote switch operation: Not operative during LIN communication failure.

      Power Window Regulator Switch (for Front Passenger Side, Rear LH and Rear RH)

      POWER WINDOW OPERATION CHART

      Power Window Operation Always
      Manual up X
      Manual down X
      Auto up (hold switch at auto up position) X
      Auto up X
      Auto down X
      HINT:
      ◦: Operative
      X: Operation prohibited
    5. LIN communication failure and displacement of non-detection range in direction window opens or initialization failure

      HINT

      If the LIN communication line malfunctions (communication stop) and the window position or the learned value is abnormal, the power window control system prohibits the following operations.

      Multiplex Network Master Switch

      POWER WINDOW OPERATION CHART

      Power Window Operation Always
      Manual up ◦*1
      Manual down ◦*2
      Auto up (hold switch at auto up position) -
      Auto up -
      Auto down -
      HINT:
      • ◦: Operative
      • *1: Jam protection operative and window reverses direction upon reaching the fully closed position
      • *2: Jam protection not operative
      • Remote switch operation: Operation is not possible during a LIN communication failure.

      Power Window Regulator Switch (for Front Passenger Side, Rear LH and Rear RH)

      POWER WINDOW OPERATION CHART

      Power Window Operation Always
      Manual up ◦*1
      Manual down ◦*2
      Auto up (hold switch at auto up position) ◦*1
      Auto up X
      Auto down X
      HINT:
      ◦: Operative
      X: Operation prohibited
      *1: Jam protection operative and window reverses direction upon reaching the fully closed position
      *2: Jam protection not operative
