INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)

Measure the resistance according to the value(s) in the table below.

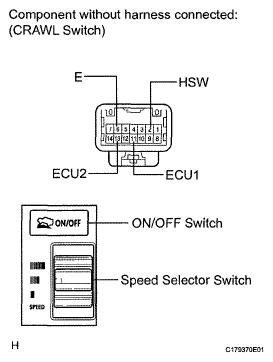

Fig 1: Identifying Locating Integration Control And Panel Assembly Connector Terminals (CRAWL Switch)

G05761731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
11 (ECU1) - 6 (E)	Speed selector switch: MID	10 kΩ or higher
	Speed selector switch: HI	10 kΩ or higher
	Speed selector switch: LO	Below 1 Ω
13 (ECU2) - 6 (E)	Speed selector switch: MID	10 kΩ or higher
	Speed selector switch: HI	Below 1 Ω
	Speed selector switch: LO	Below 1 Ω
2 (HSW) - 6 (E)	ON/OFF switch: Pressed	Below 1 Ω
2 (HSW) - 6 (E)	ON/OFF switch: Not pressed	10 kΩ or higher

If the result is not as specified, replace the integration control and panel assembly (CRAWL switch).
