Yaw Rate And Deceleration Sensor: Components

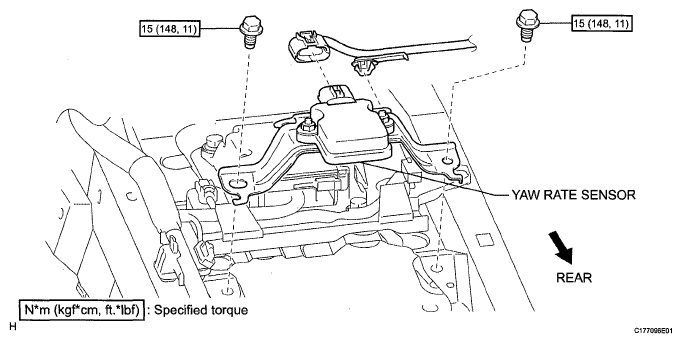

Fig 1: Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications
G05629984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
