Camshaft Position Sensor: Components

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 2)
G05757841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

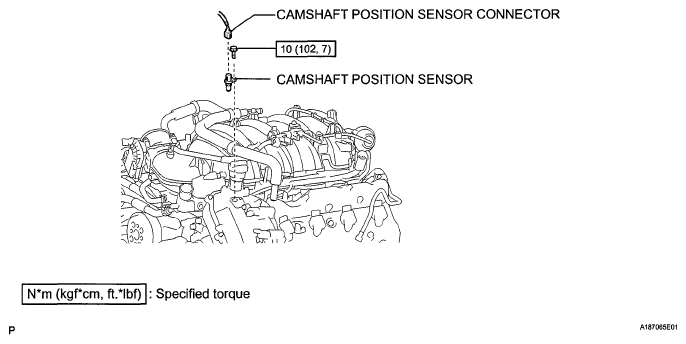

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 3)
G05757882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

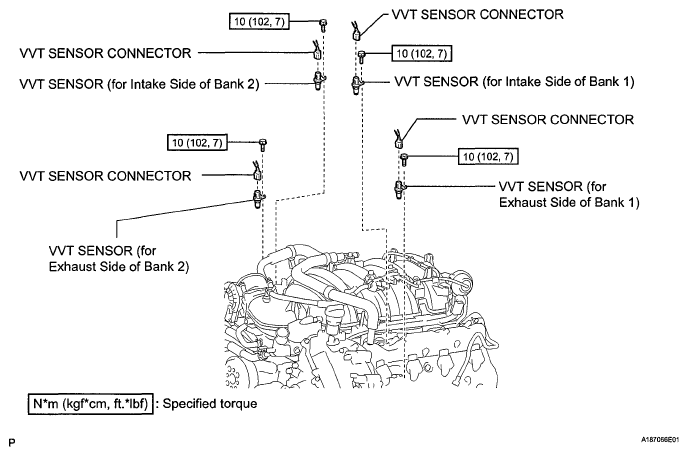

Fig 3: Camshaft Position Sensor Replacement Components With Torque Specifications (3 Of 3)
G05757883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
