Ignition Coil And Spark Plug: Components

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specification (1 Of 3)
G05757893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 3)
G05757894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

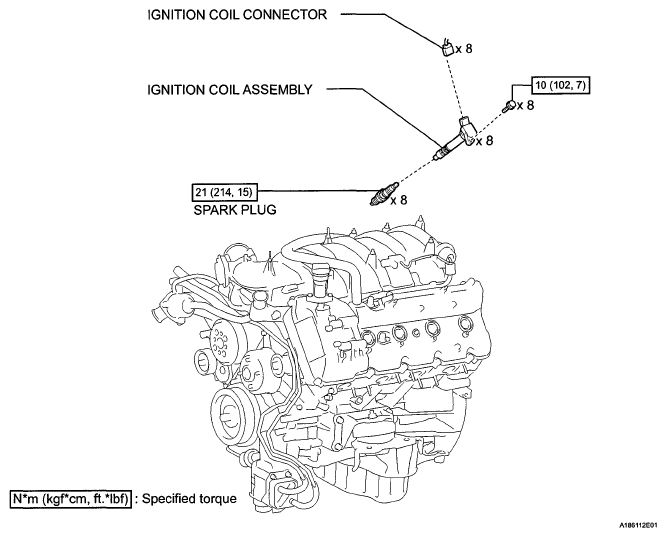

Fig 3: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 3)
G05757895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
