System Diagram

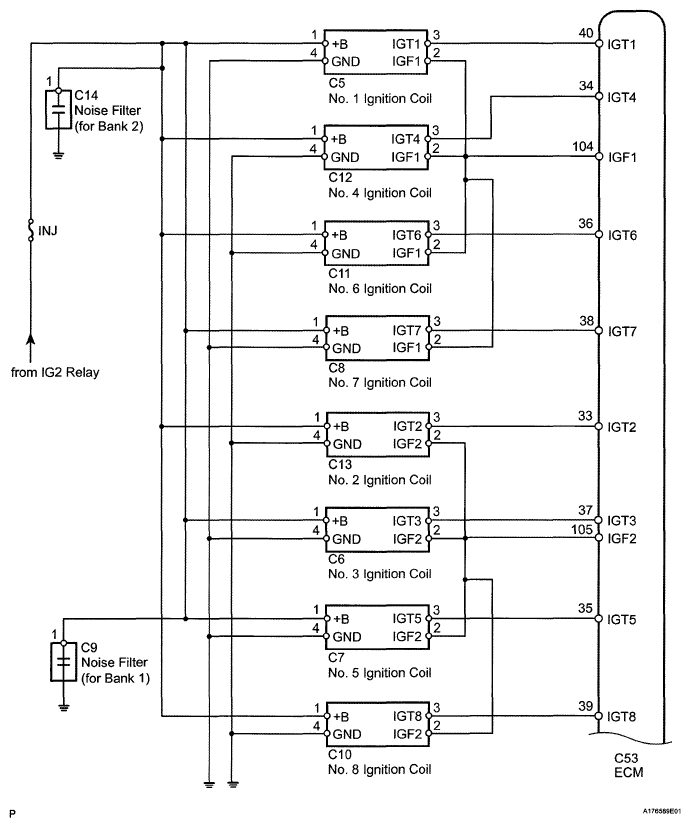

Fig 1: Ignition System Diagram (1 Of 2)
G05628200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

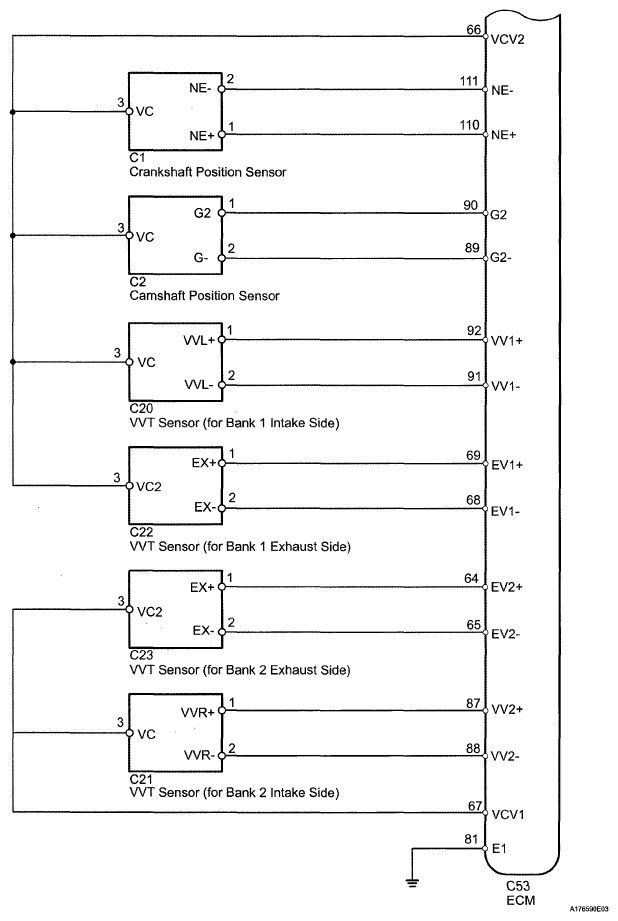

Fig 2: Ignition System Diagram (2 Of 2)
G05628201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
