Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      NOTE: The acceptable installation angle of the sensor is between 10° upward and downward from the horizontal position.
    2. Connect the 4 sensor connectors.
  2. INSTALL NO. 1 ENGINE COVER  (See INSTALLATION )
  3. INSTALL NO. 2 ENGINE COVER  (See INSTALLATION )
  4. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (See INSTALLATION ).

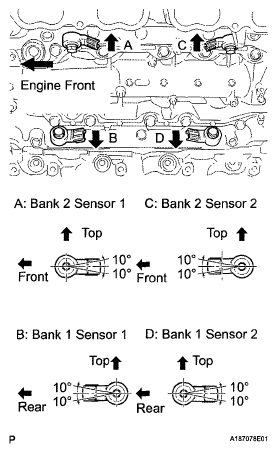

    Fig 1: Locating Knock Sensor And Bolts
    G05628277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
