Throttle Body: Installation

INSTALL THROTTLE BODY ASSEMBLY
1. Install the 2 water by-pass hoses to the throttle body.
2. Install a new gasket to the intake air surge tank.
  HINT:

  Align the protrusion of the gasket with the groove of the intake air surge tank.

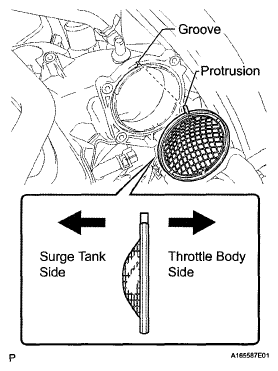

  Fig 1: Identifying Intake Air Surge Tank Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the throttle body with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  Fig 2: Locating Water By-Pass Hoses And Throttle Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the throttle position sensor and control motor connector.
5. Connect the 2 water by-pass hoses.
INSTALL AIR CLEANER HOSE ASSEMBLY (See INSTALLATION )
ADD ENGINE COOLANT (See REPLACEMENT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
CHECK THROTTLE BODY ASSEMBLY (See ON-VEHICLE INSPECTION )

Fig 3: Locating Water By-Pass Hoses And Control Motor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL UPPER RADIATOR SUPPORT SEAL (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
