Customize Parameters
HINT:
The following items can be customized.
NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
- CUSTOMIZING FUNCTION WITH TECHSTREAM
- POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Tilt & Telesco
CUSTOMIZE PARAMETERS (TILT & TELESCO)Display Default Contents Setting Autoaway/Return function ON Turn the auto away/return function ON/OFF ON/OFF - INTUITIVE PARKING ASSIST SYSTEM
Warning
CUSTOMIZE PARAMETERS (WARNING)Display Default Contents Setting Rr Sensor Onset Range Wide Sets the buzzer activation range for the rear sensors. Narrow or Wide Keep Sense Buzzer Avail Makes the buzzer sound when the distance between the vehicle and obstacle does not change for more than 3 seconds. Not Avail or Avail Fr & Rr Buzzer Volume H Changes the buzzer volume setting. L, M1, M2, M3 or H Sensor
CUSTOMIZE PARAMETERS (SENSOR)Display Default Contents Setting Sensor Condition N Avail Makes the sensors available when the shift lever is in N. Not Avail or Avail Reverse Range Front Sensor F Changes the operation setting for the vehicle front sensors when the shift lever is in R. F or F Stop Non P/R Range Rear Sensor R Stop Changes the operation setting for the vehicle rear sensors when the shift lever is not in P or R. R, Rcrn or R Stop Display
CUSTOMIZE PARAMETERS (DISPLAY)Display Default Contents Setting Approach Display OFF Avail The display when moving away from a previously detected obstacle. Not Avail or Avail Display Mode All The display mode setting (when the intuitive parking assist system is normal). All or Undisp - POWER DOOR LOCK CONTROL SYSTEM
Door Lock
CUSTOMIZE PARAMETERS (DOOR LOCK)Display Default Contents Setting Unlock Key Twice ON Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For the OFF setting, turning it once unlocks all doors. ON/OFF Auto Lock OFF Function that locks all doors when the vehicle speed reaches a certain level. ON/OFF Auto Lock/Shift ON Function that locks all doors when the shift lever is moved from P to any position other than P while the engine running and all doors are closed. ON/OFF Auto Unlock/Shift ON Function that unlocks all doors when the shift lever is moved to P from any position other than P while the engine switch is on (IG). ON/OFF All Unlock/Open-Close OFF Function that unlocks the other doors when the driver side door is opened within 10 seconds after the engine switch is turned off ON/OFF - WIRELESS DOOR LOCK CONTROL SYSTEM
Wireless Door Lock
CUSTOMIZE PARAMETERS (WIRELESS DOOR LOCK)Display Default Contents Setting Hazard Answer Back ON When the lock switch on the transmitter is pressed, this function illuminates the hazard warning lights once. When the unlock switch is pressed, the hazard warning lights illuminate twice. ON/OFF Wireless Control ON Function that turns the wireless door lock function on or off. ON/OFF Open Door Warning ON If a door is not completely closed and the transmitter lock switch is pressed, this function makes the buzzer sound for 10 seconds. ON/OFF Panic Alarm Function ON Function to operate the theft deterrent system by continuously pressing the panic switch on transmitter for 1 second or more. ON/OFF Unlock 2 Operation ON Function that unlocks the driver side door when the unlock switch on the transmitter is pressed once, and unlocks all doors when the switch is pressed twice. If the setting is OFF, pressing the unlock switch once makes all the doors unlock. ON / OFF Auto Lock Time 60s Function to change the time until relocking after unlocking with the wireless door lock function. 30 s/60 s/120 s Wireless Auto Lock ON Function to control the automatic relocking of doors after unlocking with the wireless door lock function ON/OFF Wireless Buzzer Volume Level 7 This function changes the wireless buzzer volume. Level 0/Level 1/Level 2/Level 3/Level 4/Level 5/Level 6/Level 7 PSD&PBD Operation (w/ Power Back Door System)
CUSTOMIZE PARAMETERS (PSD & PBD OPERATION (W/ POWER BACK DOOR SYSTEM))Display Default Contents Setting PBD One Motion ON Function to turn on/off the power back door wireless one motion open operation. ON/OFF Wireless PBD SW Operation 0 8s Function to change the way the power back door is operated by the back door switch 1 time/2 times/0.8s/OFF - SMART ACCESS WITH PUSH-BUTTON START (for Entry Function)
Smart Key / Access
CUSTOMIZE PARAMETERS (SMART KEY/ACCESS)Display Default Contents Setting Park Wait Time*1 2.5s Function that sets the waiting time to permit unlocking the door after the door is locked with the entry lock function. 0.5s/1.5s/2.5s/5s Ignition Area*2 ALL Function to choose the available area for the key to start the engine and cancel the steering lock. FRONT/ALL*3 Back Door Opening Operation*4 LONG The back door opening operation. LONG/TWICE/OFF Key Low Battery Warning*5 ON Function that warns the driver that the key battery power is low. ON/OFF HINT:
*1: Waiting time to permit unlocking door after locking.
*2: Entry ignition available area.
*3: "FRONT" means front, and "ALL" means front floor, rear floor and luggage compartment.
*4: Back door open mode when vehicle is locked.
*5: Warn when key battery becomes weak. - ENTRY UNLOCK MODE SWITCHING FUNCTION
- To use the entry unlock mode switching function, make sure the engine switch is off and simultaneously press and hold the lock switch on the key and another key switch for 5 seconds. When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
- Driver door unlock mode (default): When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
- All door unlock mode:
When a touch sensor is touched, all doors unlock.
- The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart access system with push-button start to the entry unlock mode.
- The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.
HINT:
The function only changes the entry unlock mode of the smart access system with pushbutton start. It does not switch the unlocking of the wireless door lock control.

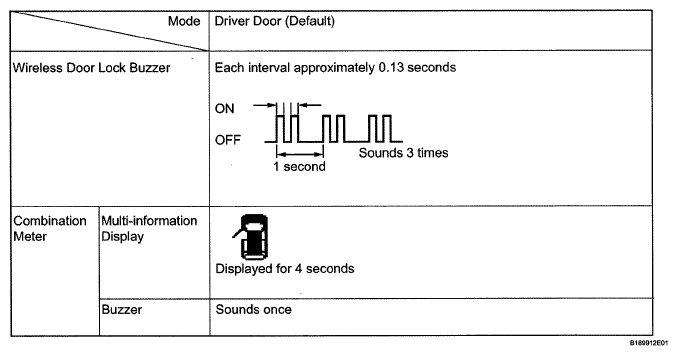

- Driver door unlock mode:

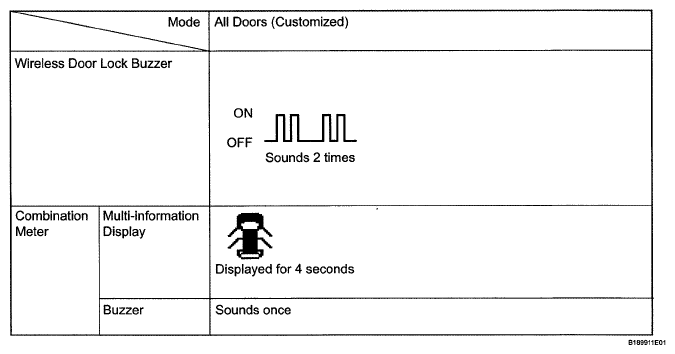

- All door unlock mode:
- To use the entry unlock mode switching function, make sure the engine switch is off and simultaneously press and hold the lock switch on the key and another key switch for 5 seconds. When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.
- SMART ACCESS WITH PUSH-BUTTON START (for Start Function)
Smart Key / Access
CUSTOMIZE PARAMETERS (SMART KEY/ACCESS)Display Default Content Setting Ignition Available Area All Function to choose the available area for the key to start the engine and cancel the steering lock. Front/All - THEFT DETERRENT SYSTEM
Security
CUSTOMIZE PARAMETERS (SECURITY)Display Default Contents Setting Passive Mode (Security System) OFF Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed.
In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened:- Unlock any door by key or wireless operation
- Turn engine switch on (IG)
ON/OFF Warning by Horn ON Function that allows vehicle horns and security horn to be used as warning device. ON/OFF Entry Delay Time 14s Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE. 0 s/14 s/30 s - METER AND GAUGE SYSTEM
Warning
CUSTOMIZE PARAMETERS (WARNING)Display Default Contents Setting Driver Side Seatbelt Warning Buzzer ON To change the seat belt warning buzzer. ON / OFF Front Passenger Side Seatbelt Warning Buzzer ON To change the seat belt warning buzzer. ON / OFF Unit Conversion
CUSTOMIZE PARAMETERS (UNIT CONVERSION)Display Default Contents Setting Units By Region Different for each vehicle To change the units of the display. Km/I JP / Km/I / Ml/g US / Ml/g UK Display
CUSTOMIZE PARAMETERS (DISPLAY)Display Default Contents Setting Language None To change the language of the display. Eng US / Eng UK / French / German / Spanish / Italian / Japanes / CHN Sim / CHN Trd - SEAT BELT WARNING SYSTEM
Seat Belt Warning
CUSTOMIZE PARAMETERS (SEAT BELT WARNING)Display Default Contents Setting Driver Side Seatbelt Warning Buzzer ON If the driver side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer. ON/OFF Front Passenger Side Seatbelt Warning Buzzer ON If the front passenger side seat belt is unfastened and the vehicle is driven at approximately 20 km/h (12.5 mph) or more, this system sounds the seat belt warning buzzer. ON/OFF - AIR CONDITIONING SYSTEM
Air Conditioner
CUSTOMIZE PARAMETERS (AIR CONDITIONER)Display Default Contents Setting Set Temperature Shift Normal Function to set the temperature shift. +2 C/+1 C/Normal/-1 C/-2 C Evaporator Control Automatic Function to set the evaporator control to the automatic position (Automatic) to save power, or to the coldest position (Manual) to dehumidify the air and to prevent the windows from fogging up. Manual/Automatic Compressor/Air Inlet DEF operation Link Function to automatically turn the A/C on when the front defroster button is pressed. Normal/Link Compressor Mode Automatic Function to turn the A/C on automatically by pressing the AUTO button when the blower is on and the A/C is off. Manual/Automatic Air Inlet Mode Automatic Function to automatically change to recirculation mode when the A/C is turned on Manual/Automatic Foot/DEF Auto Mode ON Function to turn on the airflow from the front and rear footwell register ducts and center and side defrosters automatically when auto mode is on. ON/OFF Foot/DEF Automatic Blow Up Function ON Function to change the blower level automatically when the defroster is on. ON/OFF Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature. +3 C/+2 C/+1 C/Normal/-1 C/-2 C/-3C Button Press Buzzer ON Function to sound a buzzer when a button is pressed. ON/OFF Emission Gas Sensor Shift Normal Function to change the sensitivity of the exhaust gas sensor. Much More/More/Little More/Normal/Little Less/Less/Much Less - POWER WINDOW CONTROL SYSTEM
Power Window
CUSTOMIZE PARAMETERS (POWER WINDOW)Display Default Contents Setting Door Key P/W Up ON Function that raises all the power windows when, with the engine switch off, a key is used to hold the driver door key cylinder to the lock position for more than 2.3 sec. ON/OFF Door Key P/W Down ON Function that lowers all the power windows when, with the engine switch off, a key is used to hold driver door key cylinder to the unlock position for more than 2.3 sec. ON/OFF P/W Down W/ Transmit ON Function that lowers all the power windows when, with the engine switch off, the unlock switch on the transmitter is pressed and held for more than 3.0 sec. ON/OFF P/W Up W/ Smart ON Function that raises all the power windows when, with the engine switch off, the entry lock switch on the driver side door outside handle is pressed and held for more than 3.0 sec. ON/OFF - SLIDING ROOF SYSTEM
Slide Roof
CUSTOMIZE PARAMETERS (SLIDE ROOF)Display Default Contents Setting Door Key Related Open ON The function to manually open the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off. ON/OFF Door Key Related Close ON The function to manually close the sliding roof linked with the power window if holding the driver side door key for 3 seconds or more to lock position when the engine switch is off. ON/OFF Wireless Key Related Open ON The function to manually open the sliding roof linked with the power window if pressing the transmitter unlock switch for 3 seconds or more when the engine switch is off. ON/OFF Door Handle Lock Button ON The function to manually close the sliding roof linked with the power window if pushing the door lock switch for 3 seconds or more when the engine switch is off and the key is outside vehicle. ON/OFF Door Key Related Operation Slide The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by holding the driver side door key for 3 seconds or more to unlock position when the engine switch is off. Tilt/Slide Wireless Key Related Operation Slide The function to select tilt up or slide open of manual sliding roof operation linked with the power window activated by pressing on the transmitter unlock switch for 3 seconds or more when the engine switch is off. Tilt/Slide - POWER BACK DOOR SYSTEM
PSD & PBD Operation
CUSTOMIZE PARAMETERS (PSD & PBD OPERATION)Display Default Contents Setting PBD Power Operation Valid Makes power back door function ON or OFF Valid/Invalid PBD SW Operation 0.8 s A function that turns the power back door closer switch on when the switch is pushed once or is held down for 0 8 sec. 0.8s/ON PBD Buzzer ON A function that makes the power back door buzzer sound when the power back door is operating. ON/OFF Wireless PBD Operation 0.8 s A function that operates the power back door when the transmitter switch is pressed in a specified way (1 time, 2 times, 0.8 sec. press, or off). 1 time/2 times/0.8 s/OFF - LIGHTING SYSTEM
Illuminated Entry

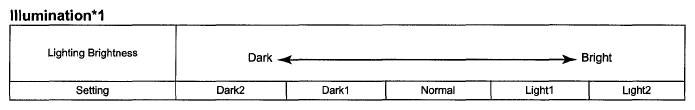

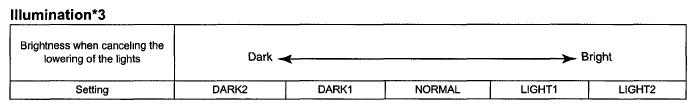

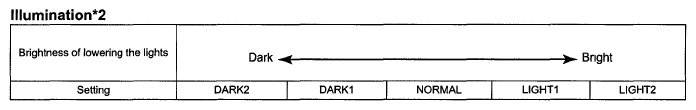

CUSTOMIZE PARAMETERS (ILLUMINATED ENTRY)Display Default Contents Setting I/L when ACC OFF ON Function to light the interior light when the engine switch is turned from on (IG) or on (ACC) to off. ON/OFF Lighting Time 15s Function to change the lighting time after closing the door. (It will quickly fade out in the case of turning the engine switch on (IG)). 7.5s/15s/30s Light Control ON Function to light up the door inside handle light when the engine switch is on (IG) and the shift lever is not in P. ON/OFF I/L ON W/Door Key Unlock ON Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch. ON/OFF Mirr-Foot-Lgt Approached ON Door mirror foot light (when approaching the vehicle). ON/OFF Mirr-Foot-Lgt Unlocked ON Door mirror foot light (when unlocking the doors). ON/OFF Mirr-Foot-Lgt w/Master SW ON Door mirror foot light (when manually unlocking the doors). ON/OFF Mirror Foot Light Time 15s Door mirror foot light illumination duration. 0s/7.5s/15s/30s Room Light when Aprchd ON Dome light illumination (when approaching the vehicle). ON/OFF Inside Foot Light ON Interior foot light illumination. ON/OFF Center Console Spot Light ON Center console spot light. ON/OFF Light Control
CUSTOMIZE PARAMETERS (LIGHT CONTROL)Display Default Contents Setting Light Auto OFF Delay 30s Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned from on (IG) to off under the condition that the light control switch is at head or AUTO with the headlight ON. OFF/30s/60s/90s Sensitivity NORMAL Function to adjust the sensitivity of the lighting illumination*1. Light2/Light1/Normal/Dark1 / Dark2 Disp Ex ON Sen NORMAL Changes the brightness when lowering the lights such as the combination meter indicator light, A/C indicator light, and clock light. Refer to the illumination*2. LIGHT2/LIGHT1/NORMAL/DARK1/DARK2 Disp Ex OFF Sen NORMAL Changes the brightness when canceling the lowering of the lights such as the combination meter indicator light, A/C indicator light, and clock light. Refer to the illummation*3. LIGHT2/LIGHT1/NORMAL7 DARK1/DARK2 DRL Function ON DRL control ON/OFF HINT:
The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle of the customer.
