Back Window Glass: Components

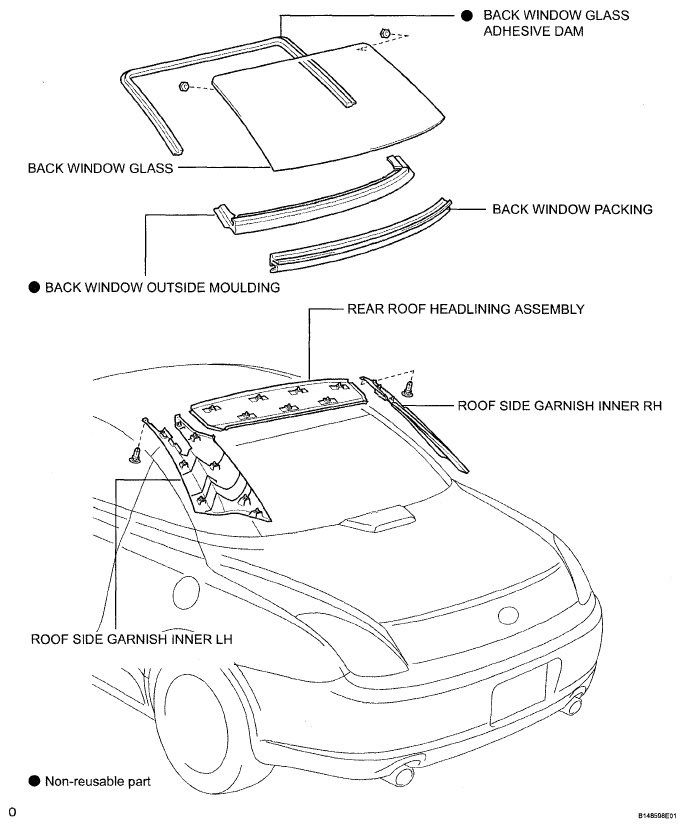

Fig 1: Identifying Back Window Glass Components
G05293483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
