Audio System: Notes

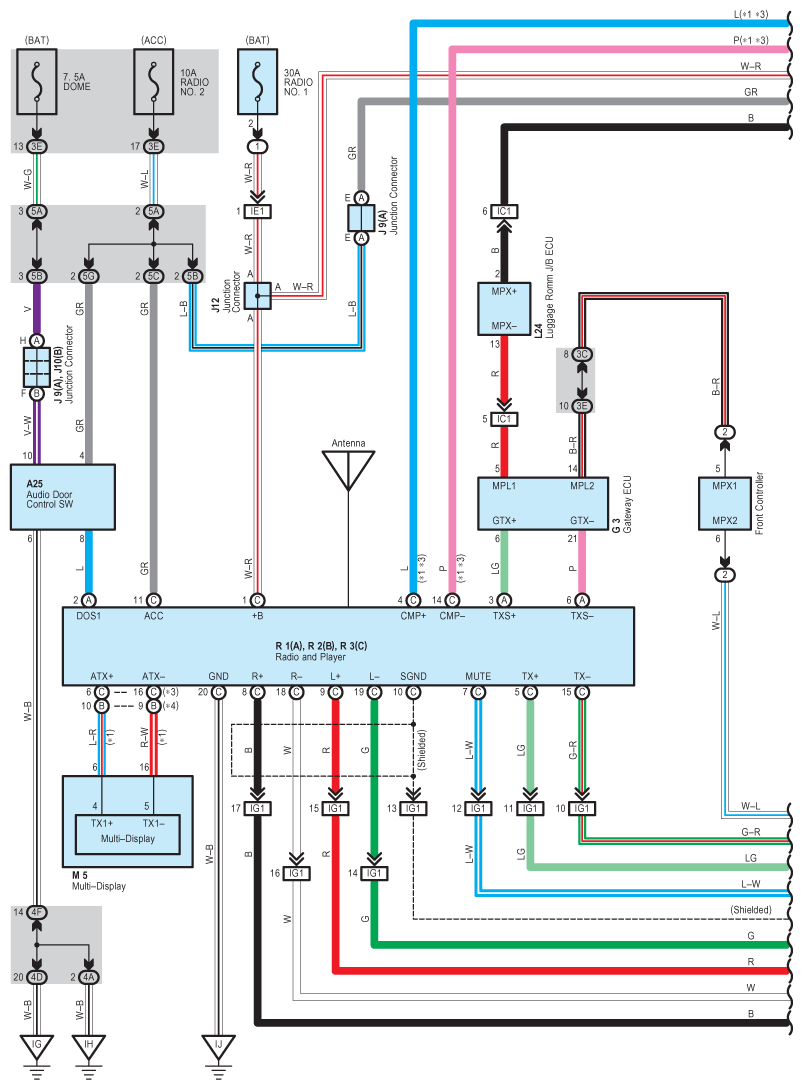

Fig 1: Audio System - Circuit Diagram (1 Of 3)
G07612084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

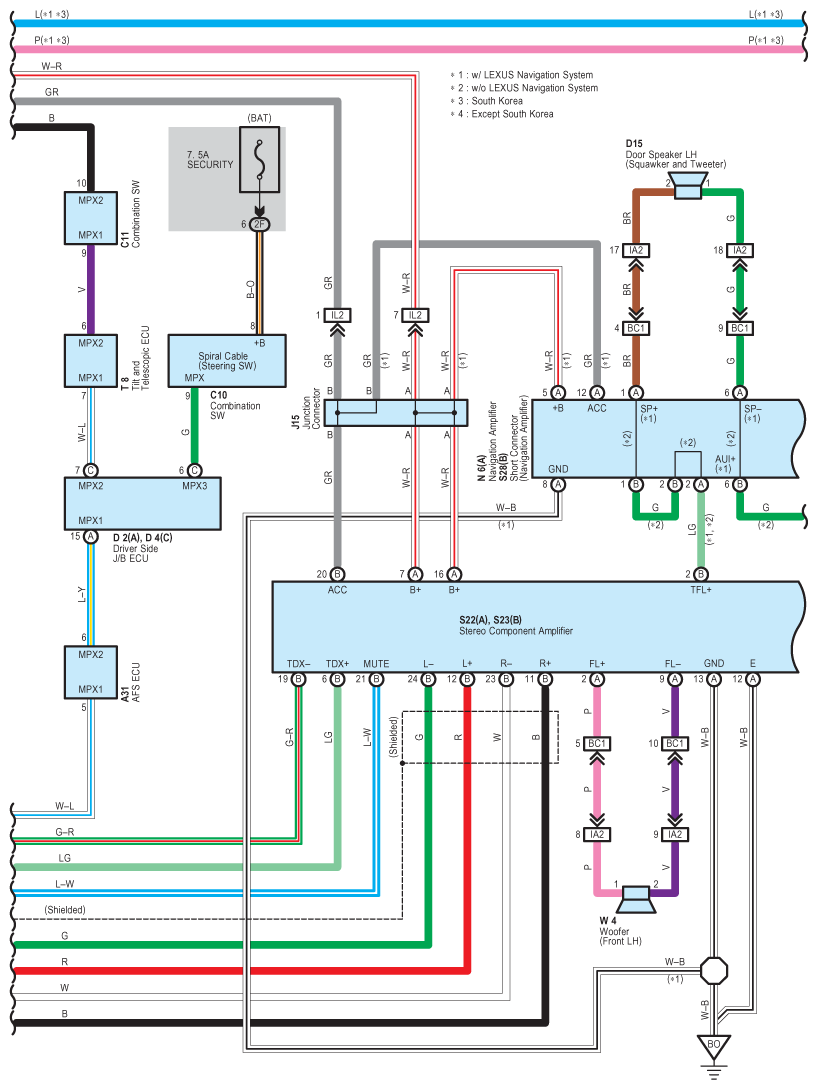

Fig 2: Audio System - Circuit Diagram (2 Of 3)
G07612085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

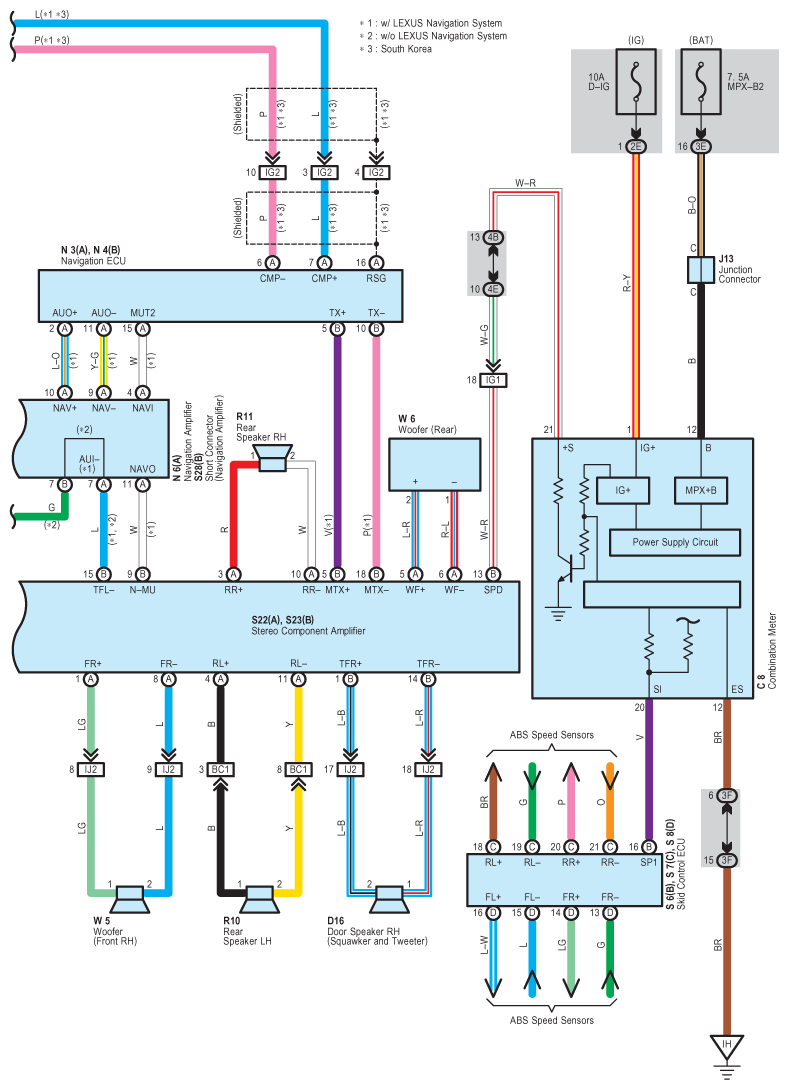

Fig 3: Audio System - Circuit Diagram (3 Of 3)
G07612086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
