Combination Meter: Notes

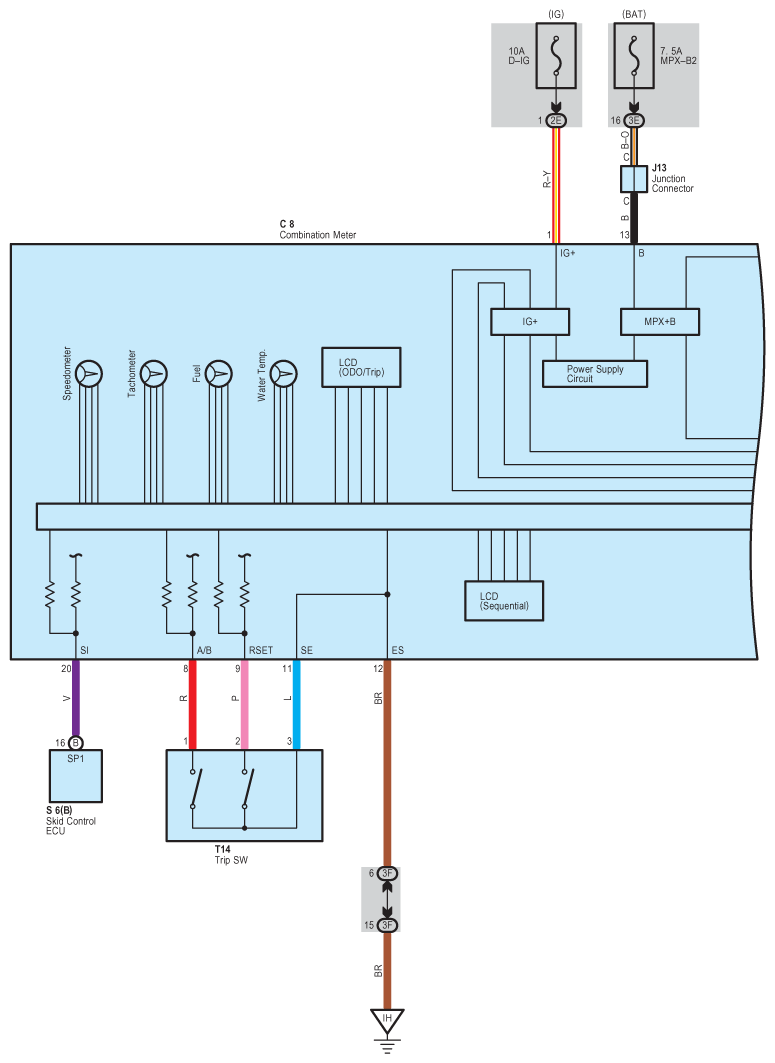

Fig 1: Combination Meter - Circuit Diagram (1 Of 6)
G07612088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

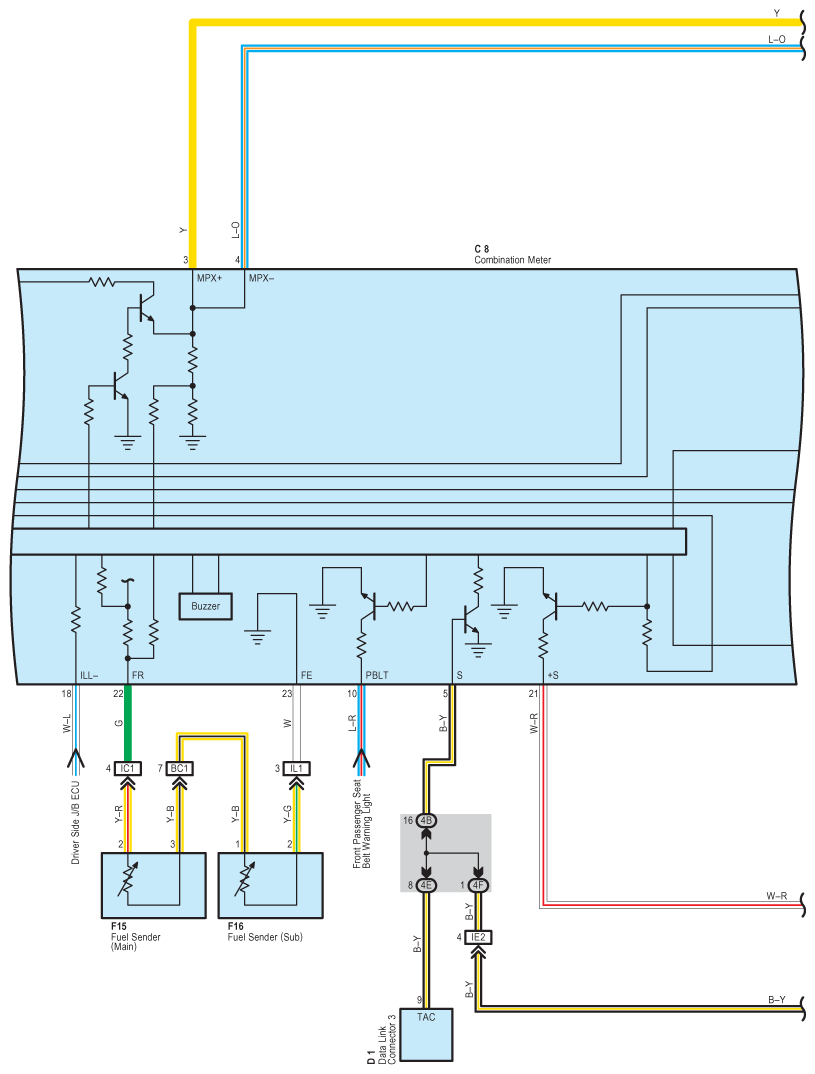

Fig 2: Combination Meter - Circuit Diagram (2 Of 6)
G07612089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

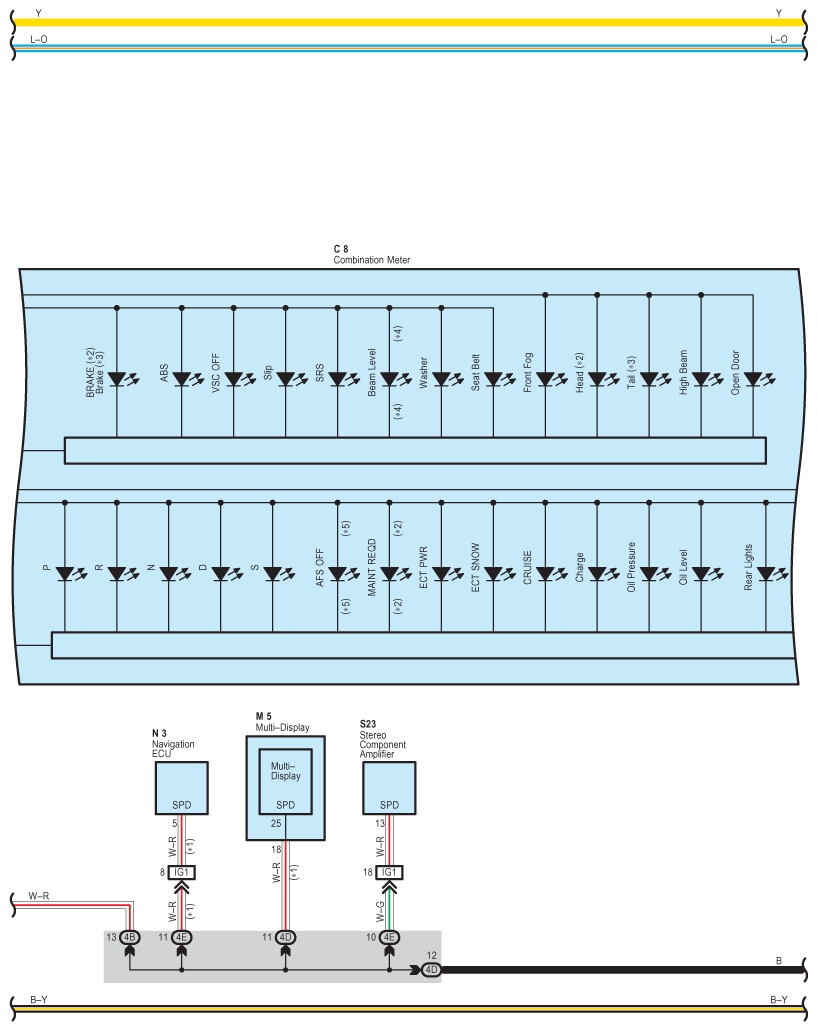

Fig 3: Combination Meter - Circuit Diagram (3 Of 6)
G07612090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

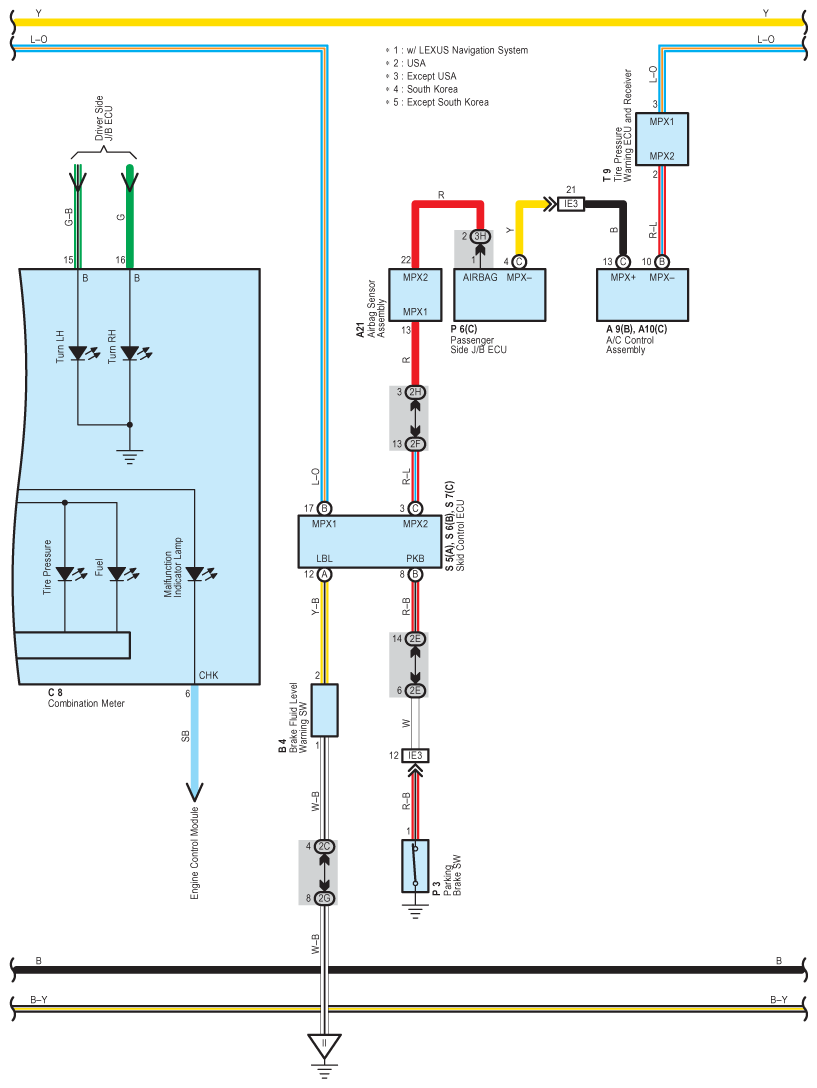

Fig 4: Combination Meter - Circuit Diagram (4 Of 6)
G07612091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

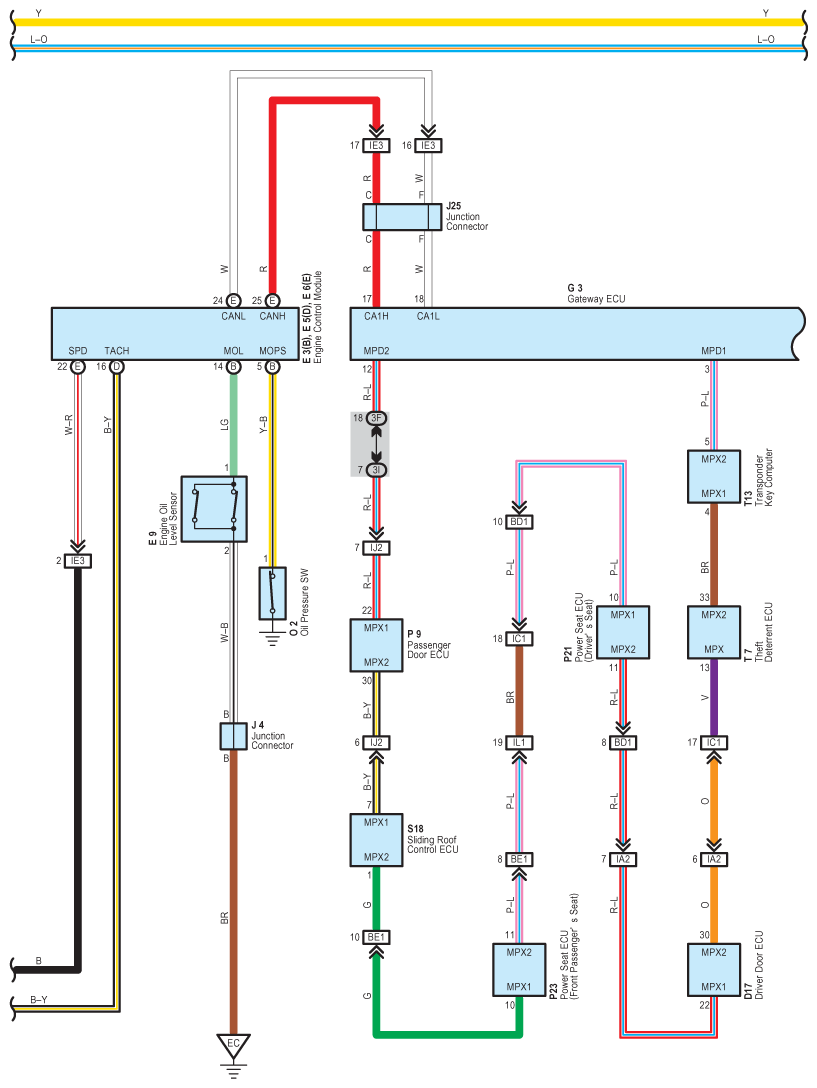

Fig 5: Combination Meter - Circuit Diagram (5 Of 6)
G07612092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

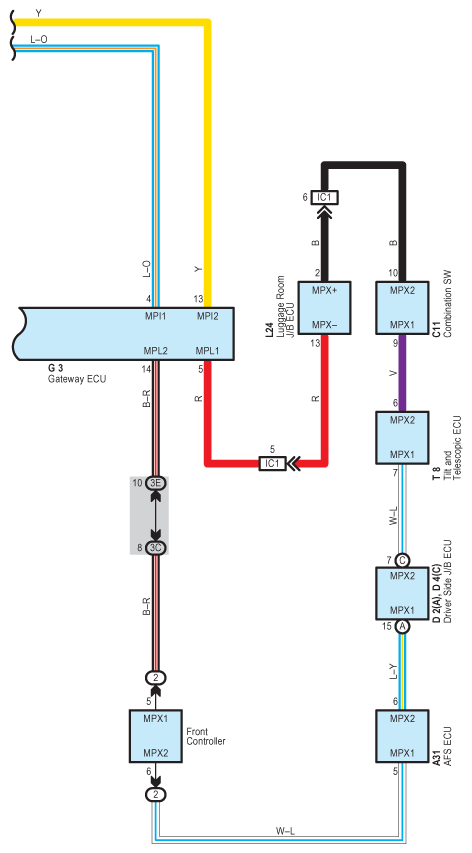

Fig 6: Combination Meter - Circuit Diagram (6 Of 6)
G07612093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
