Cruise Control: Notes

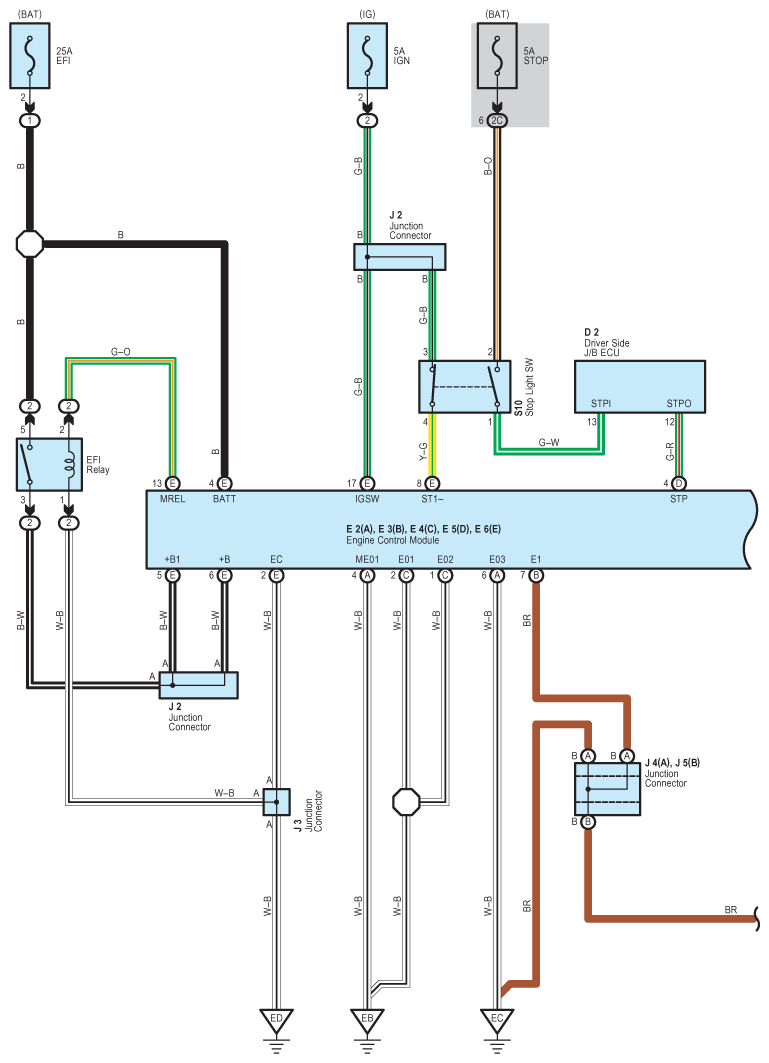

Fig 1: Cruise Control - Circuit Diagram (1 Of 5)
G07612041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

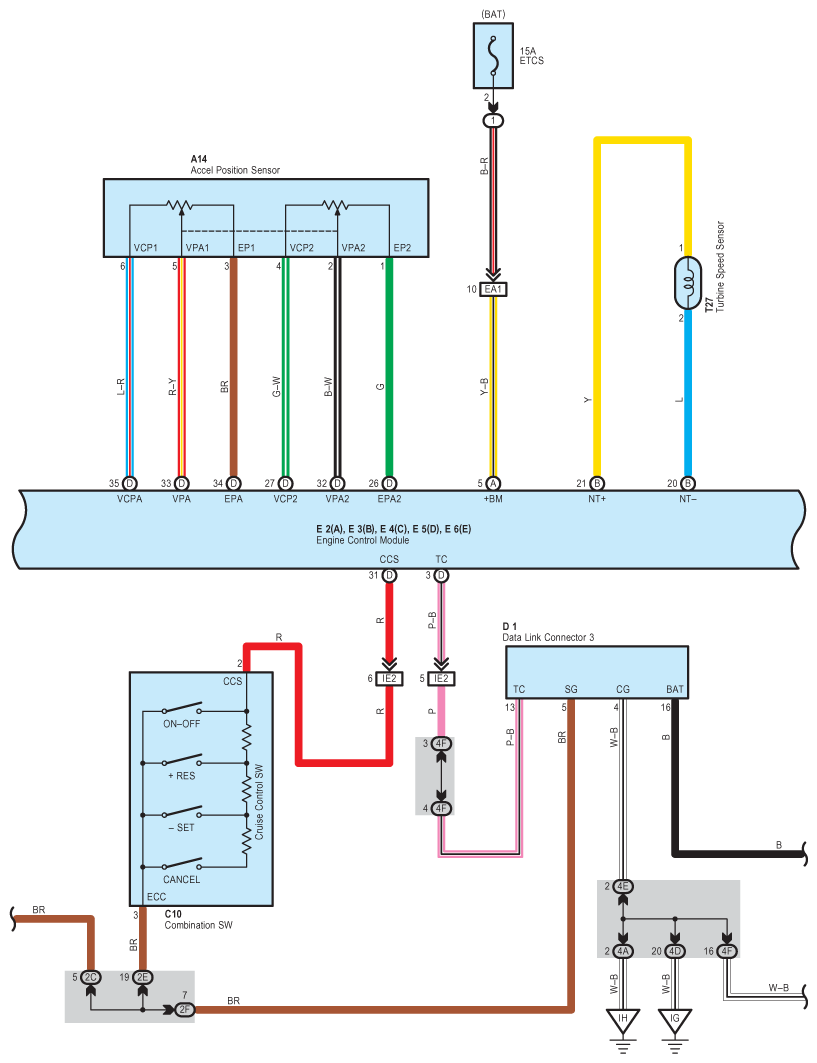

Fig 2: Cruise Control - Circuit Diagram (2 Of 5)
G07612042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

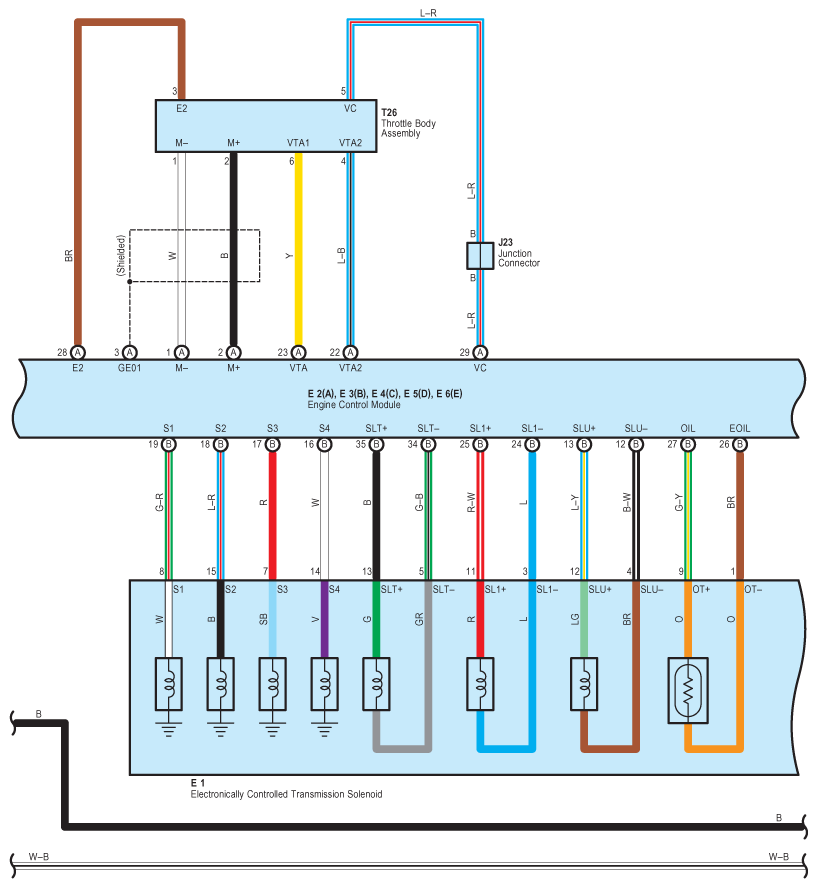

Fig 3: Cruise Control - Circuit Diagram (3 Of 5)
G07612043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Cruise Control - Circuit Diagram (4 Of 5)
G07612044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

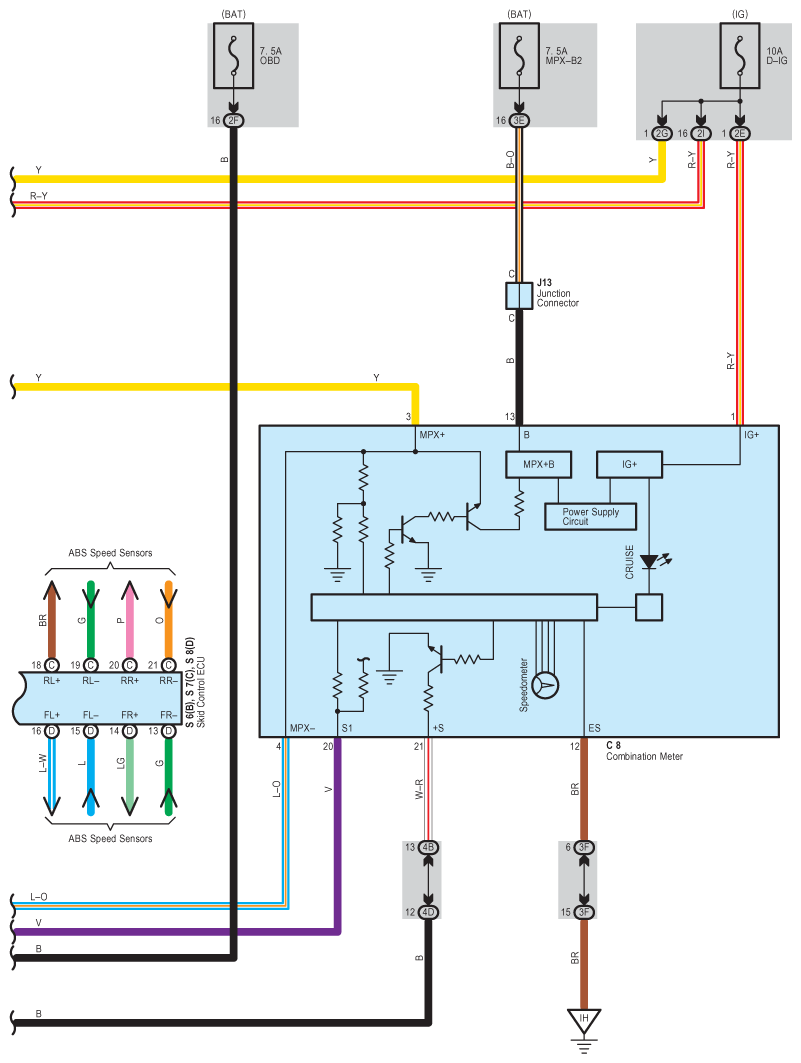

Fig 5: Cruise Control - Circuit Diagram (5 Of 5)
G07612045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
