Engine Control: Notes

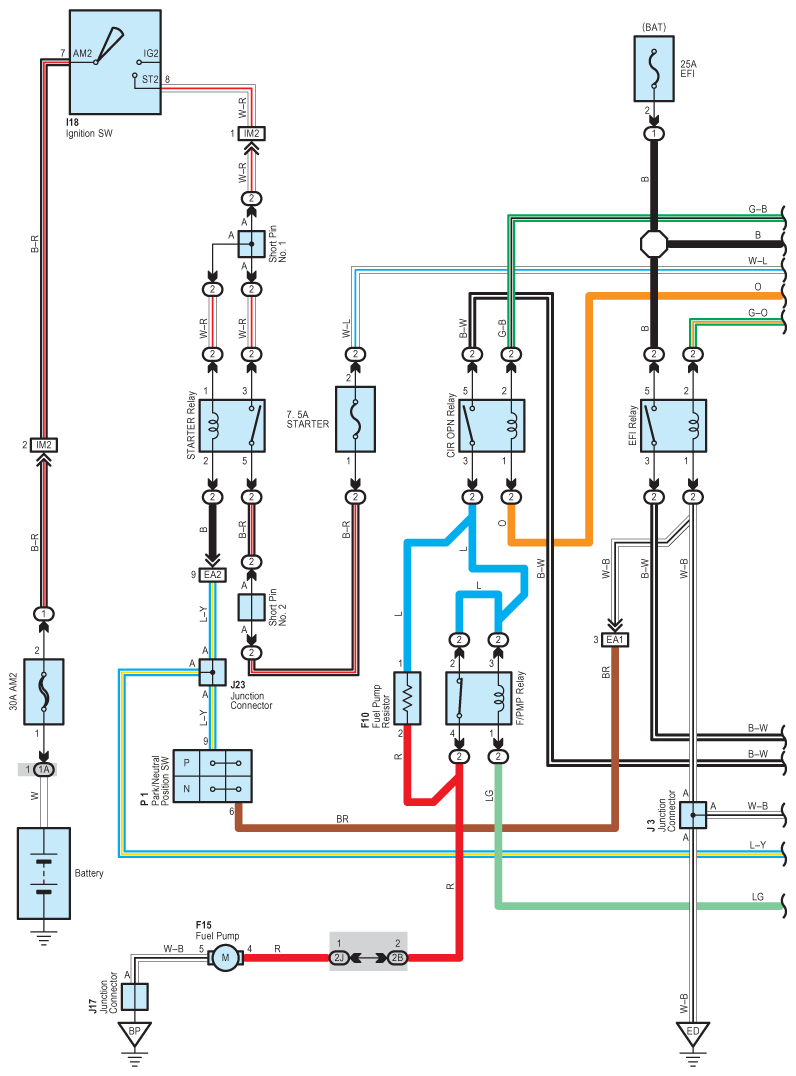

Fig 1: Engine Control - Circuit Diagram (1 Of 9)

G07611930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

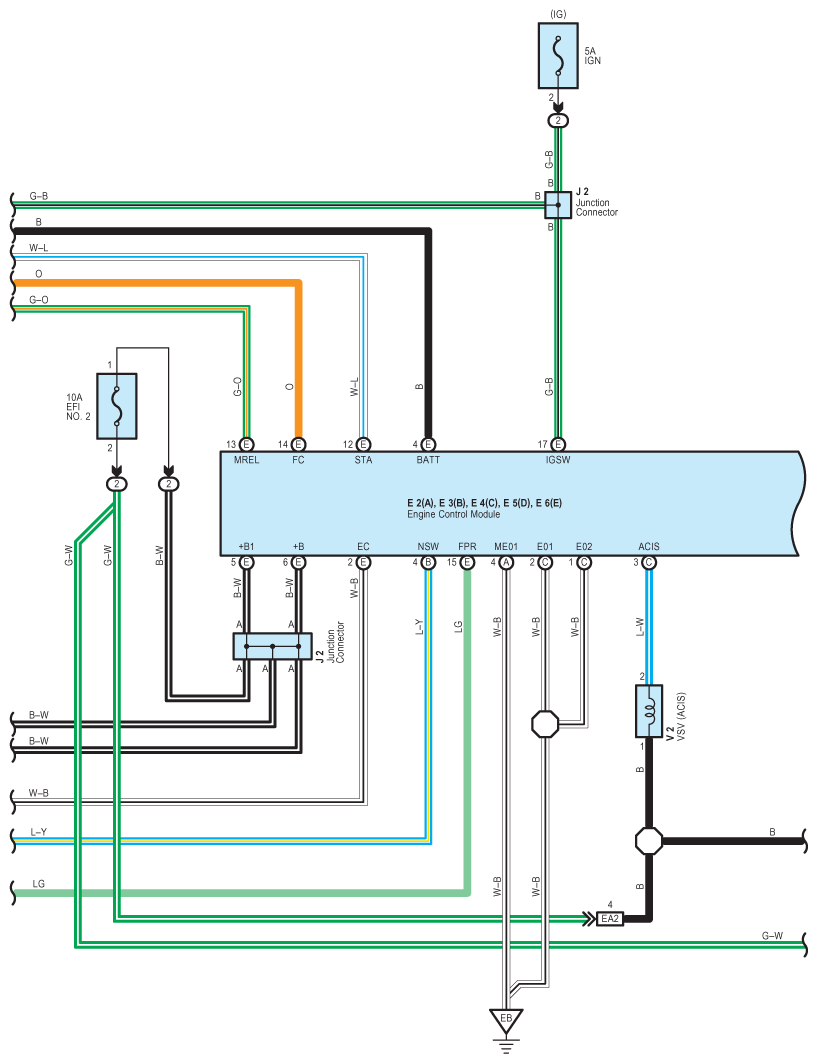

Fig 2: Engine Control - Circuit Diagram (2 Of 9)

G07611931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

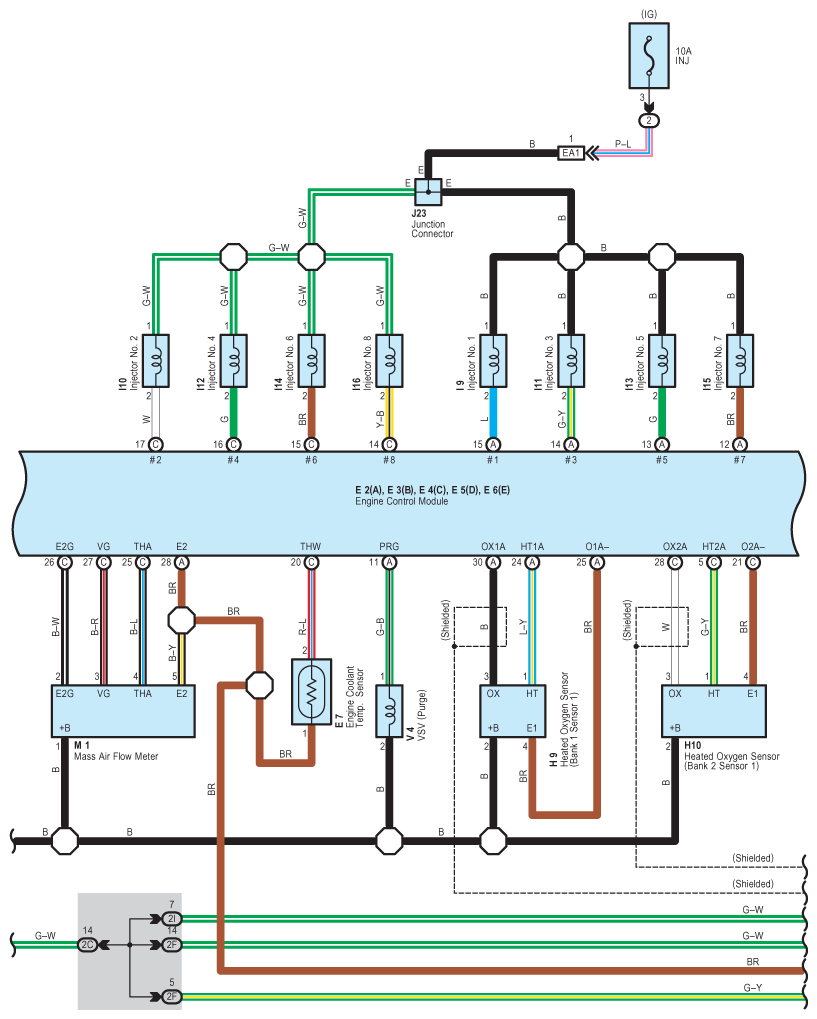

Fig 3: Engine Control - Circuit Diagram (3 Of 9)

G07611932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

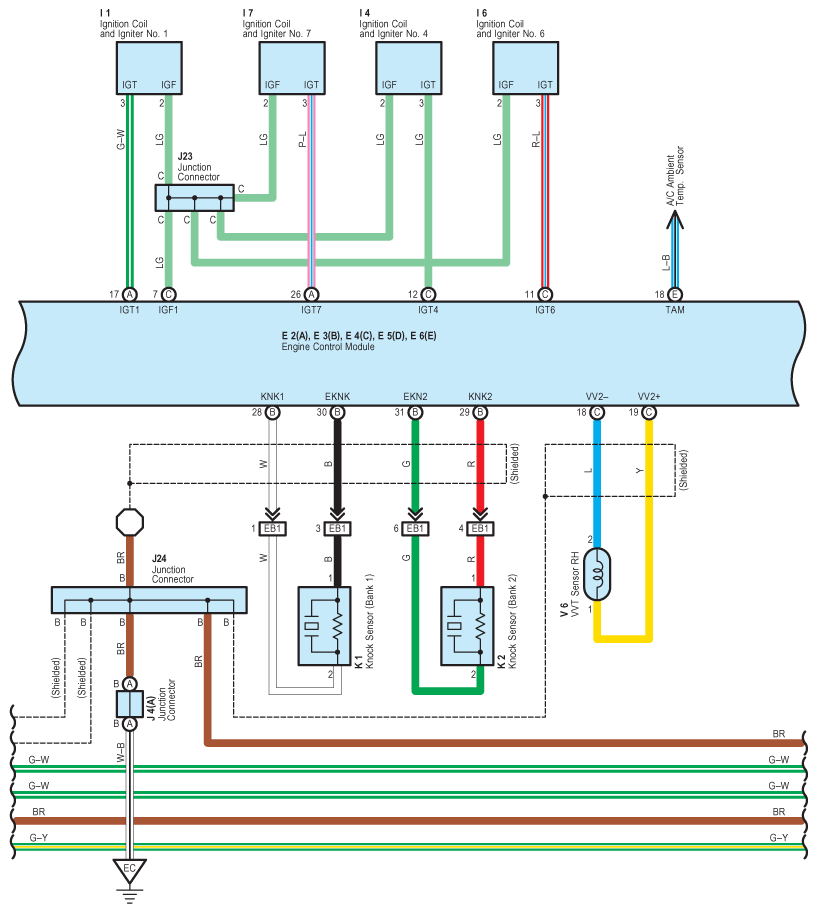

Fig 4: Engine Control - Circuit Diagram (4 Of 9)

G07611933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

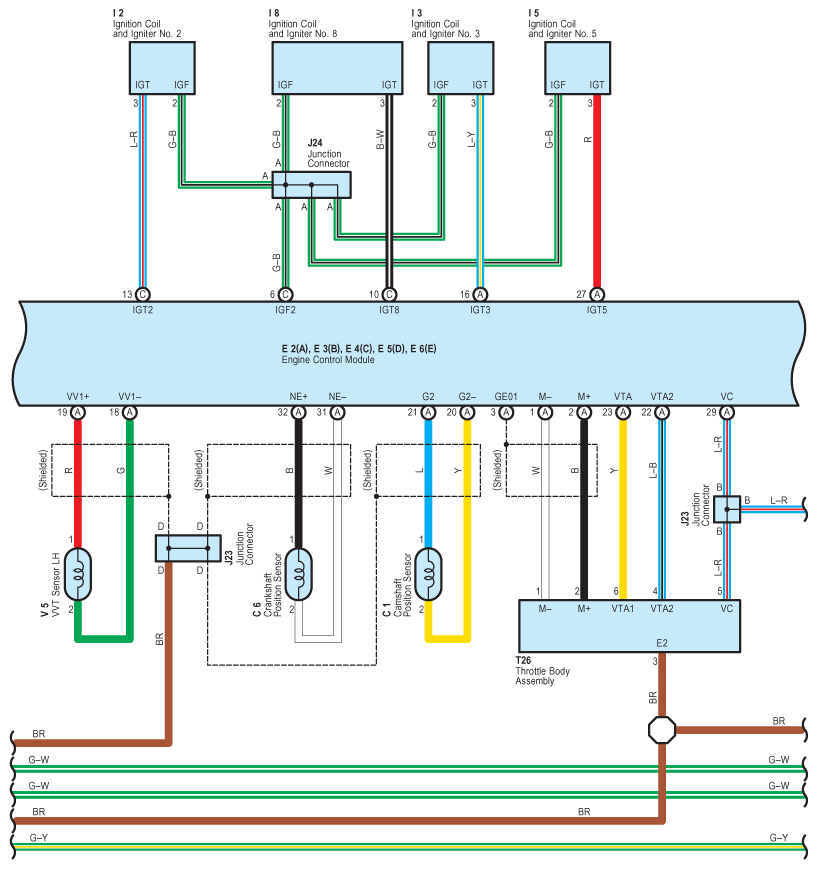

Fig 5: Engine Control - Circuit Diagram (5 Of 9)

G07611934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

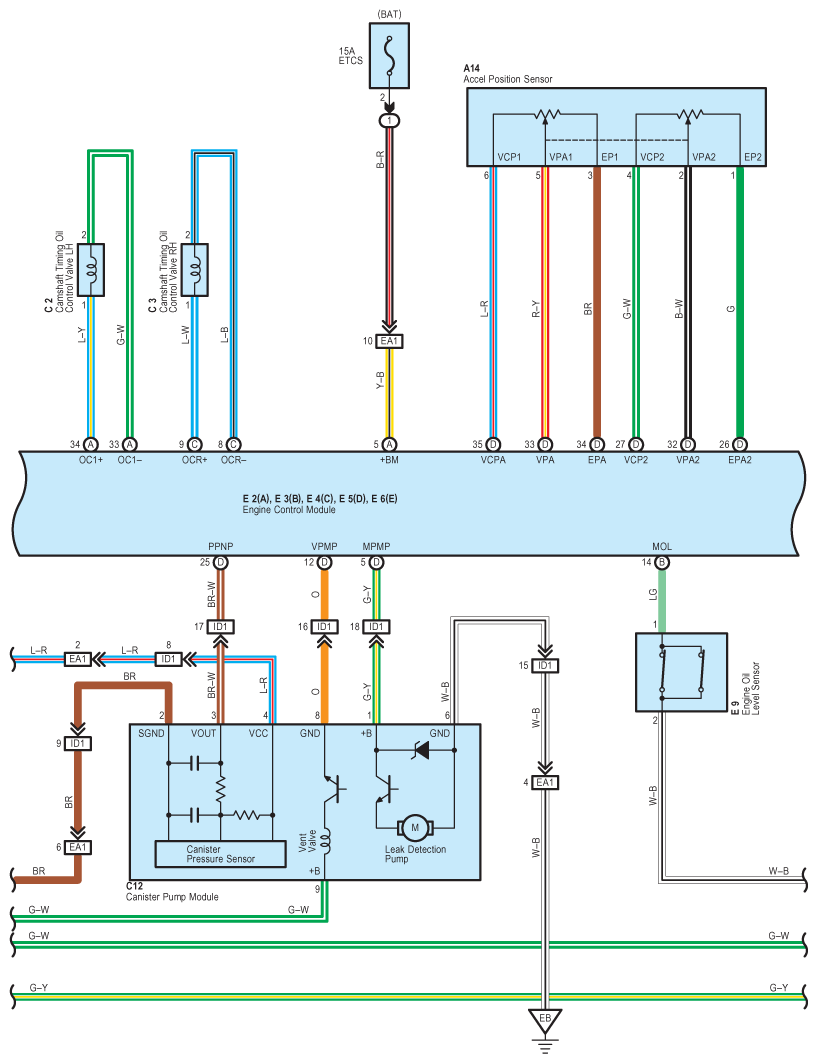

Fig 6: Engine Control - Circuit Diagram (6 Of 9)

G07611935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

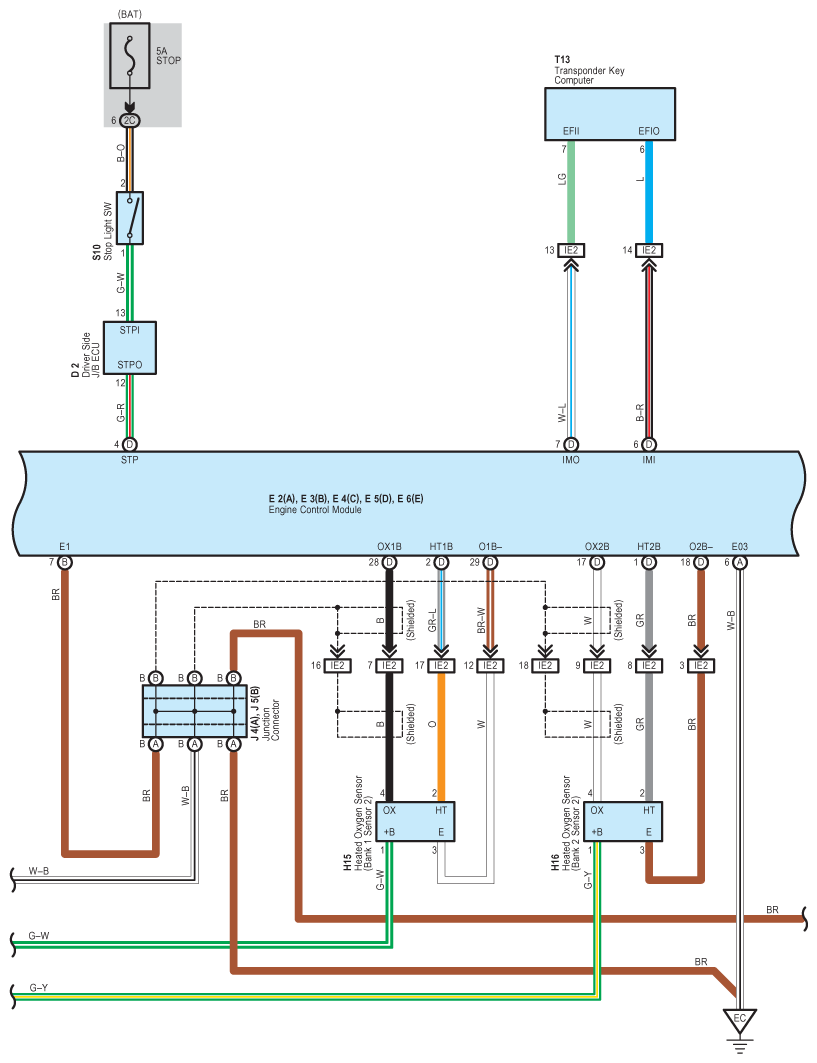

Fig 7: Engine Control - Circuit Diagram (7 Of 9)

G07611936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

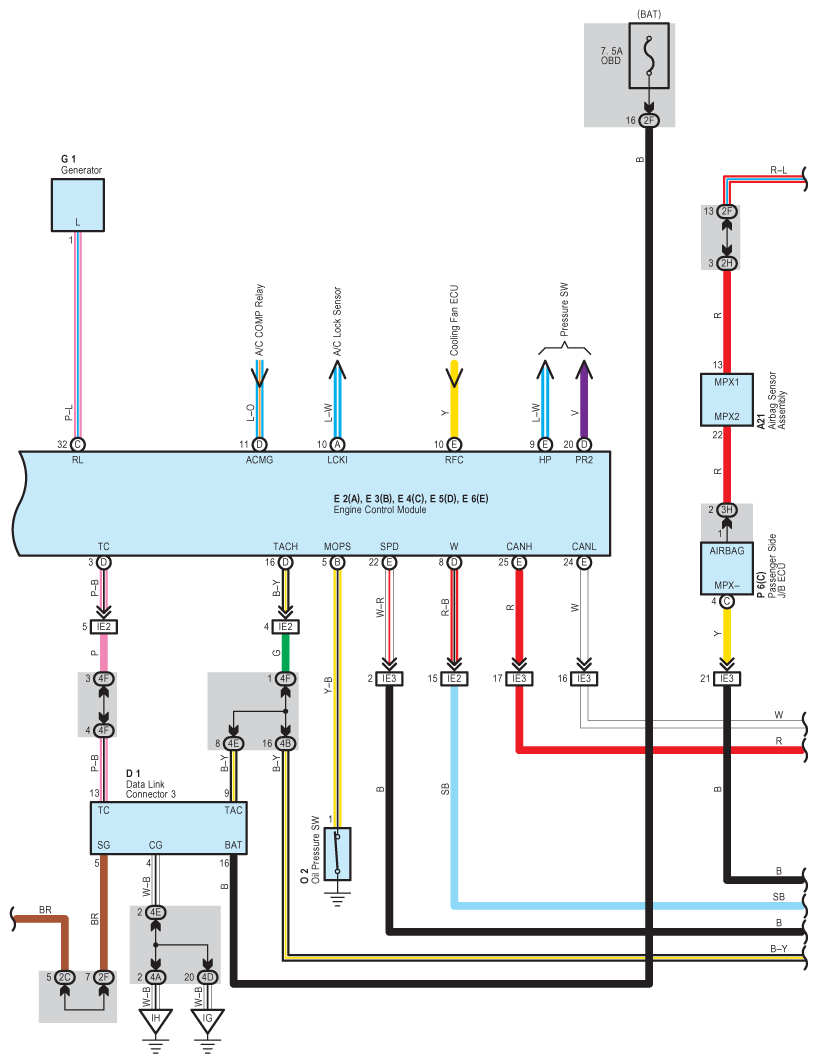

Fig 8: Engine Control - Circuit Diagram (8 Of 9)

G07611937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

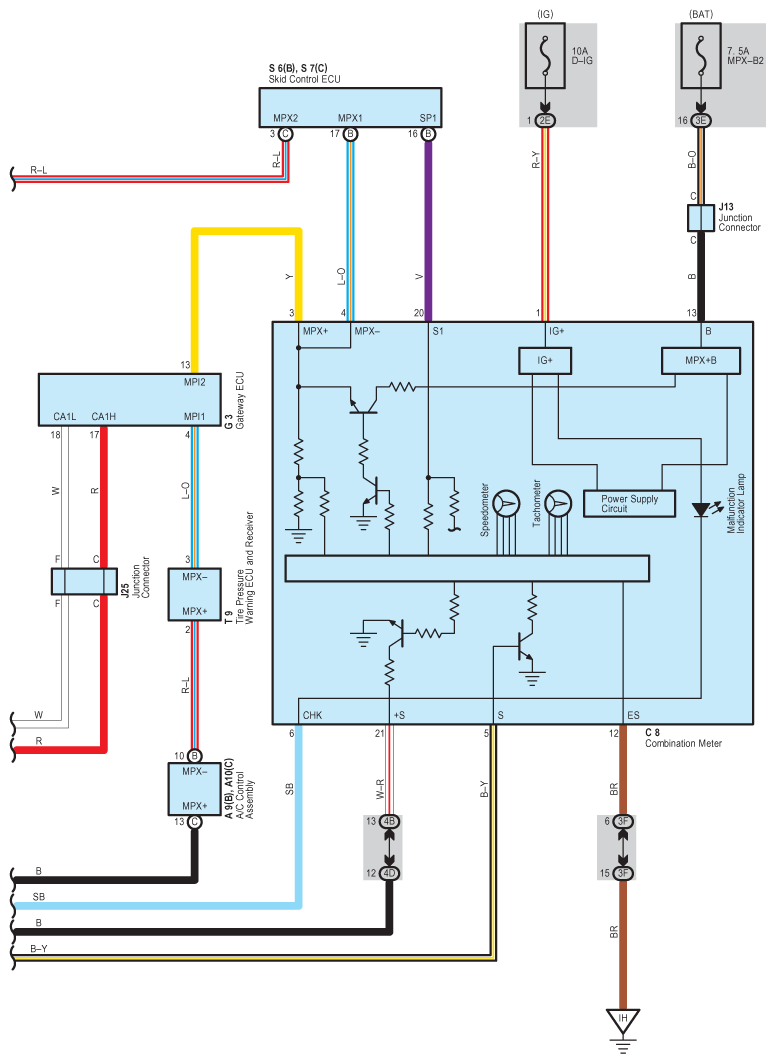

Fig 9: Engine Control - Circuit Diagram (9 Of 9)

G07611938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
