LEXUS Navigation System: Notes

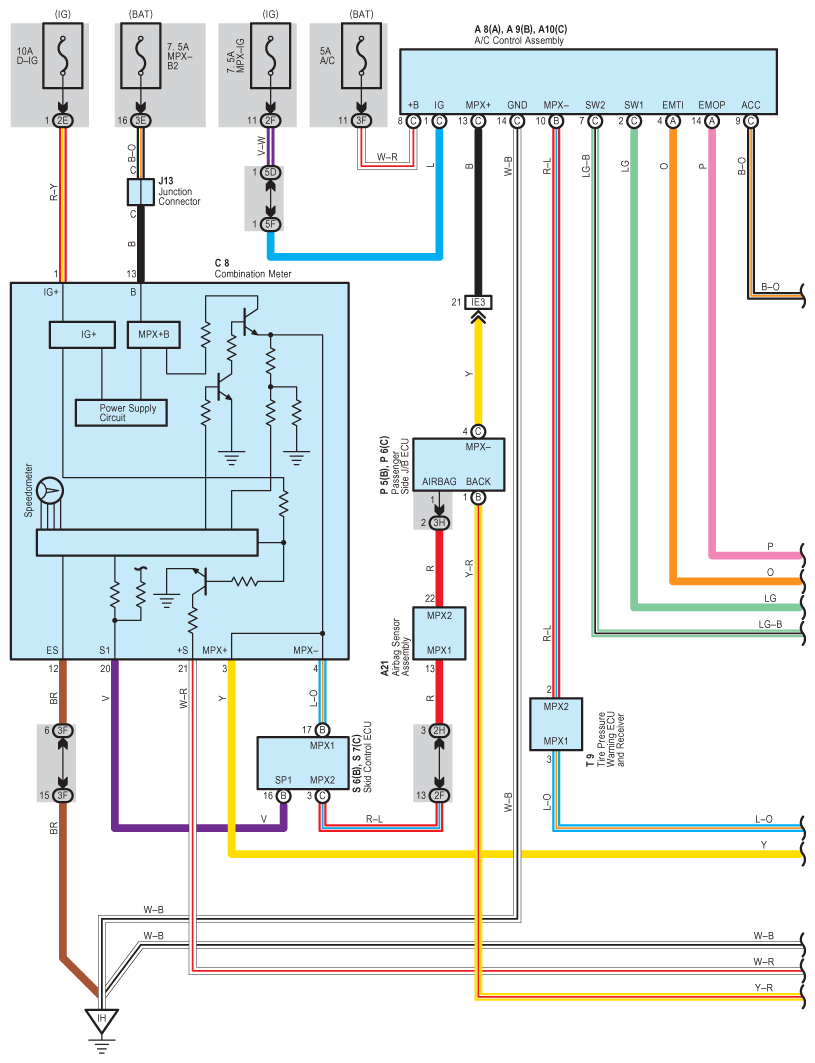

Fig 1: Lexus Navigation System - Circuit Diagram (1 Of 5)
G07612079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

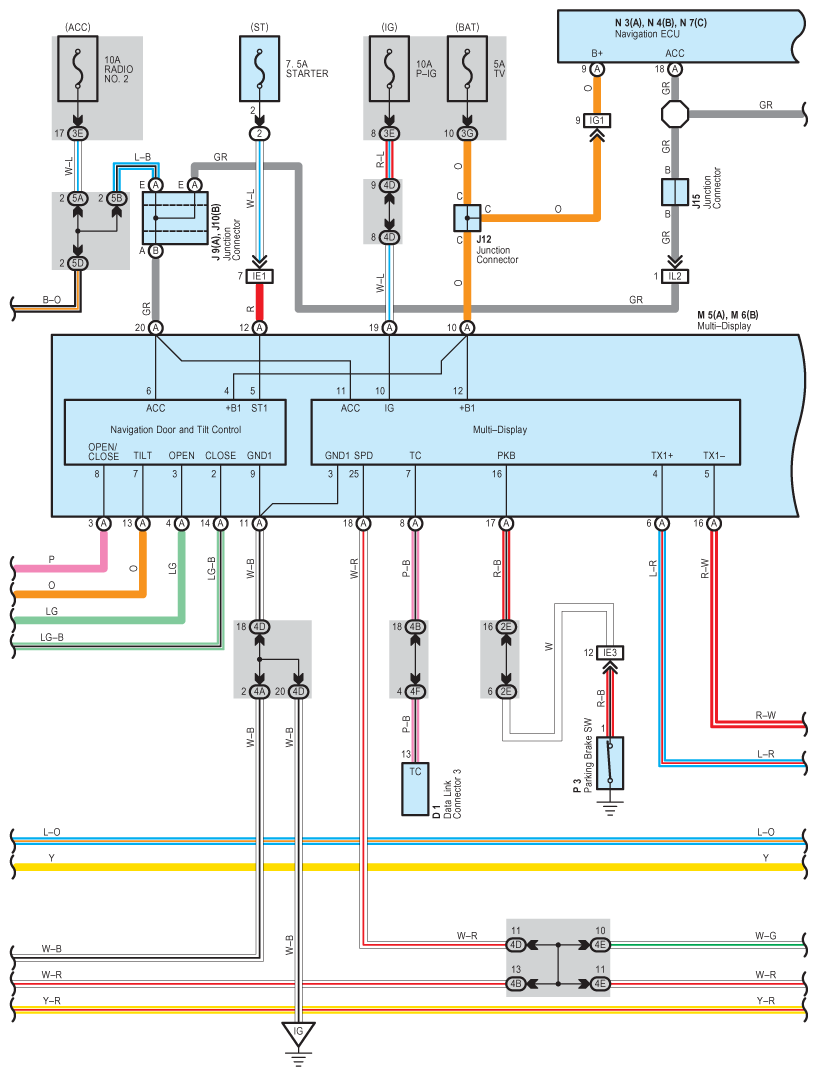

Fig 2: Lexus Navigation System - Circuit Diagram (2 Of 5)
G07612080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

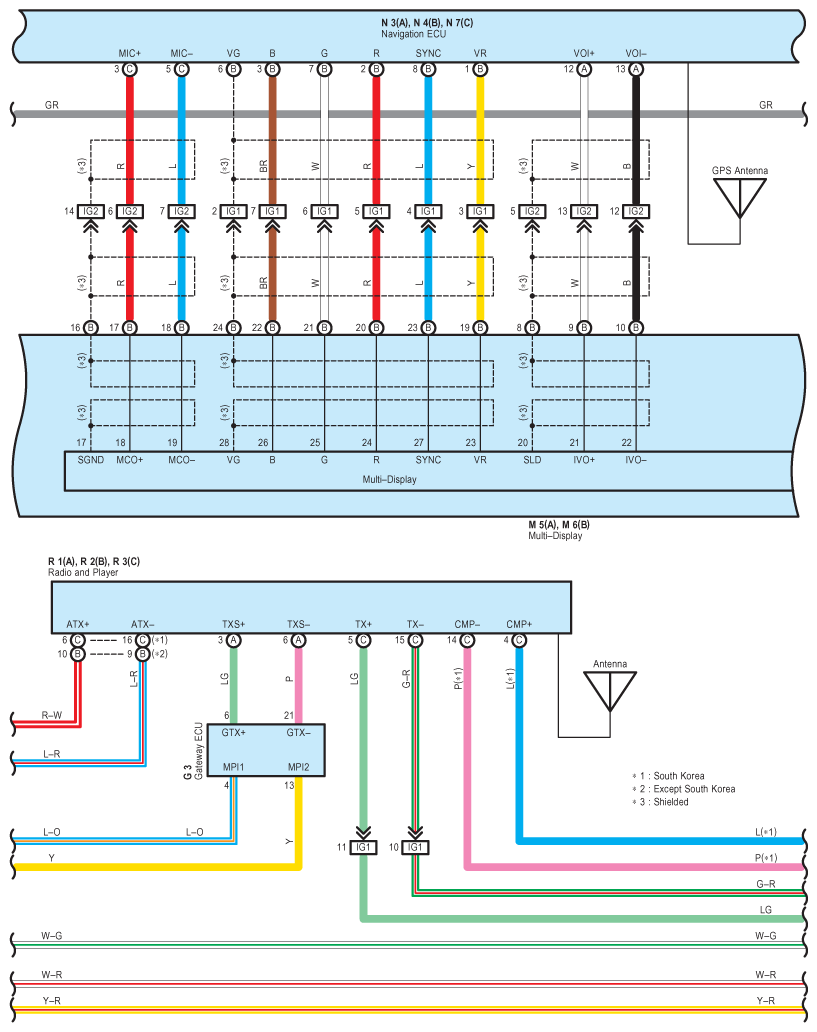

Fig 3: Lexus Navigation System - Circuit Diagram (3 Of 5)
G07612081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

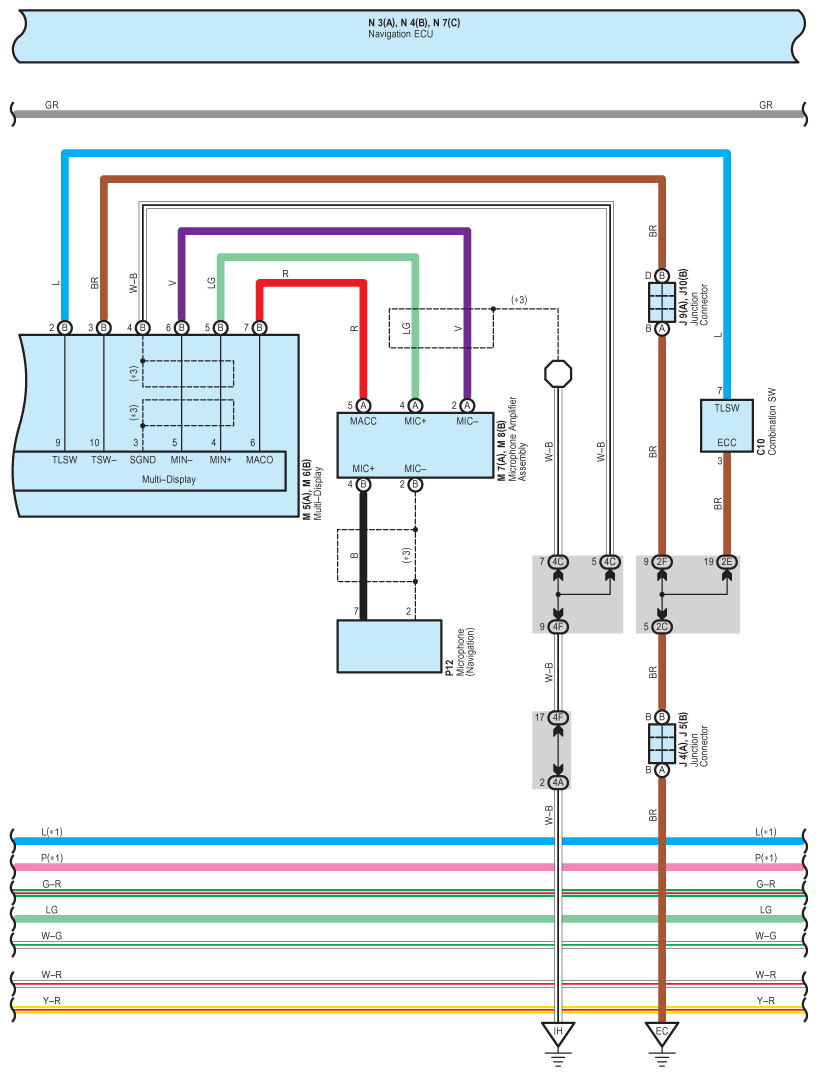

Fig 4: Lexus Navigation System - Circuit Diagram (4 Of 5)
G07612082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

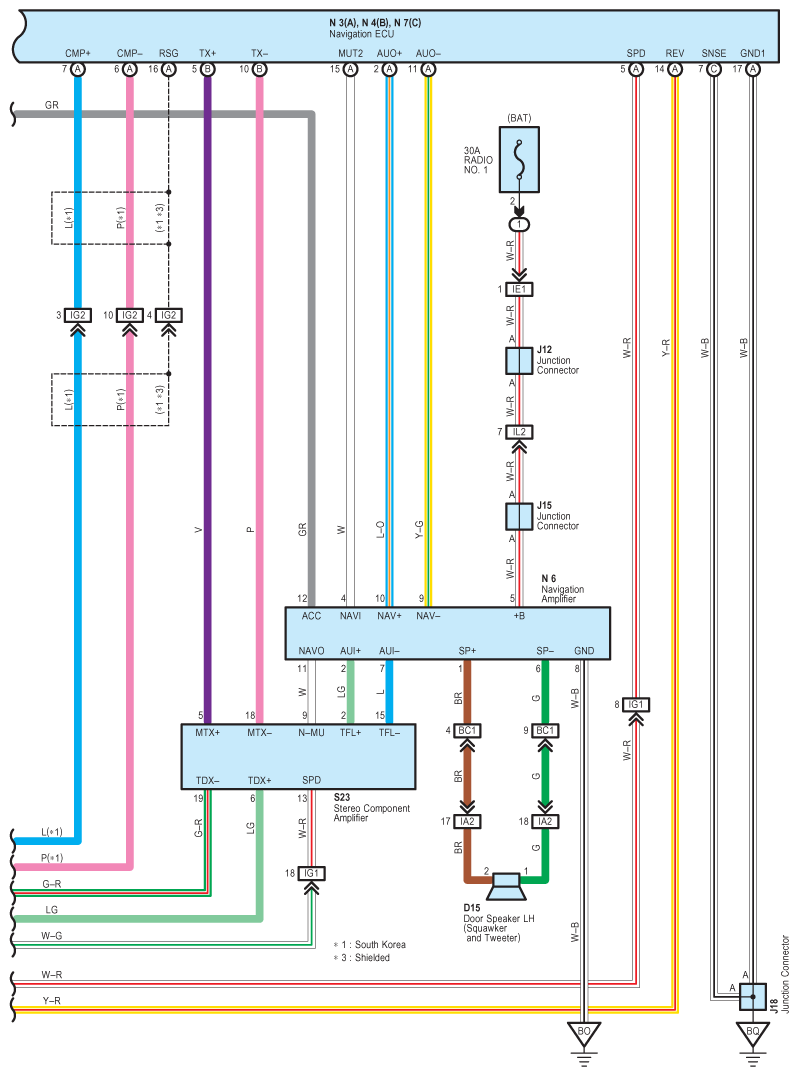

Fig 5: Lexus Navigation System - Circuit Diagram (5 Of 5)
G07612083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
