Remote Control Mirror: Notes

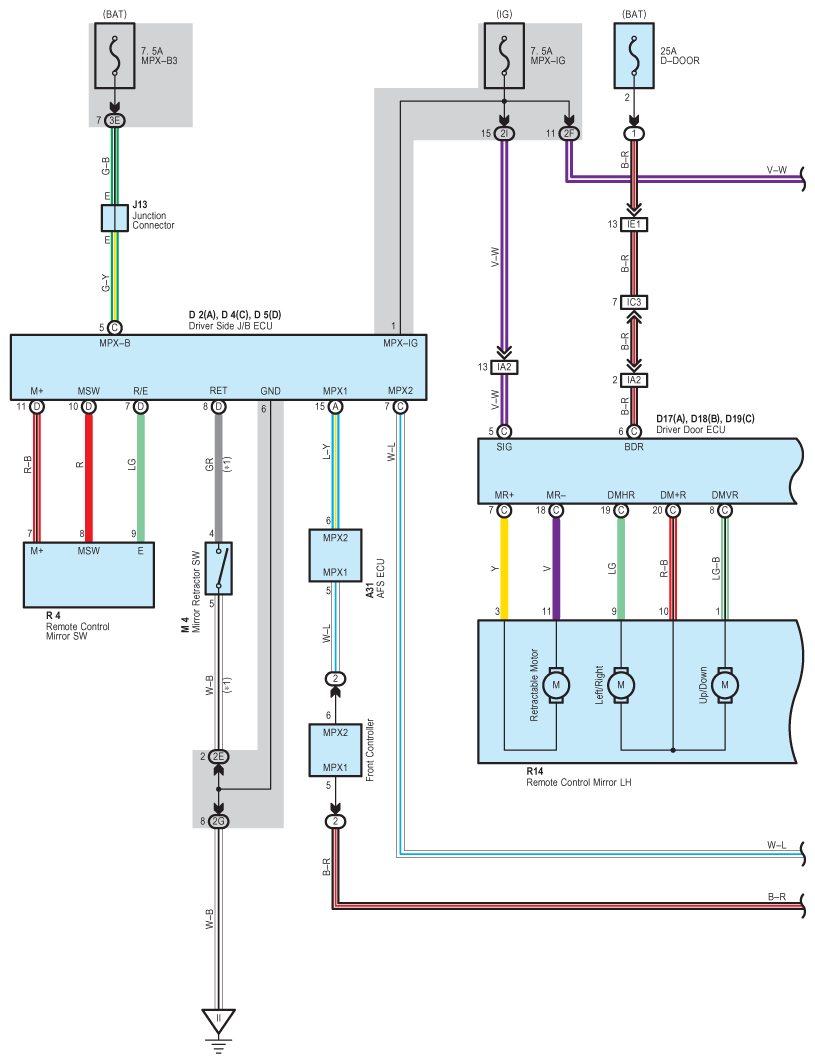

Fig 1: Remote Control Mirror - Circuit Diagram (1 Of 5)
G07612025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

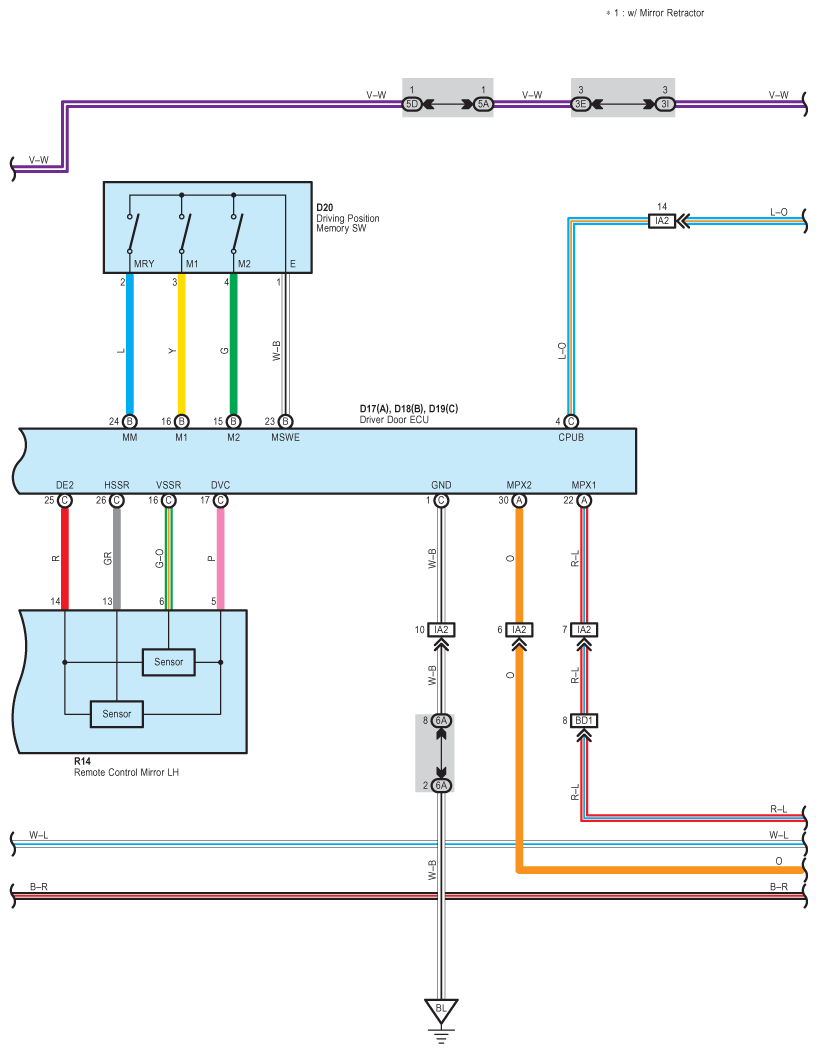

Fig 2: Remote Control Mirror - Circuit Diagram (2 Of 5)
G07612026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

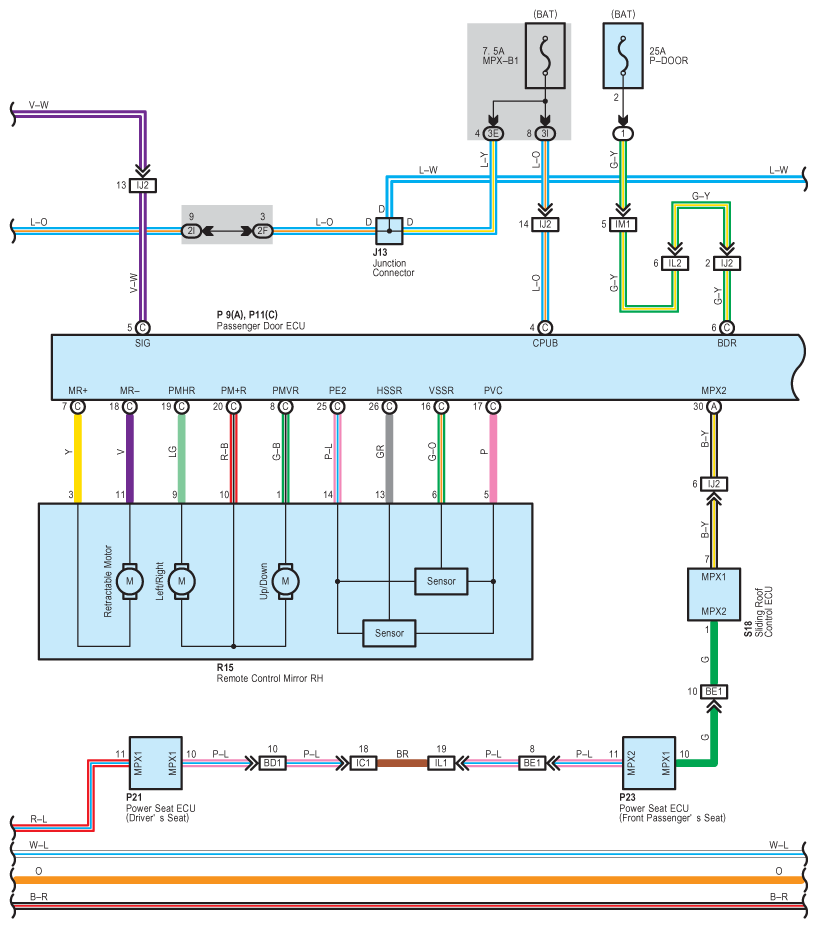

Fig 3: Remote Control Mirror - Circuit Diagram (3 Of 5)
G07612027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

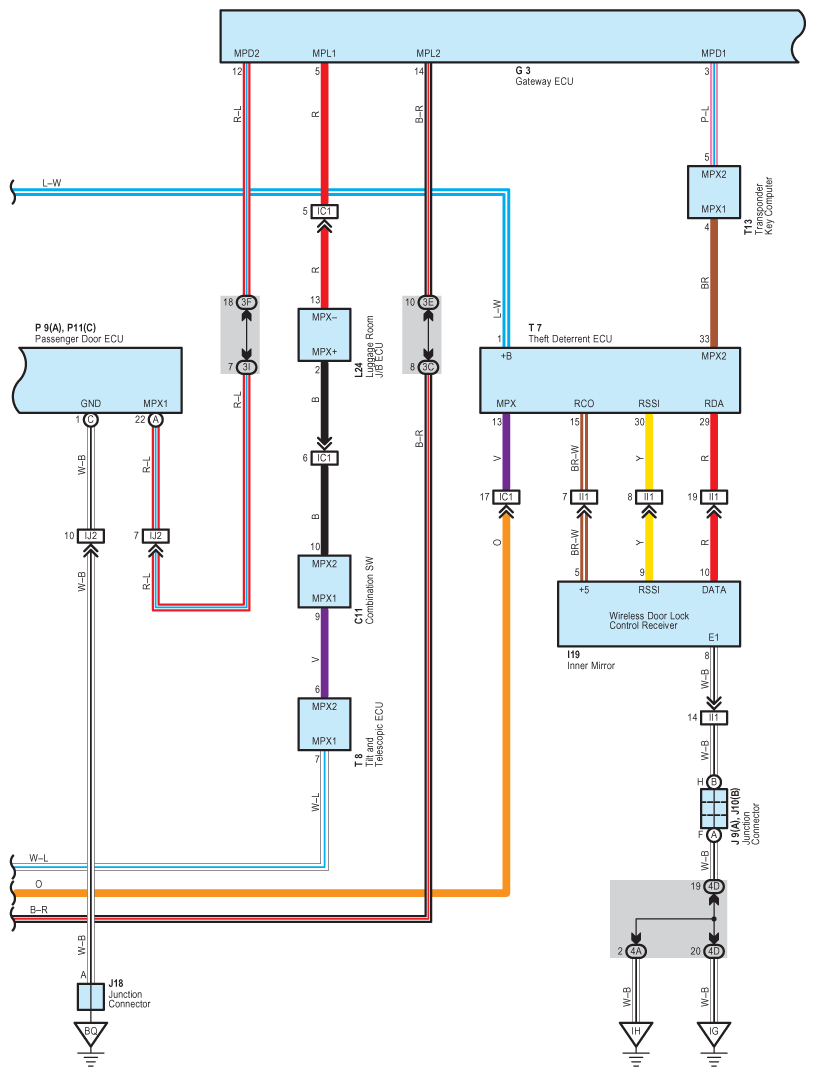

Fig 4: Remote Control Mirror - Circuit Diagram (4 Of 5)
G07612028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

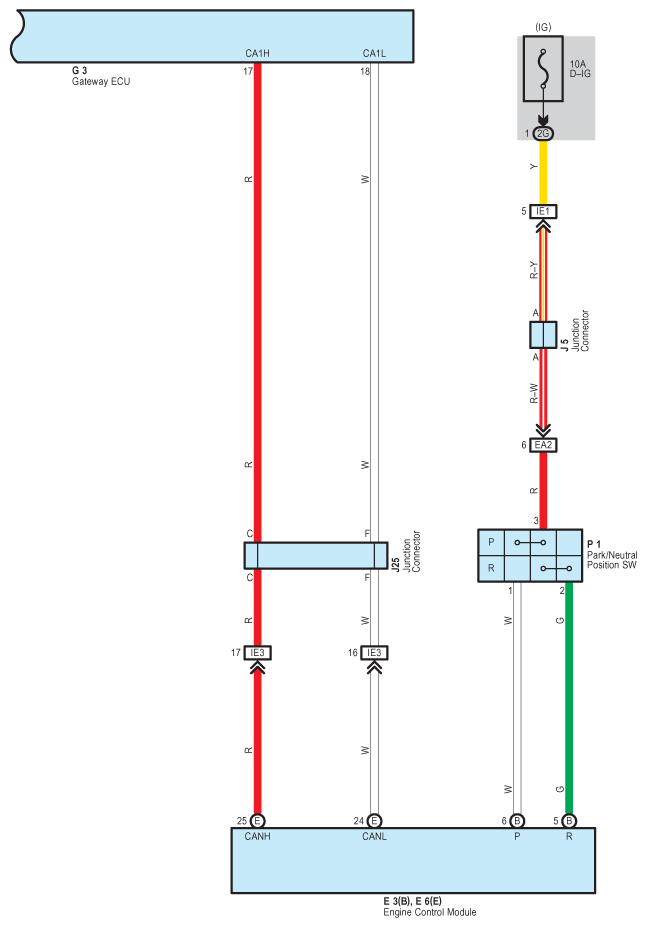

Fig 5: Remote Control Mirror - Circuit Diagram (5 Of 5)
G07612029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
