Retractable Hardtop: Notes

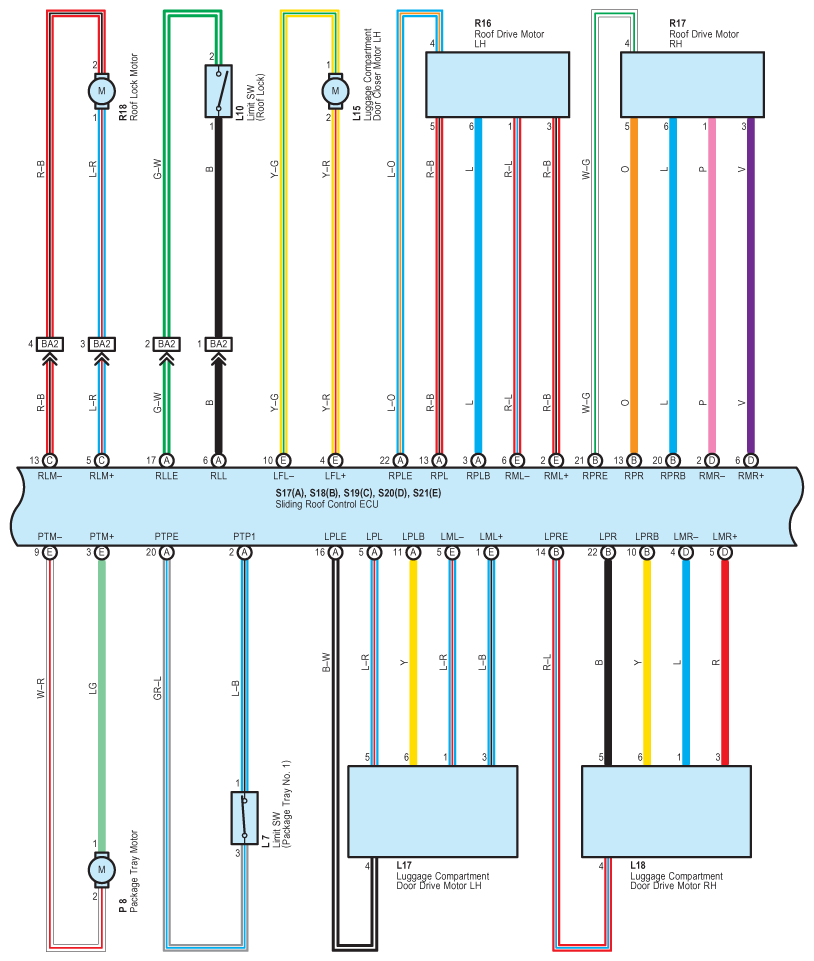

Fig 1: Retractable Hardtop - Circuit Diagram (1 Of 7)
G07612012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

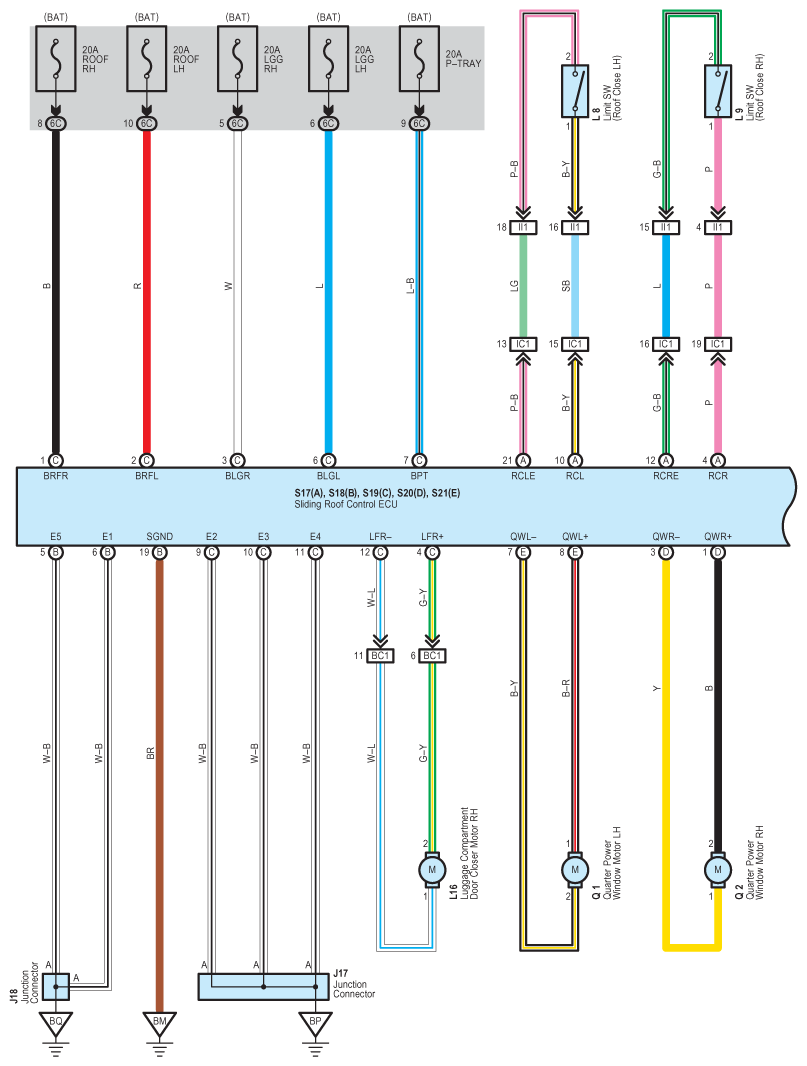

Fig 2: Retractable Hardtop - Circuit Diagram (2 Of 7)
G07612013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

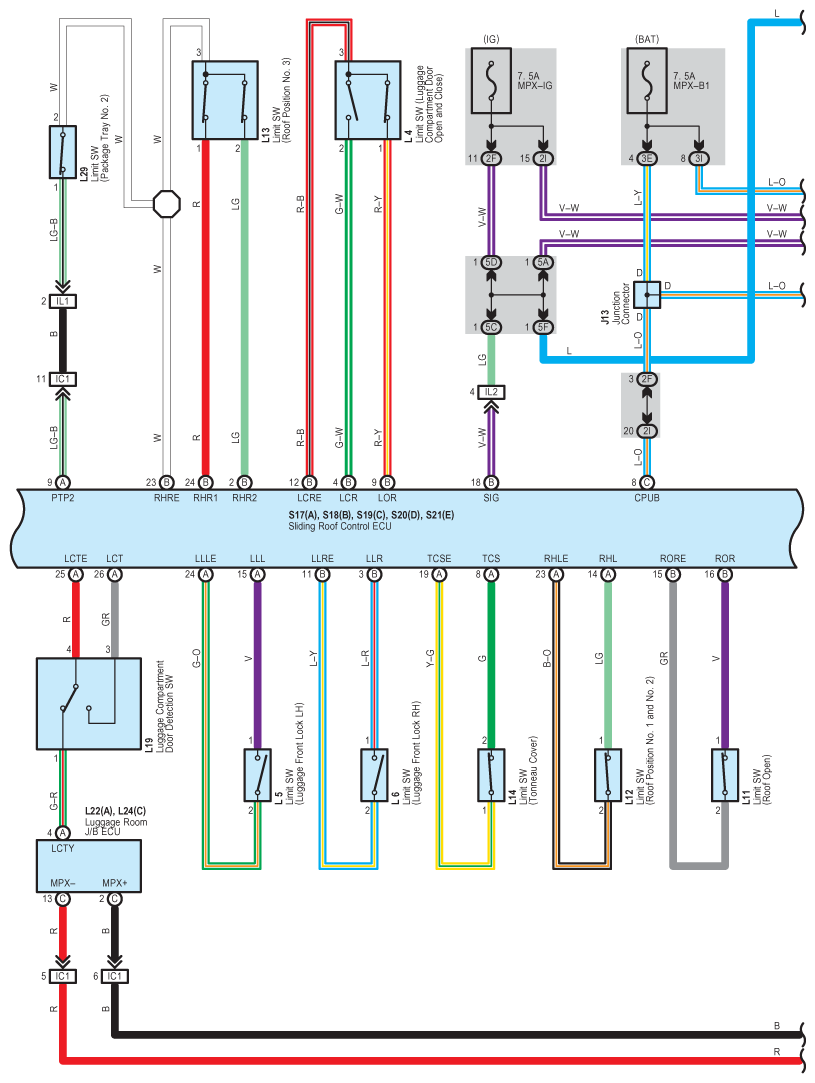

Fig 3: Retractable Hardtop - Circuit Diagram (3 Of 7)
G07612014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

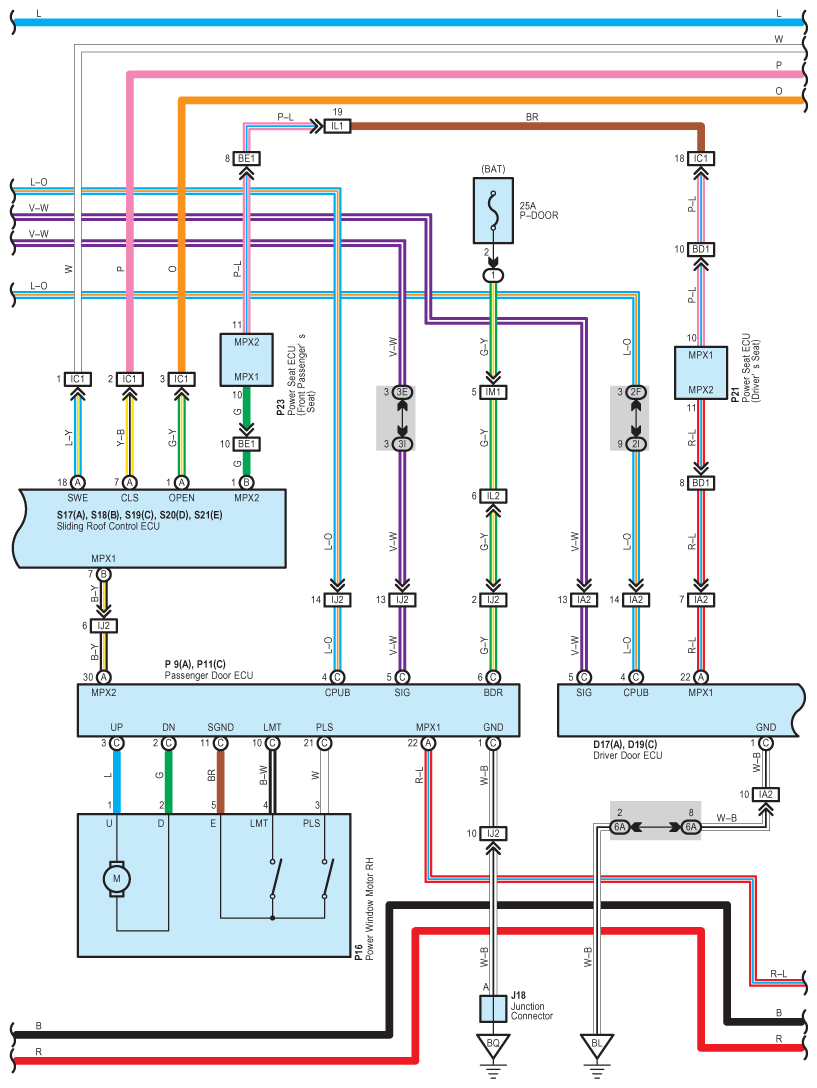

Fig 4: Retractable Hardtop - Circuit Diagram (4 Of 7)
G07612015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

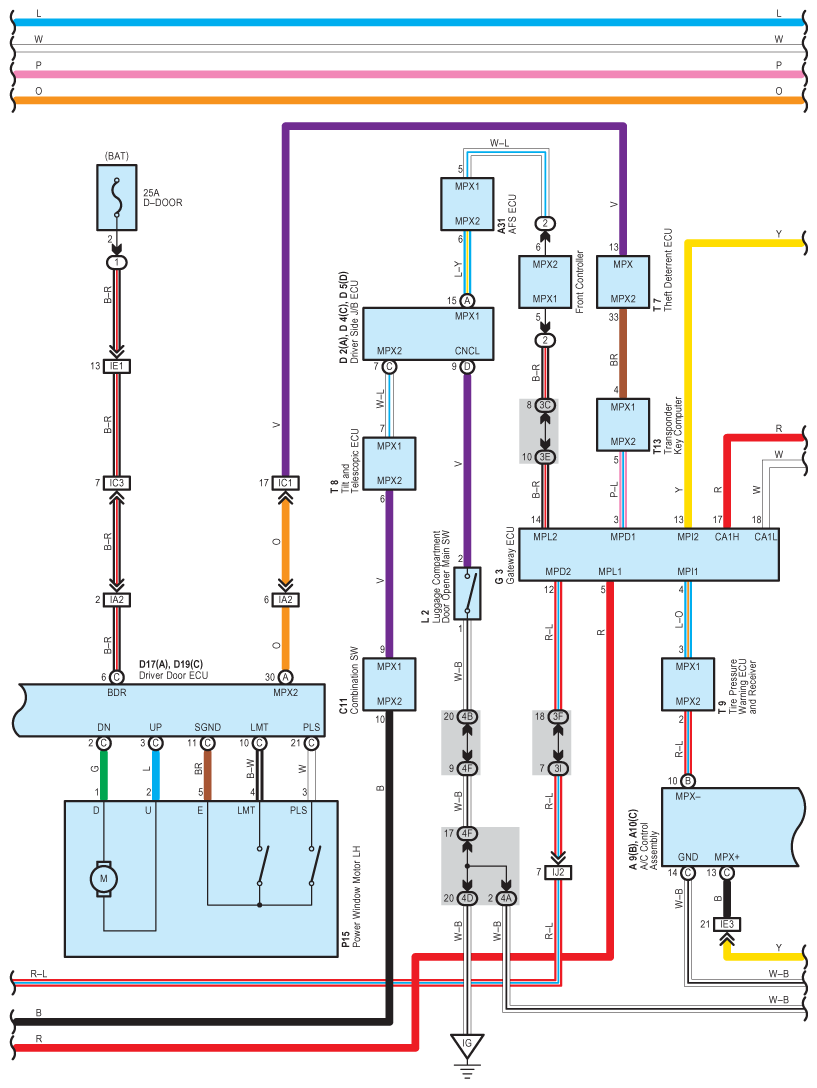

Fig 5: Retractable Hardtop - Circuit Diagram (5 Of 7)
G07612016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Retractable Hardtop - Circuit Diagram (6 Of 7)
G07612017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

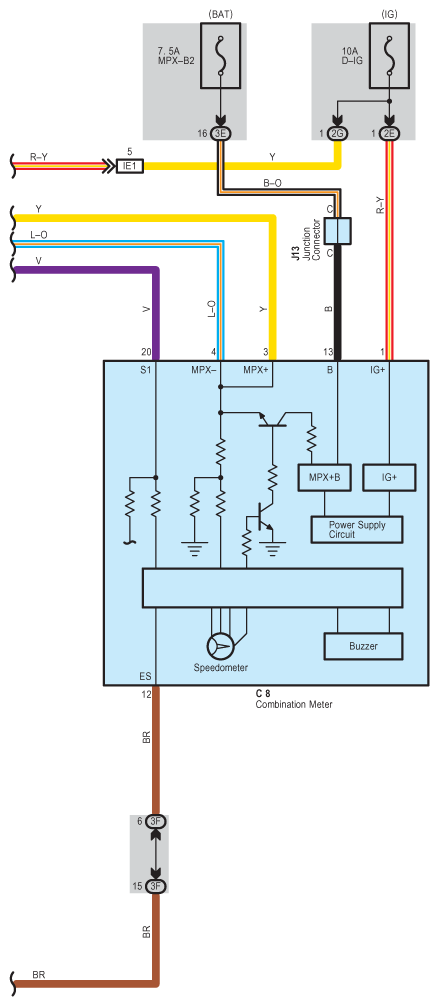

Fig 7: Retractable Hardtop - Circuit Diagram (7 Of 7)
G07612018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
