OEM System Circuits: SRS: Notes

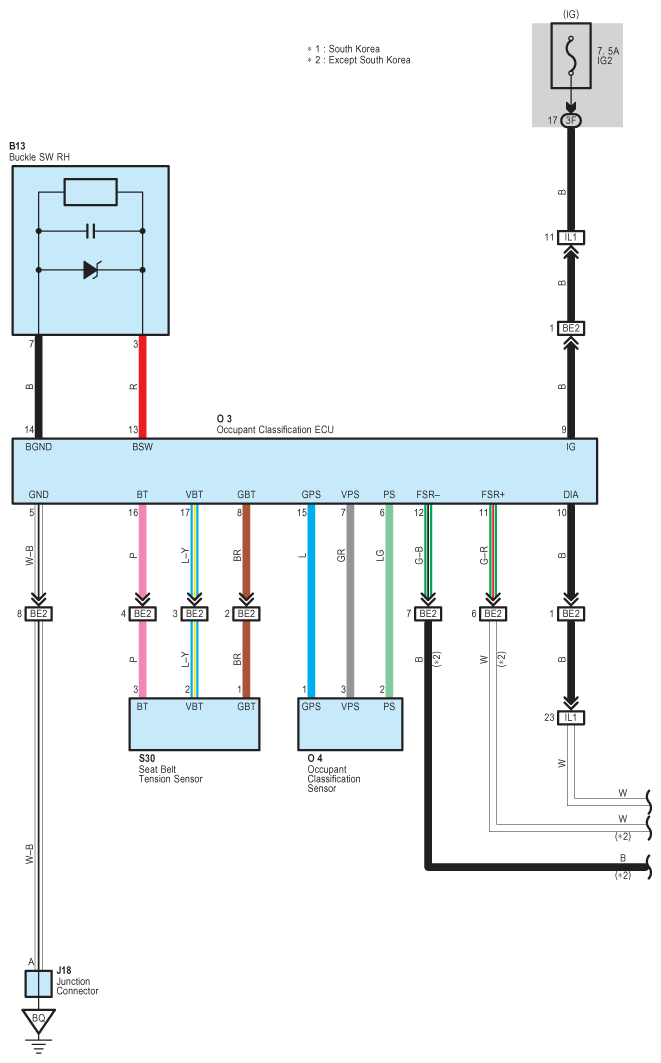

Fig 1: SRS - Circuit Diagram (1 Of 6)

G07612052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

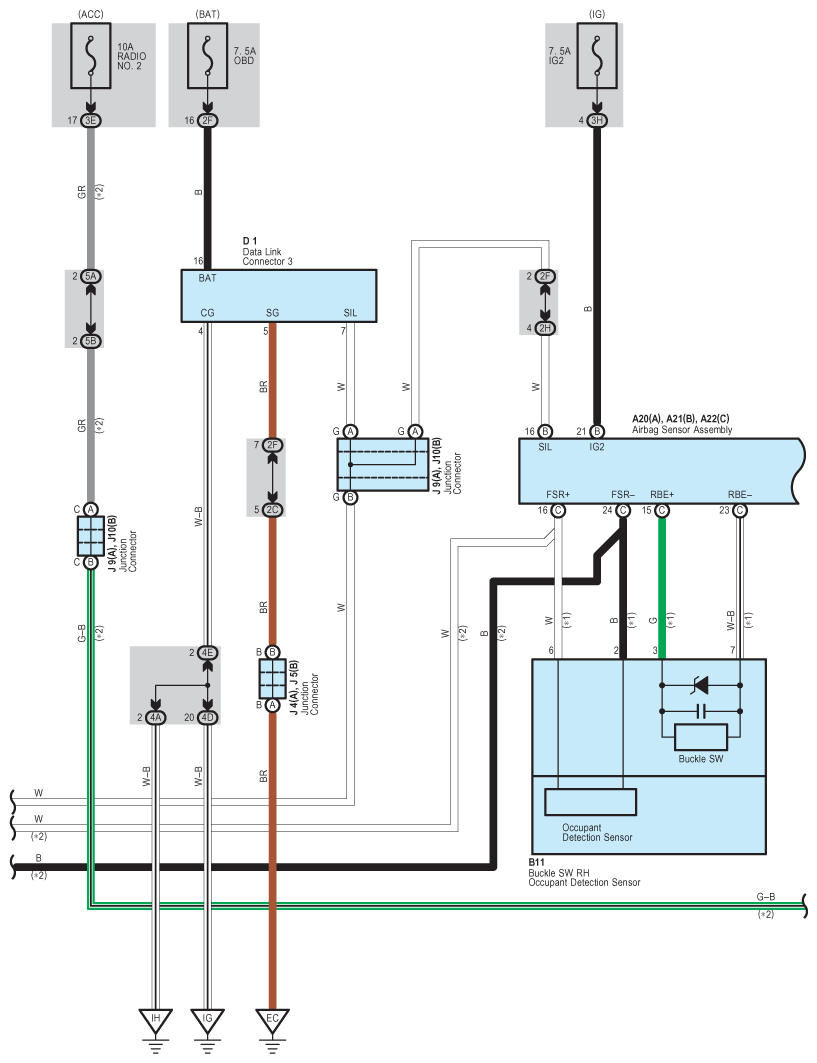

Fig 2: SRS - Circuit Diagram (2 Of 6)

G07612053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

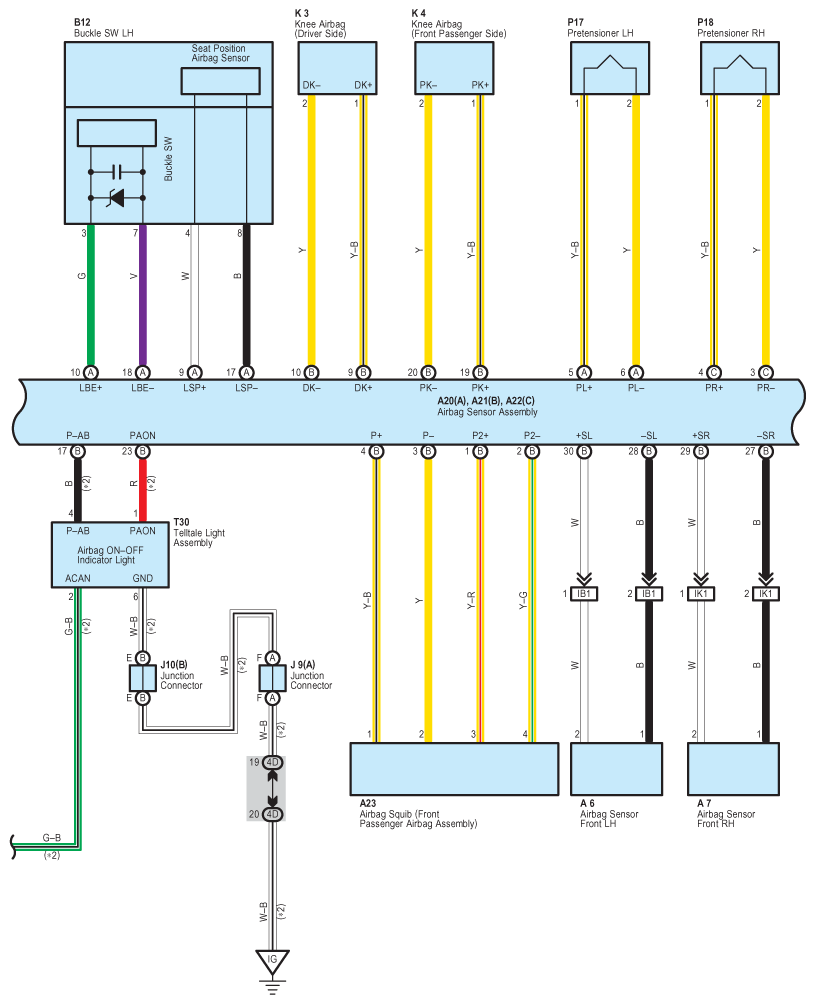

Fig 3: SRS - Circuit Diagram (3 Of 6)

G07612054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

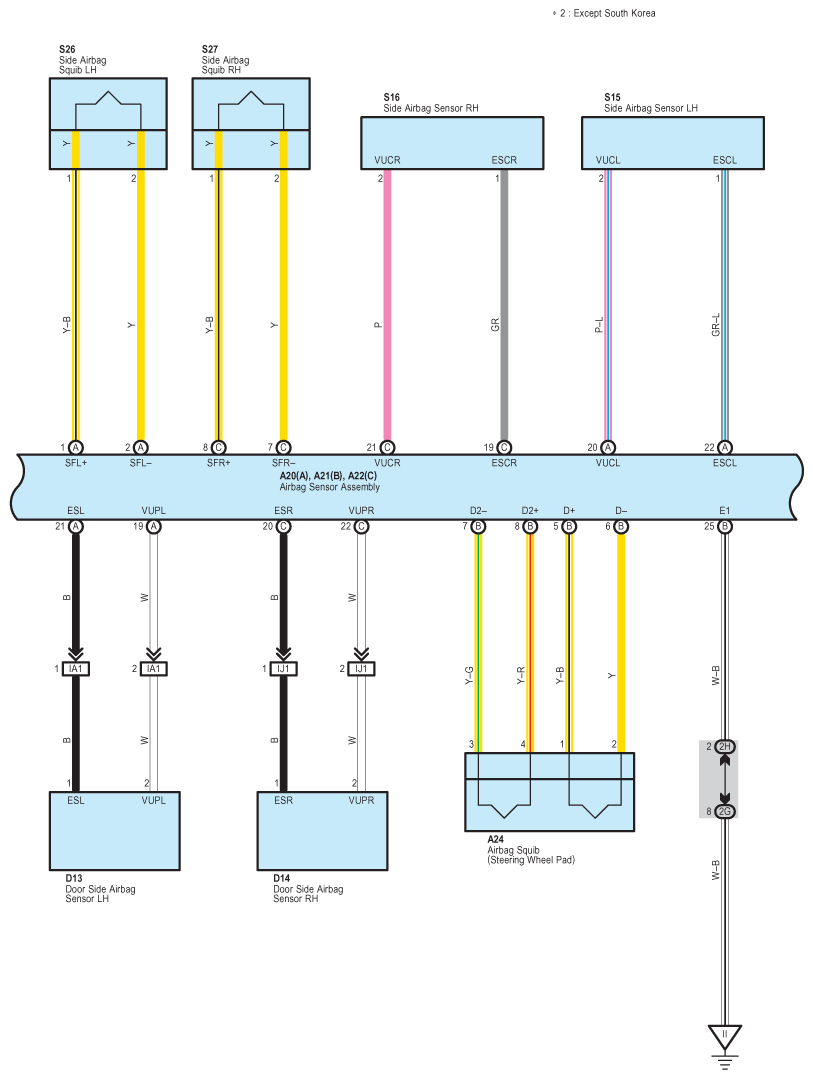

Fig 4: SRS - Circuit Diagram (4 Of 6)

G07612055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

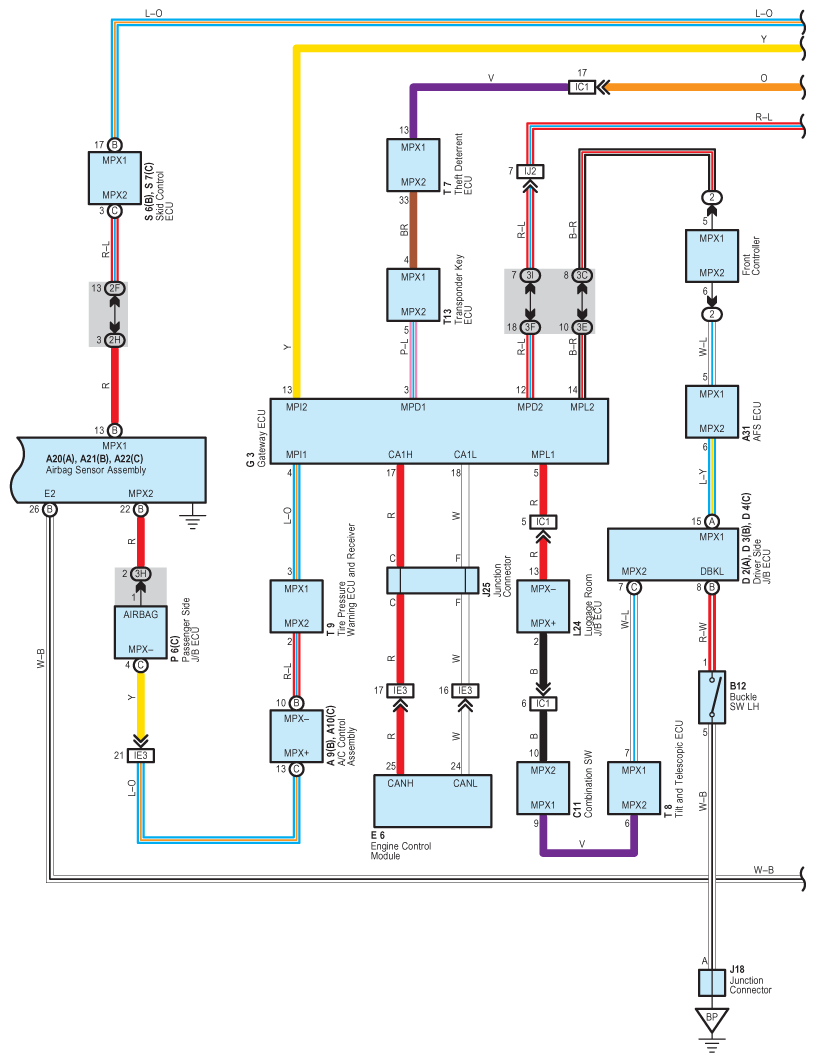

Fig 5: SRS - Circuit Diagram (5 Of 6)

G07612056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

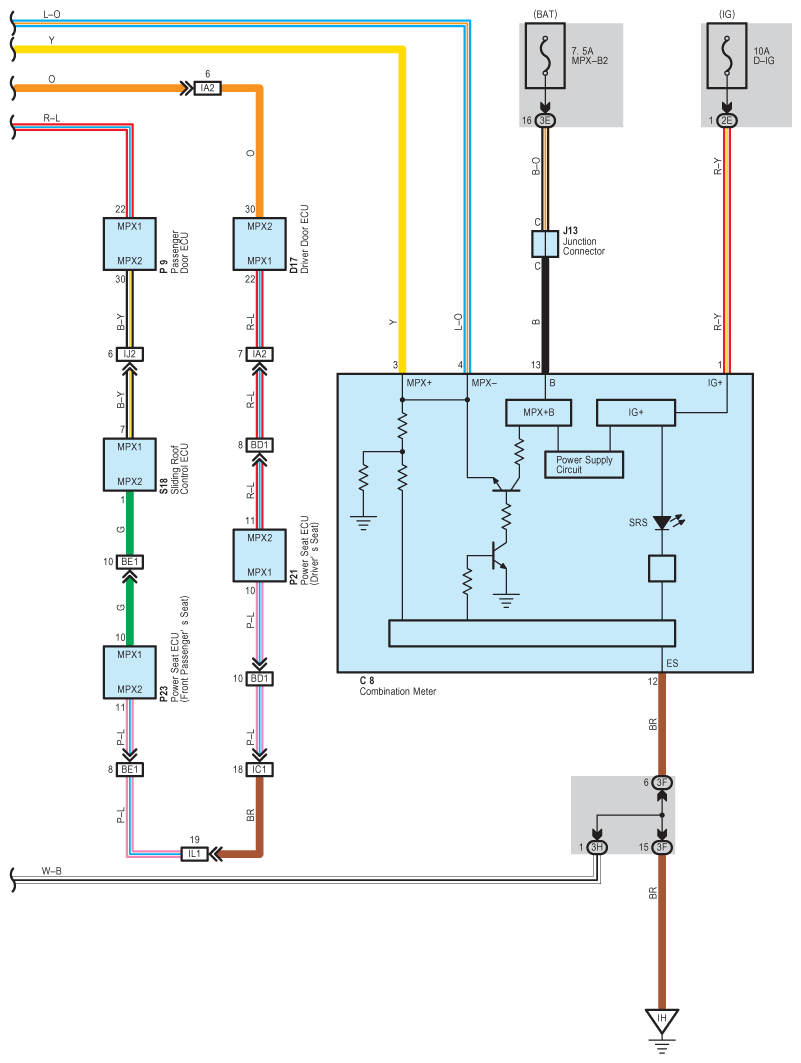

Fig 6: SRS - Circuit Diagram (6 Of 6)

G07612057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
