Stop Light: Notes

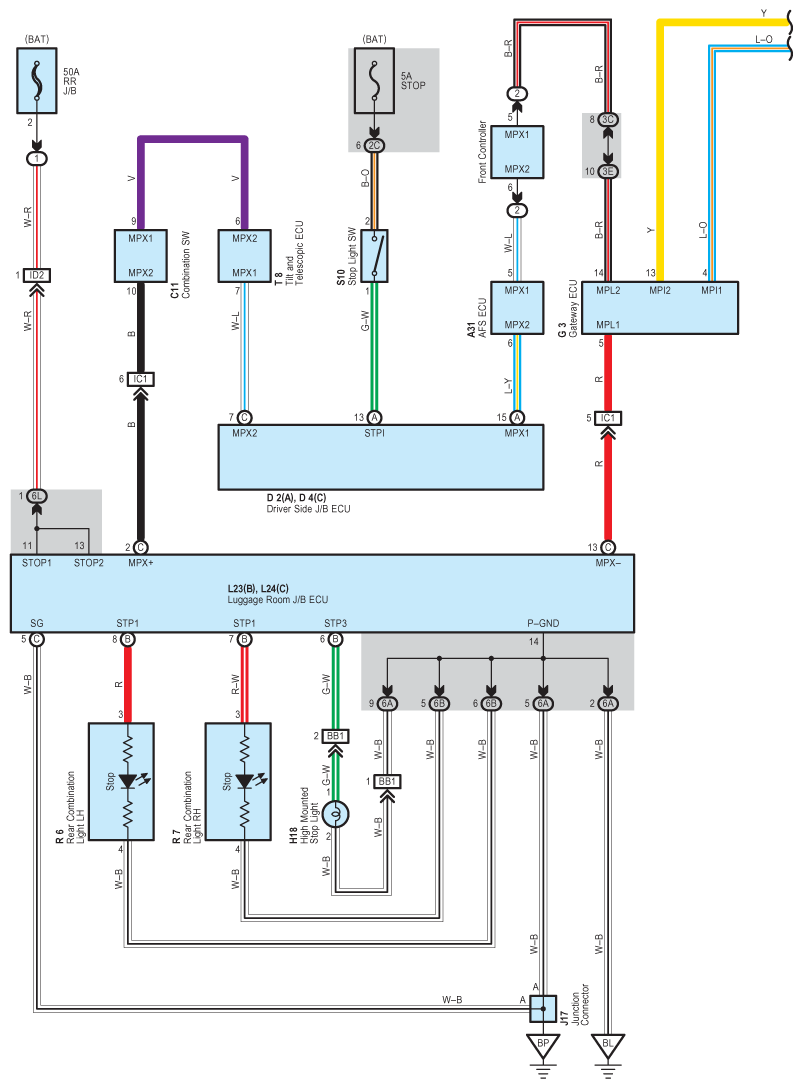

Fig 1: Stop Light - Circuit Diagram (1 Of 2)
G07611979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

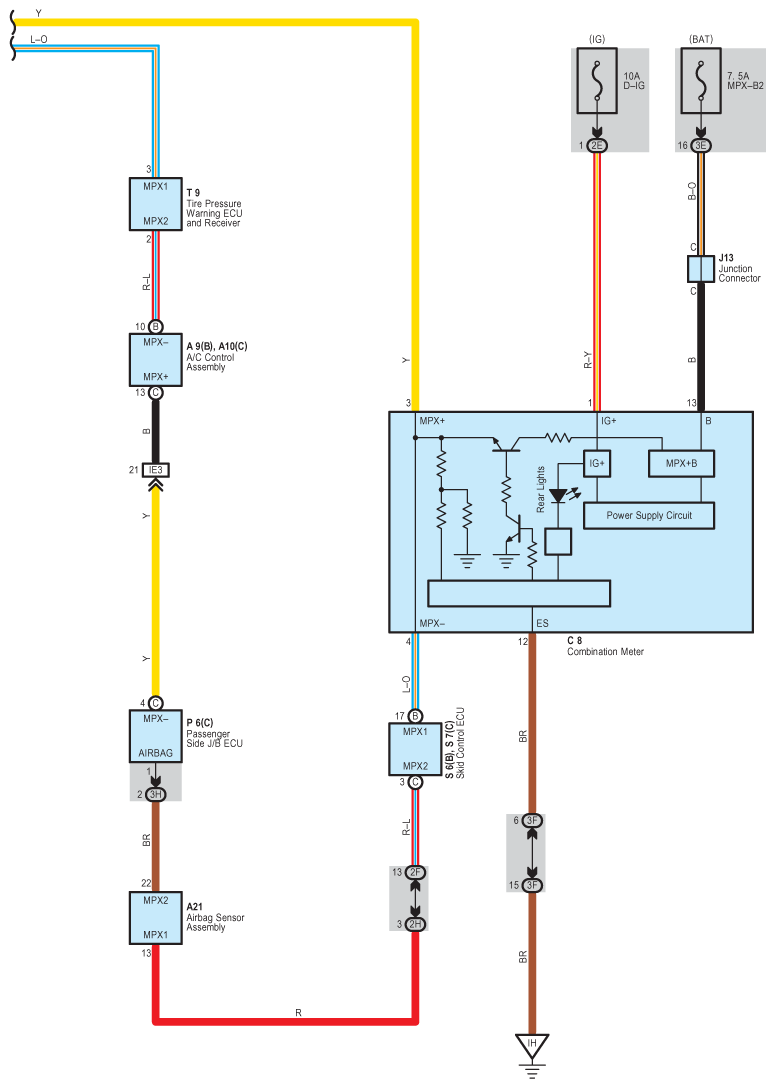

Fig 2: Stop Light - Circuit Diagram (2 Of 2)
G07611980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
