Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

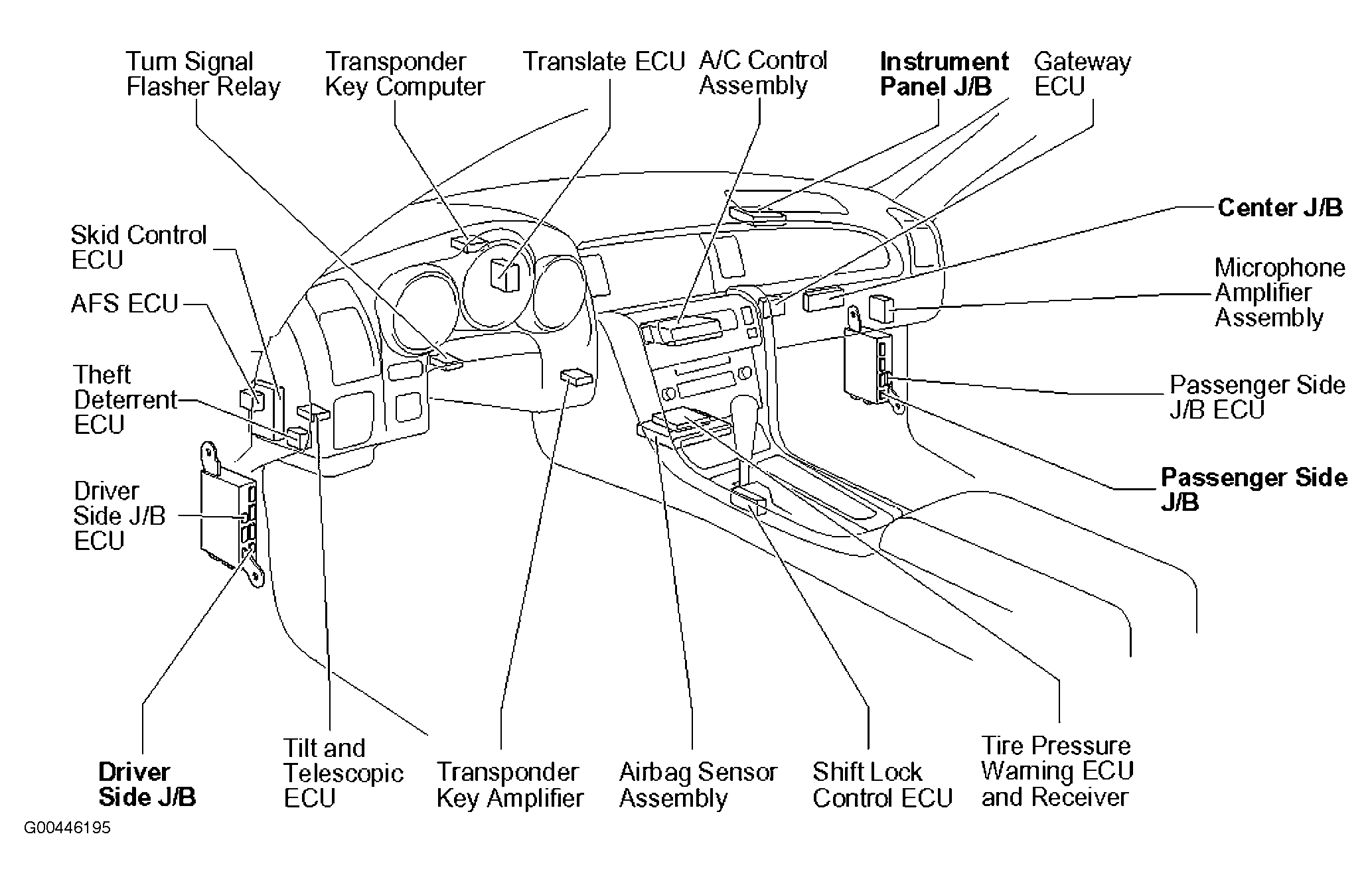

| Center J/B | Behind right center of dash. See Figure. |
| Driver Side J/B | Behind left kick panel. See Figure. |

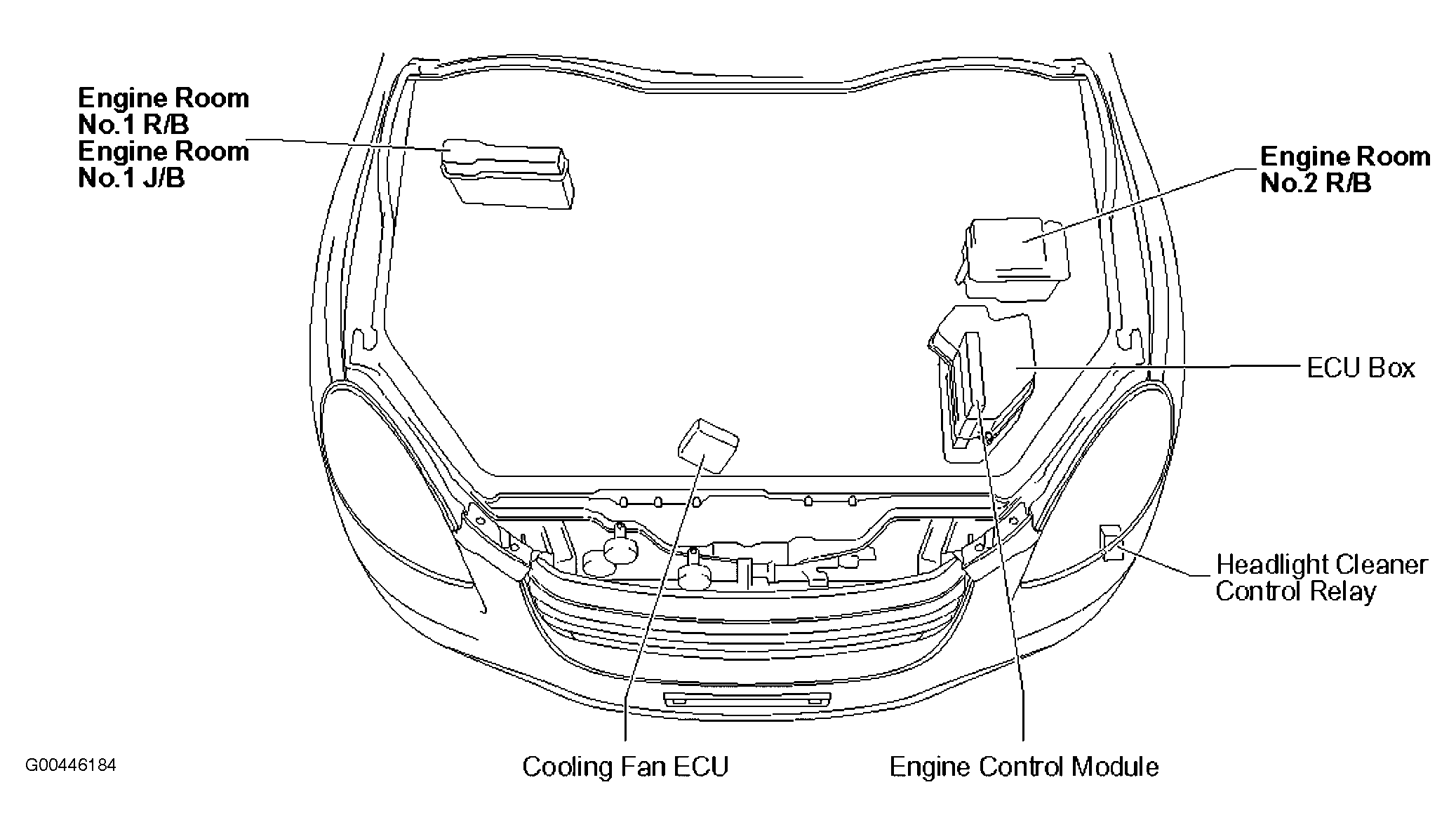

| ECU Box | At left front corner of engine compartment. See Figure. |
| Engine Room No. 1 J/B | On right side of engine compartment, behind strut tower. See Figure. |
| Engine Room No. 1 R/B | On right side of engine compartment, behind strut tower. See Figure. |
| Engine Room No. 2 R/B | On left side of engine compartment, forward of strut tower. See Figure. |
| Instrument Panel J/B | Behind upper center of dash. See Figure. |

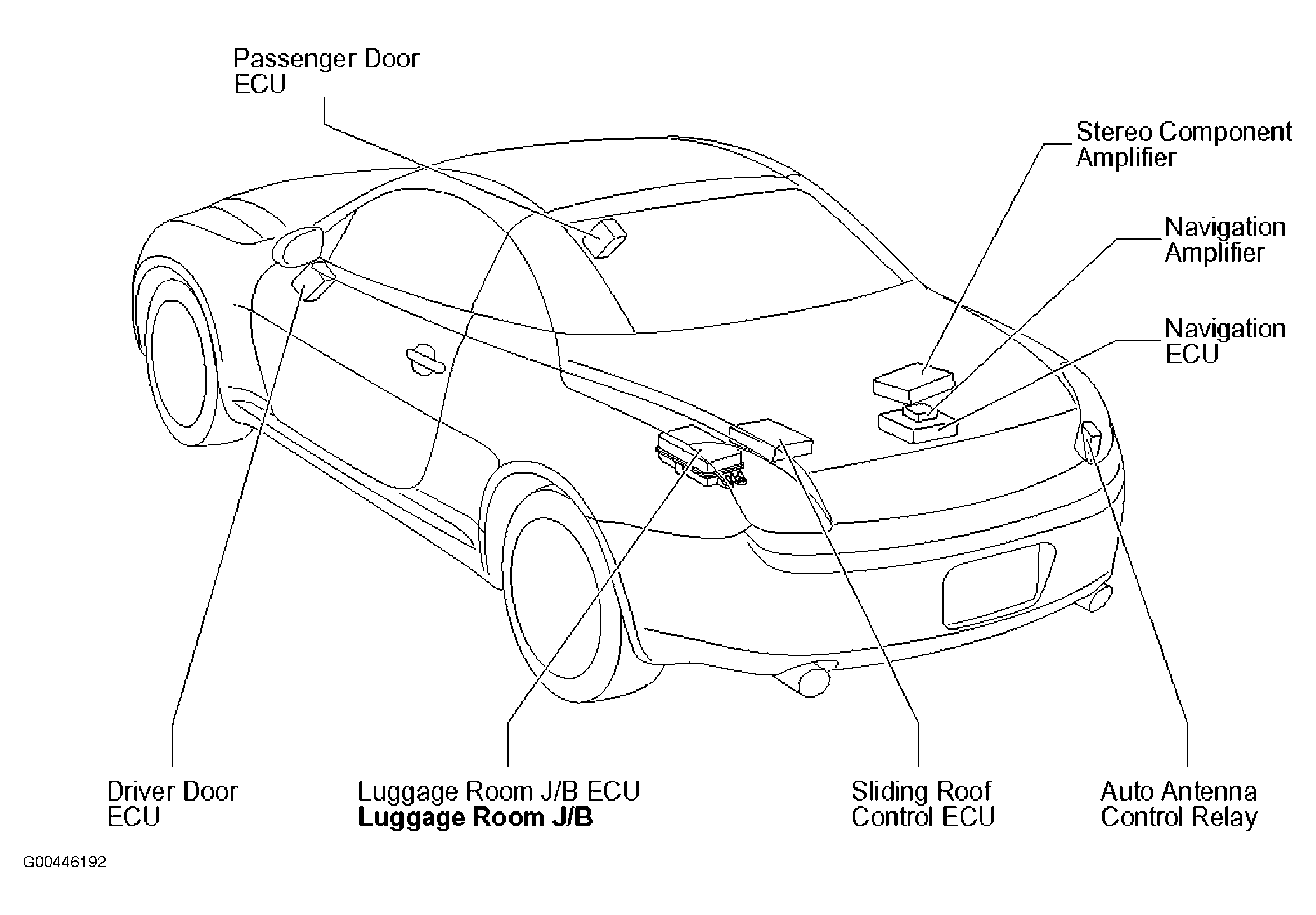

| Luggage Room J/B | At left rear corner of luggage compartment. See Figure. |
| Passenger Side J/B | Behind right kick panel. See Figure. |
