Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

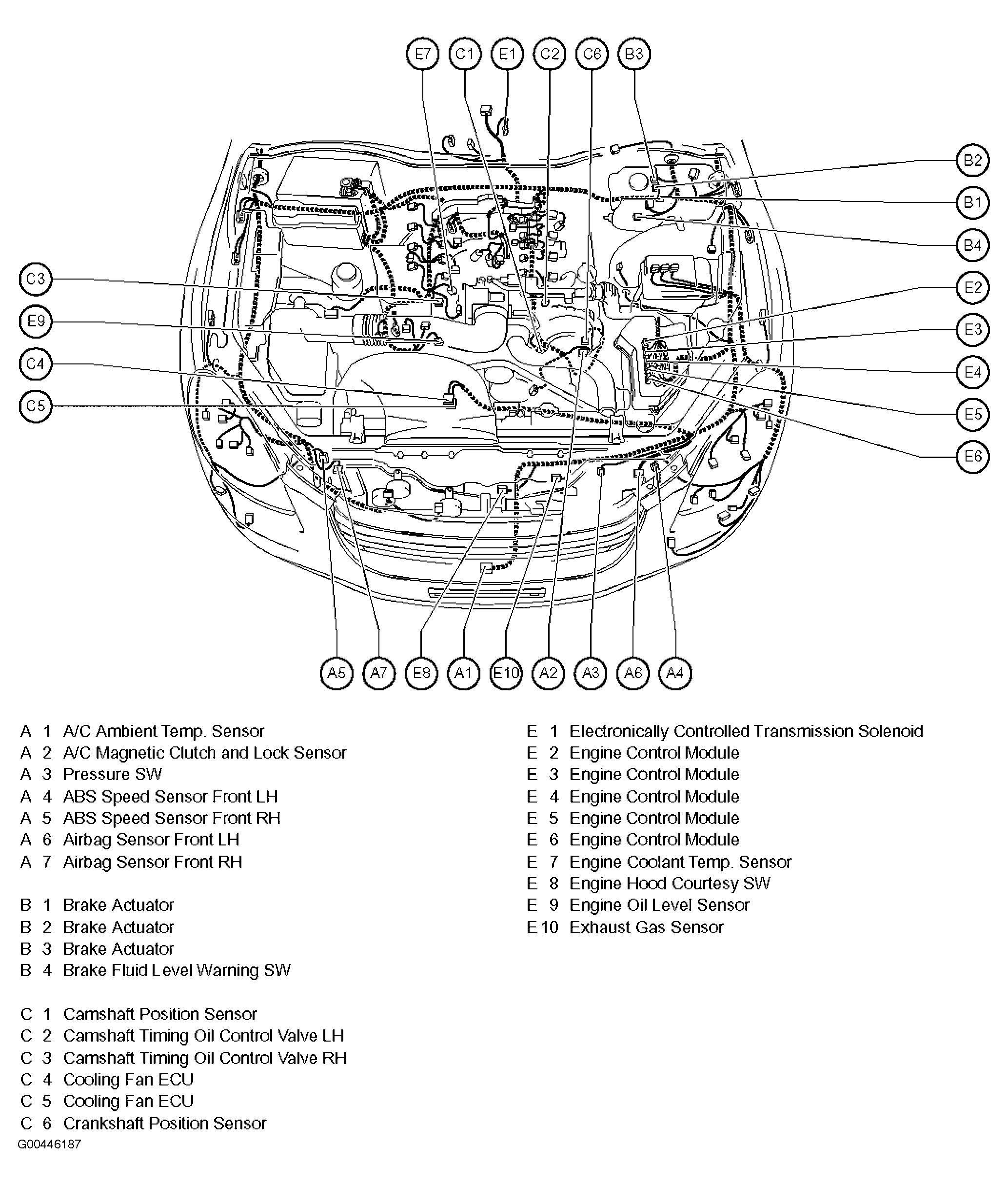

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

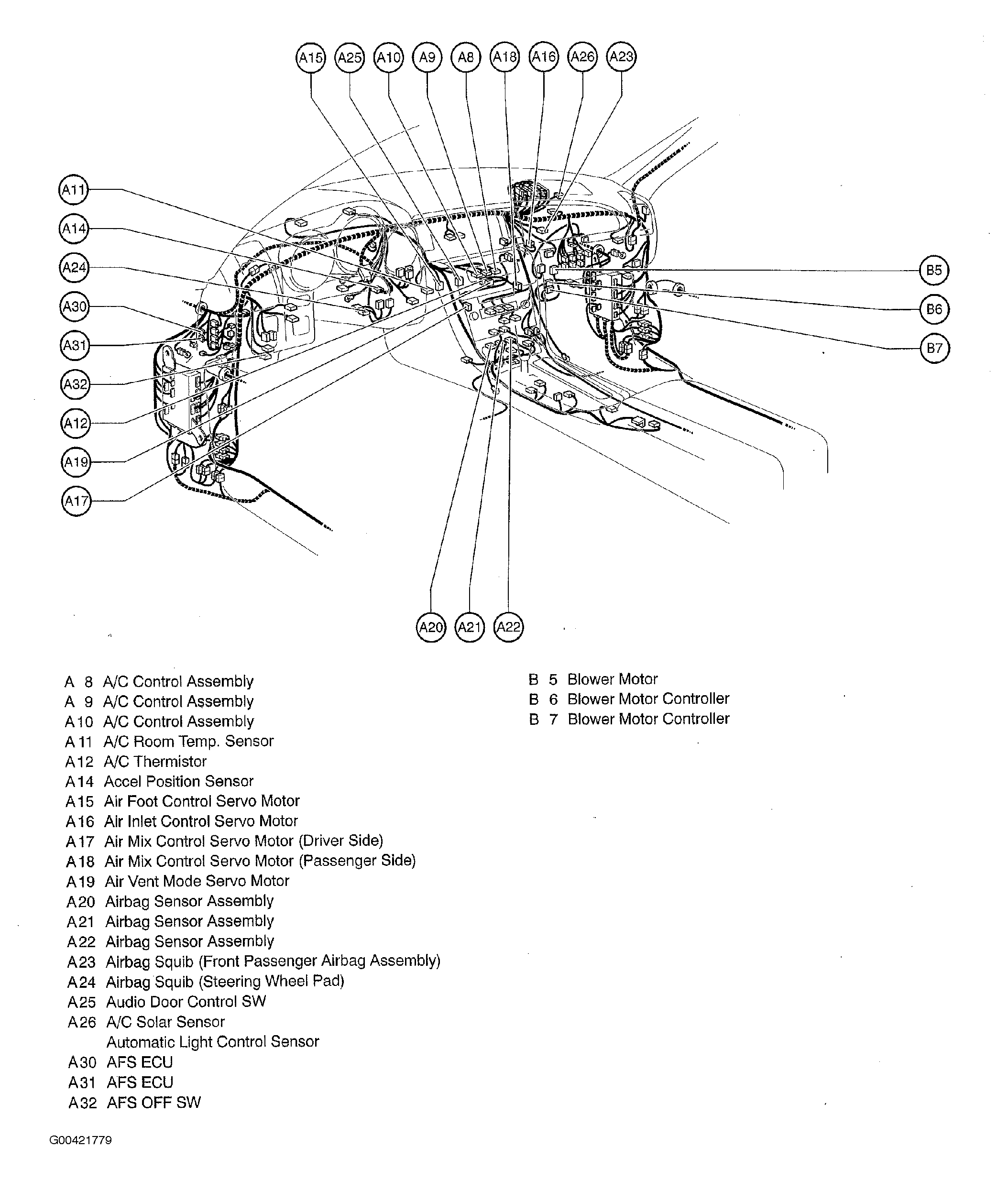

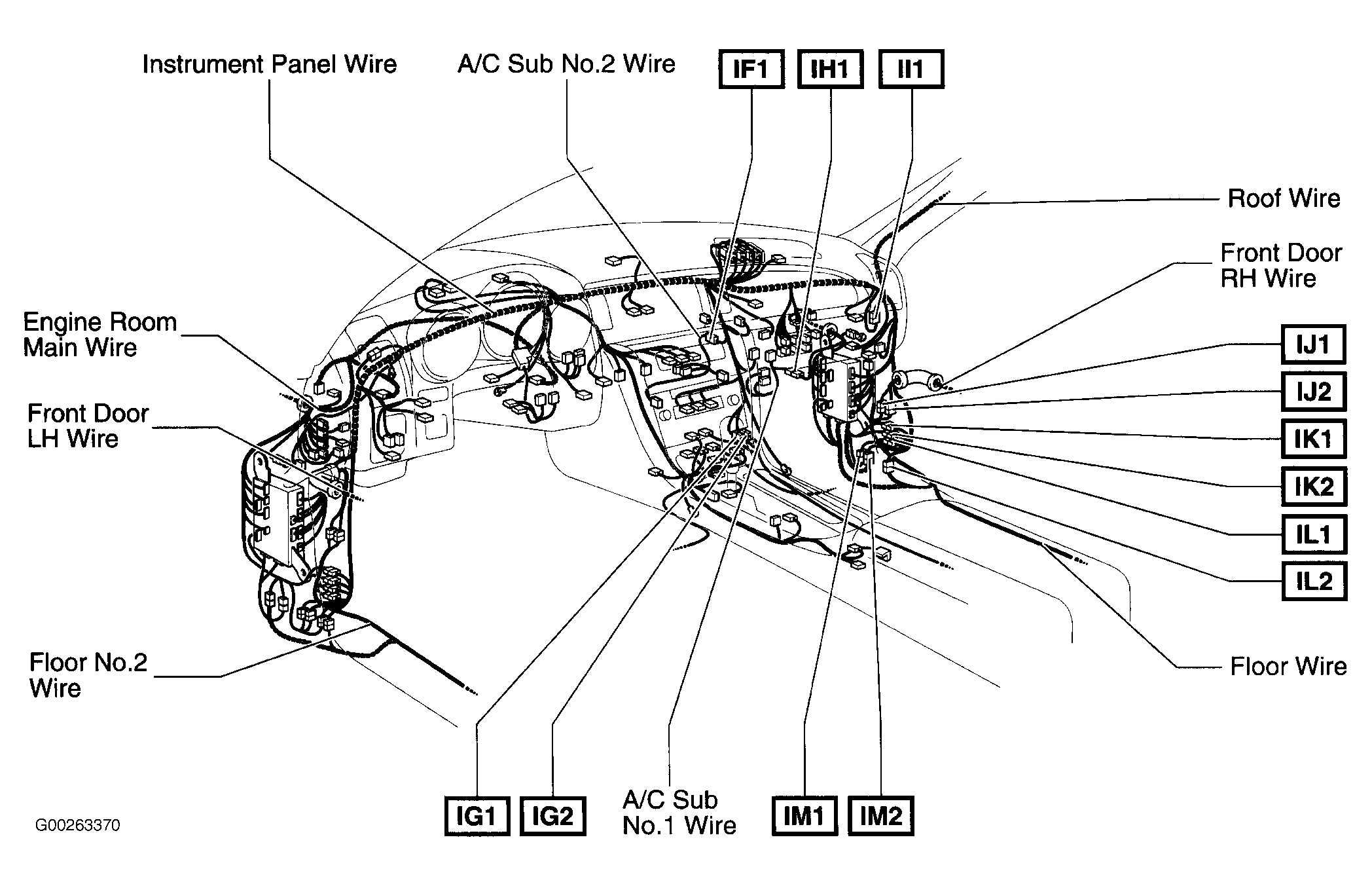

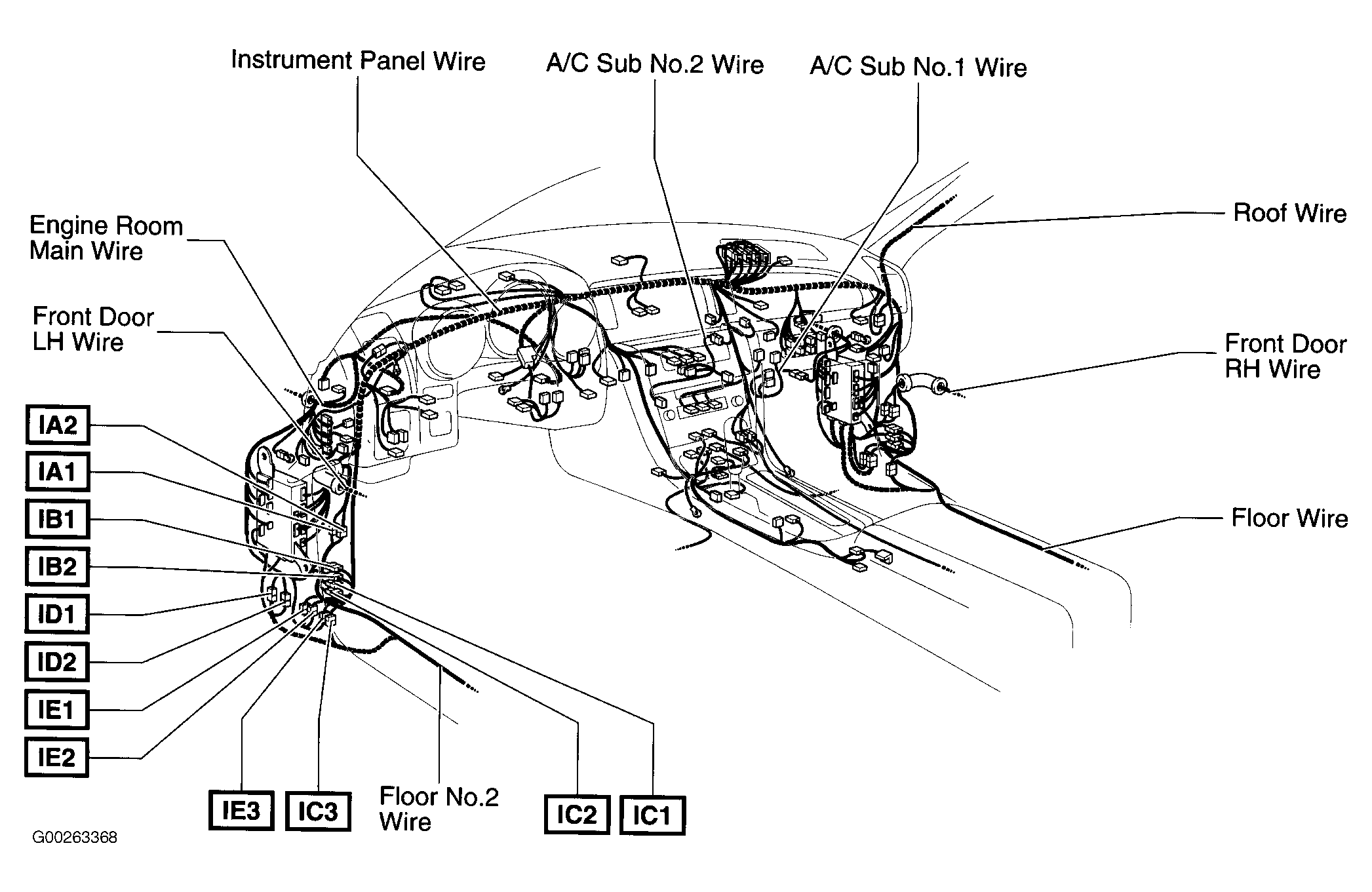

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

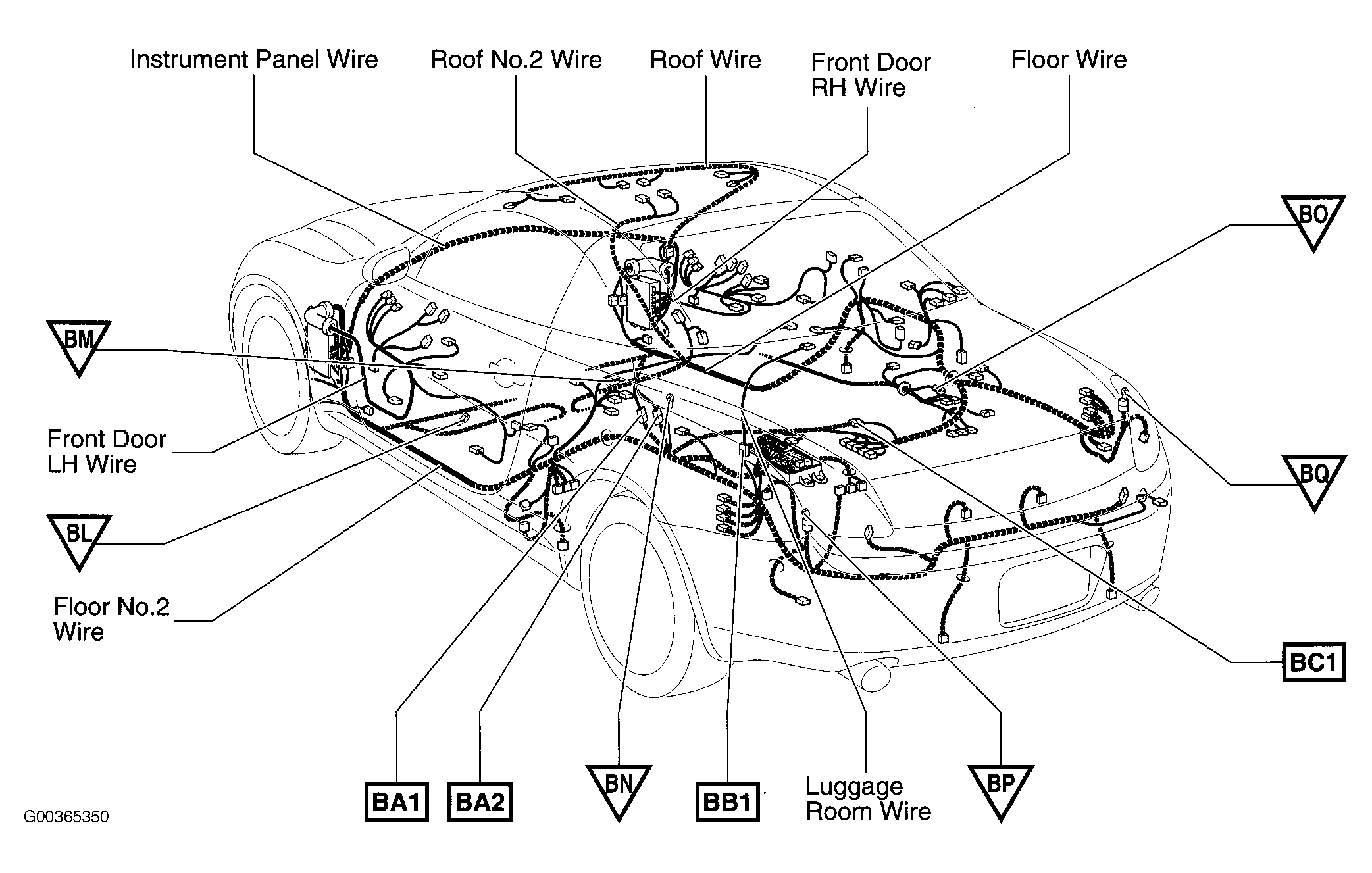

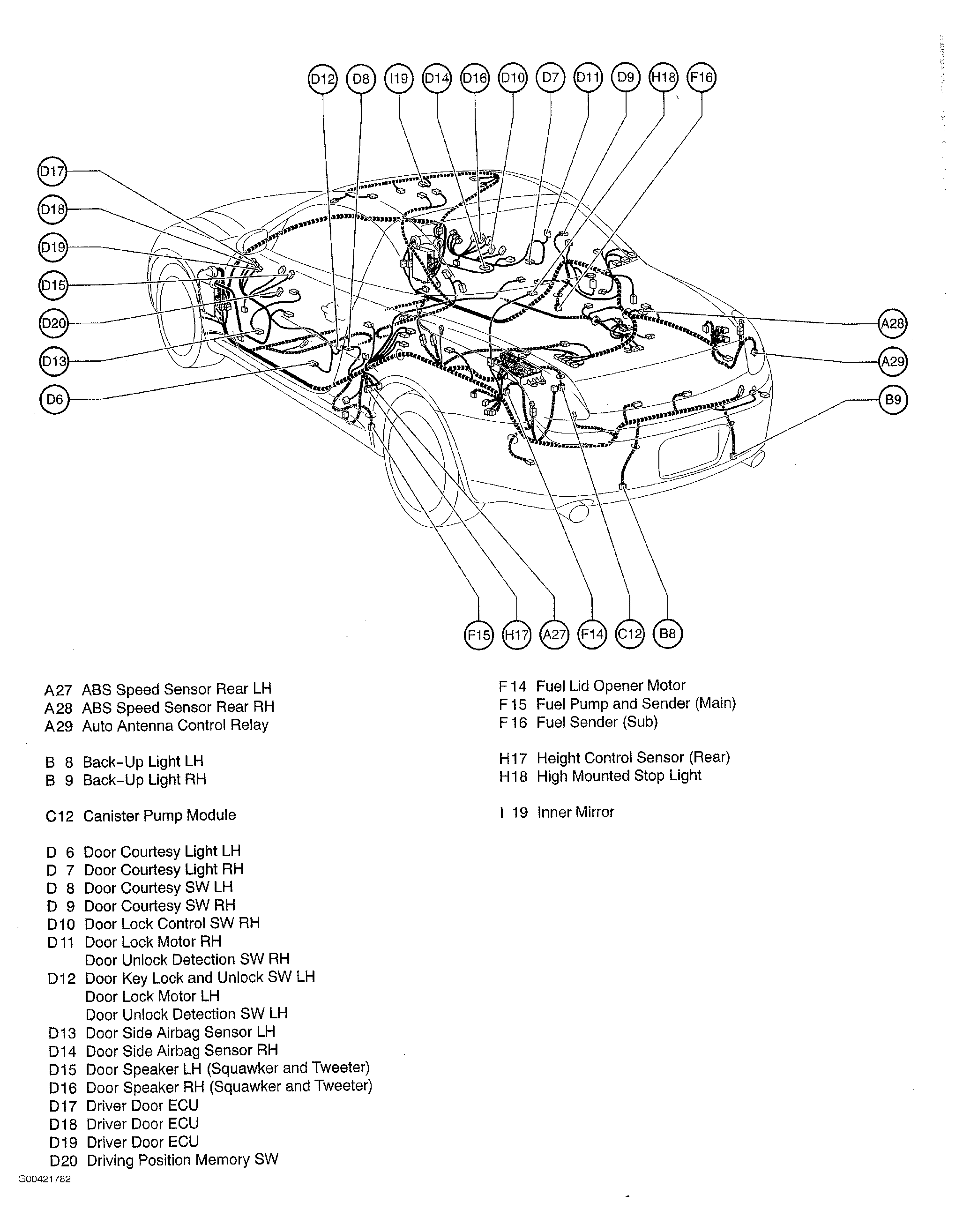

Fig 3: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

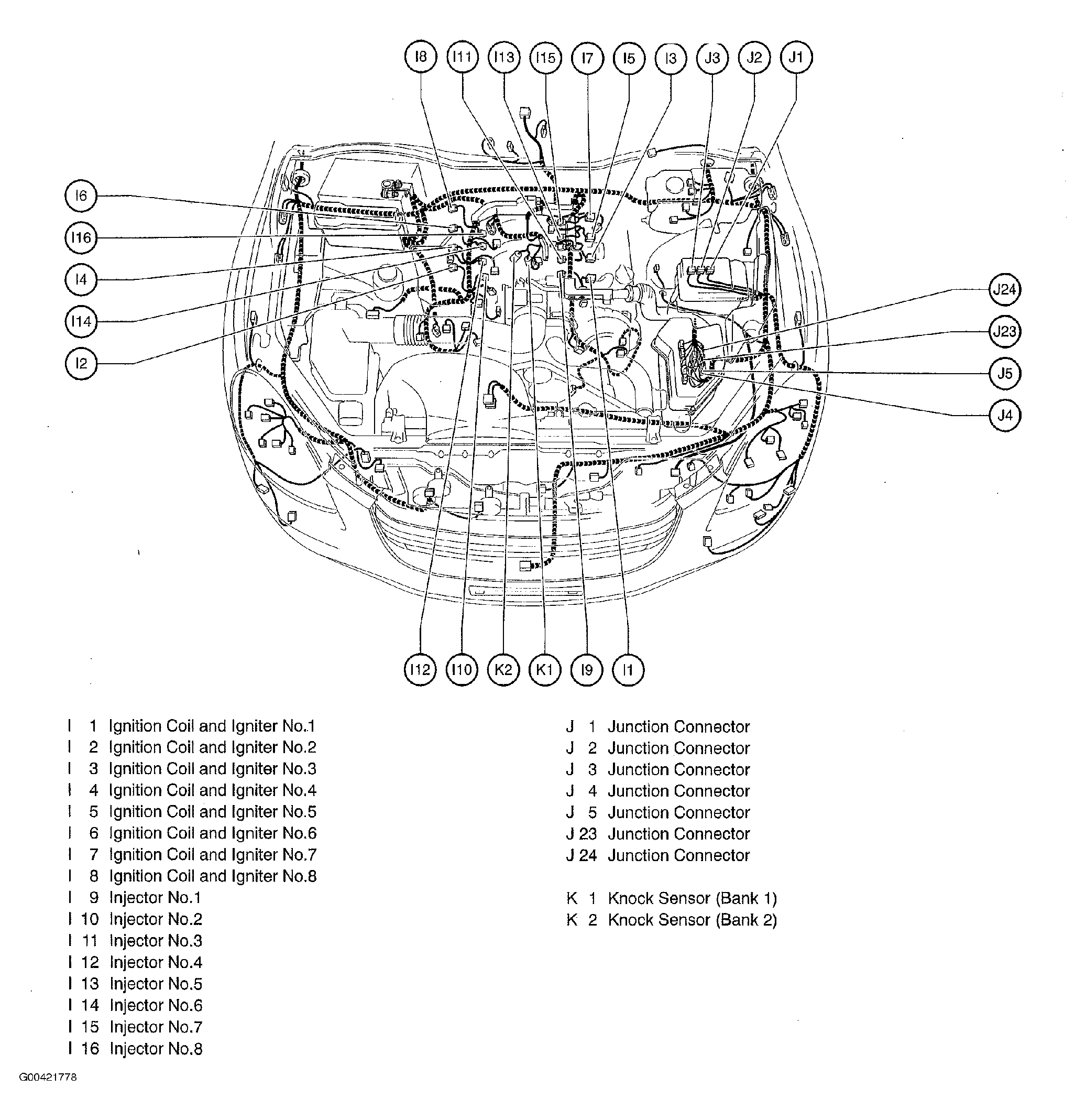

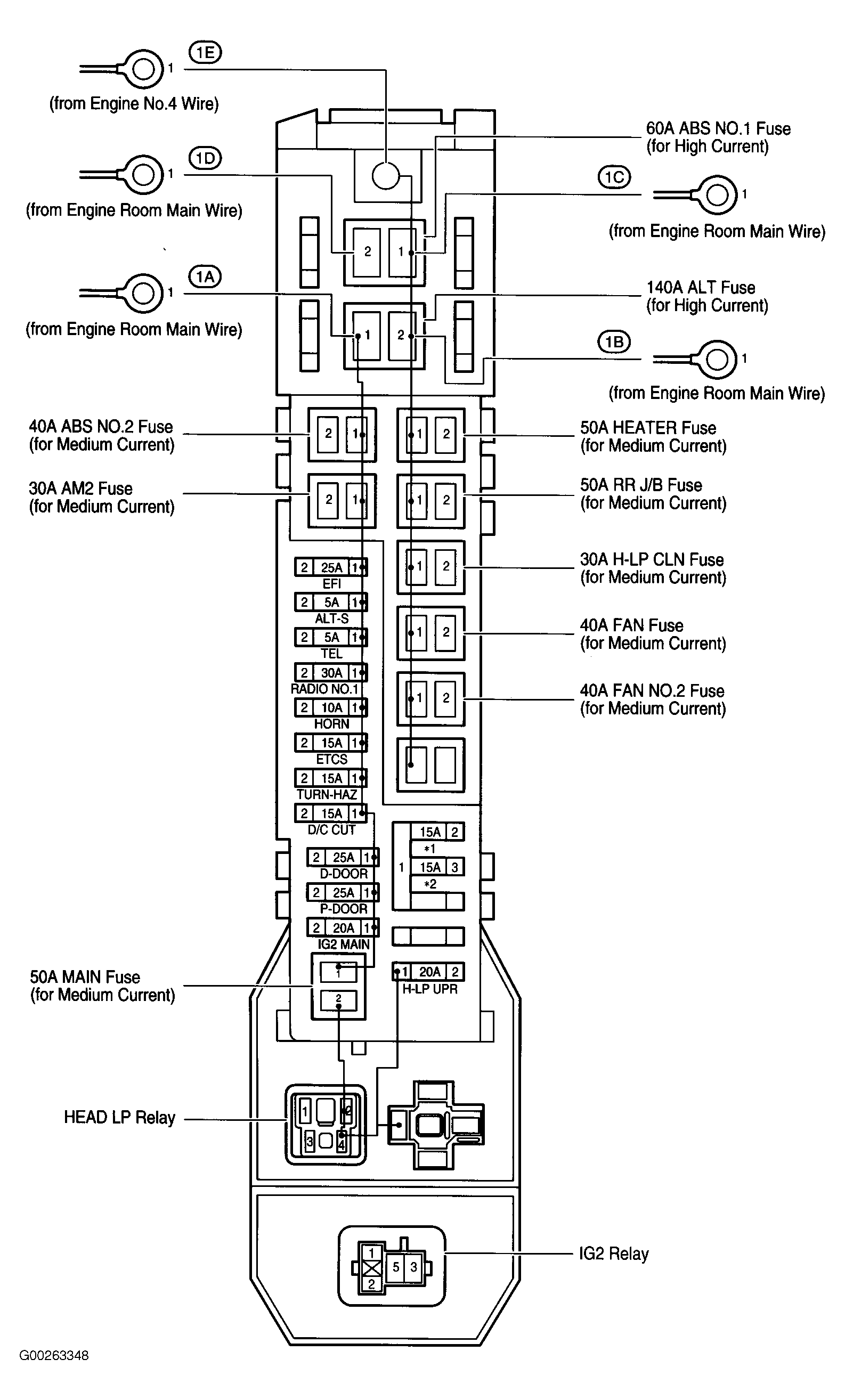

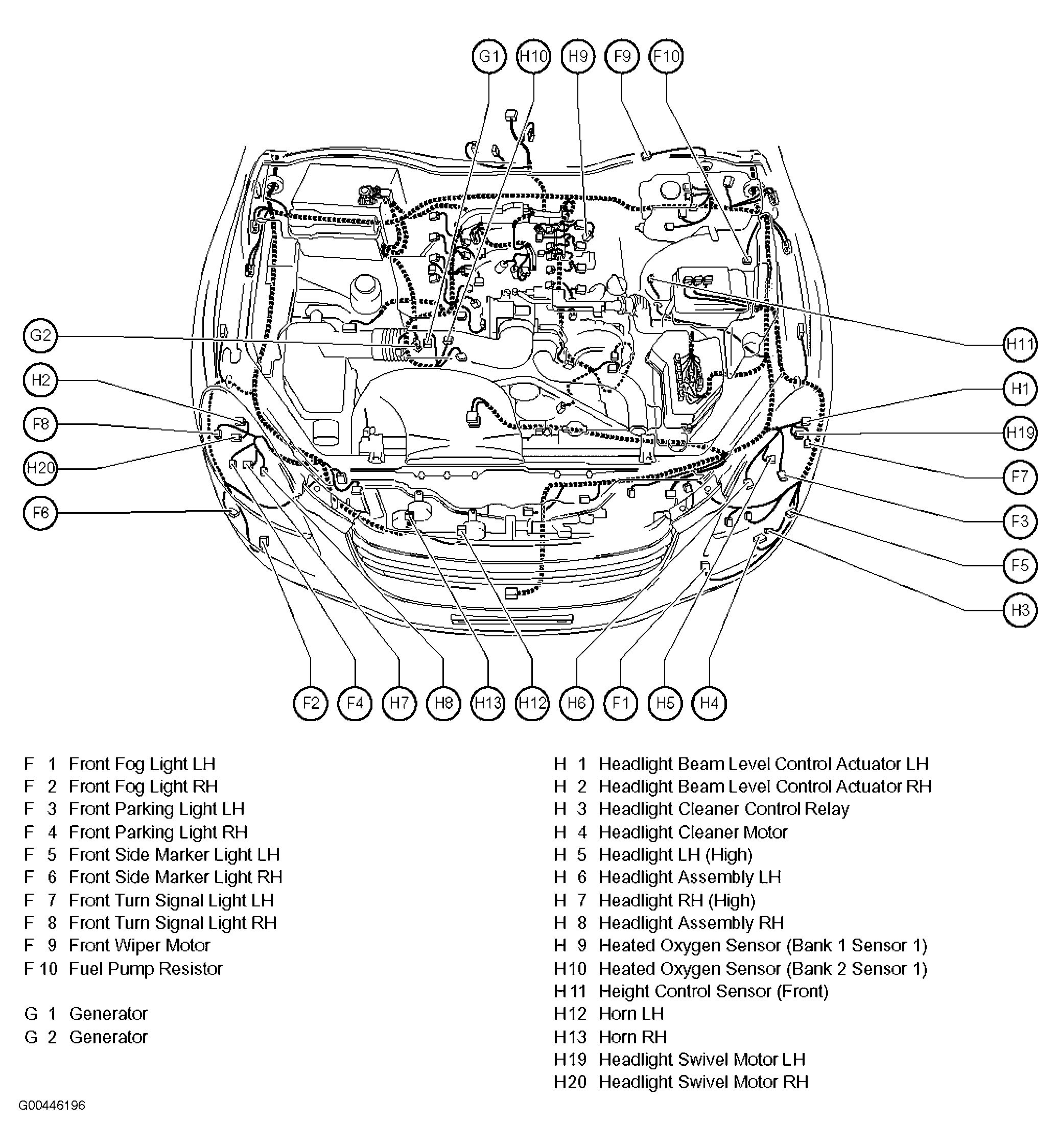

Fig 4: Engine Room No. 1 R/B & J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 1 JUNCTION & RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION

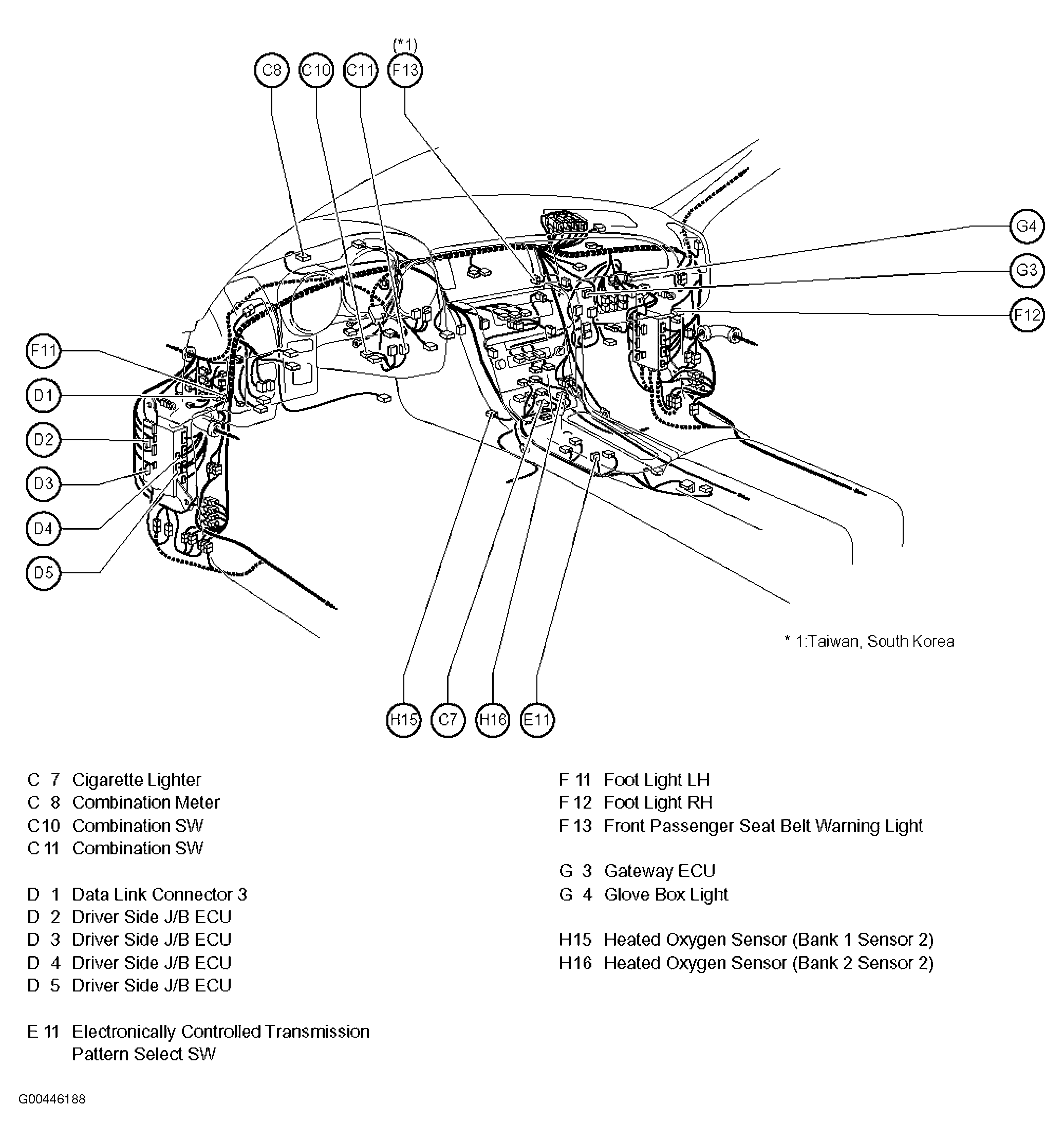

Head LP Relay
IG2 Relay

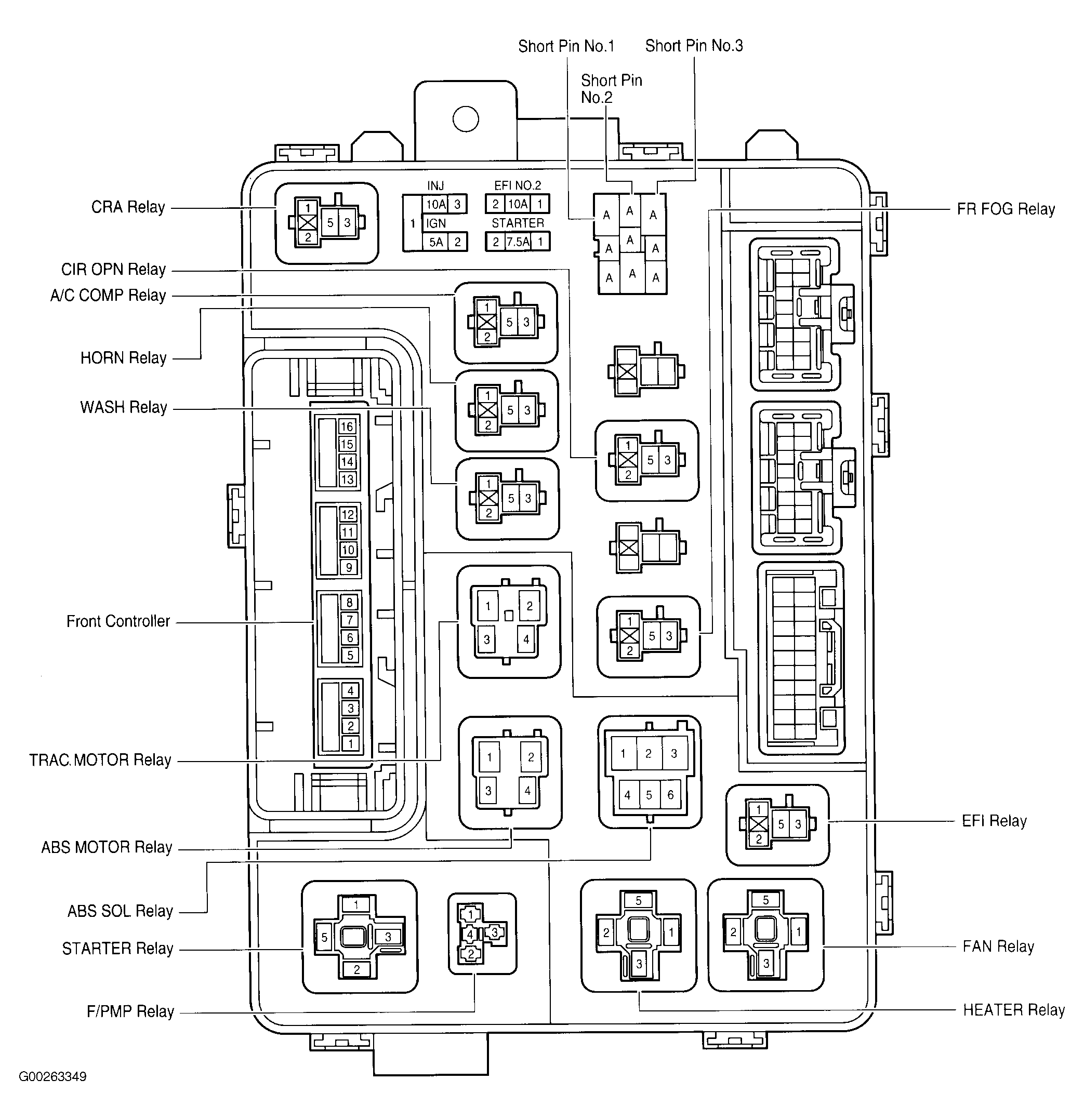

Fig 5: Engine Room No. 2 R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM NO. 2 RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
F/PMP Relay
Starter Relay
ABS SOL Relay
ABS Motor Relay
TRAC Motor Relay
Wash Relay
Horn Relay
A/C COMP Relay
CIR OPN Relay
CRA Relay
FR Fog Relay
EFI Relay
Fan Relay
Heater Relay

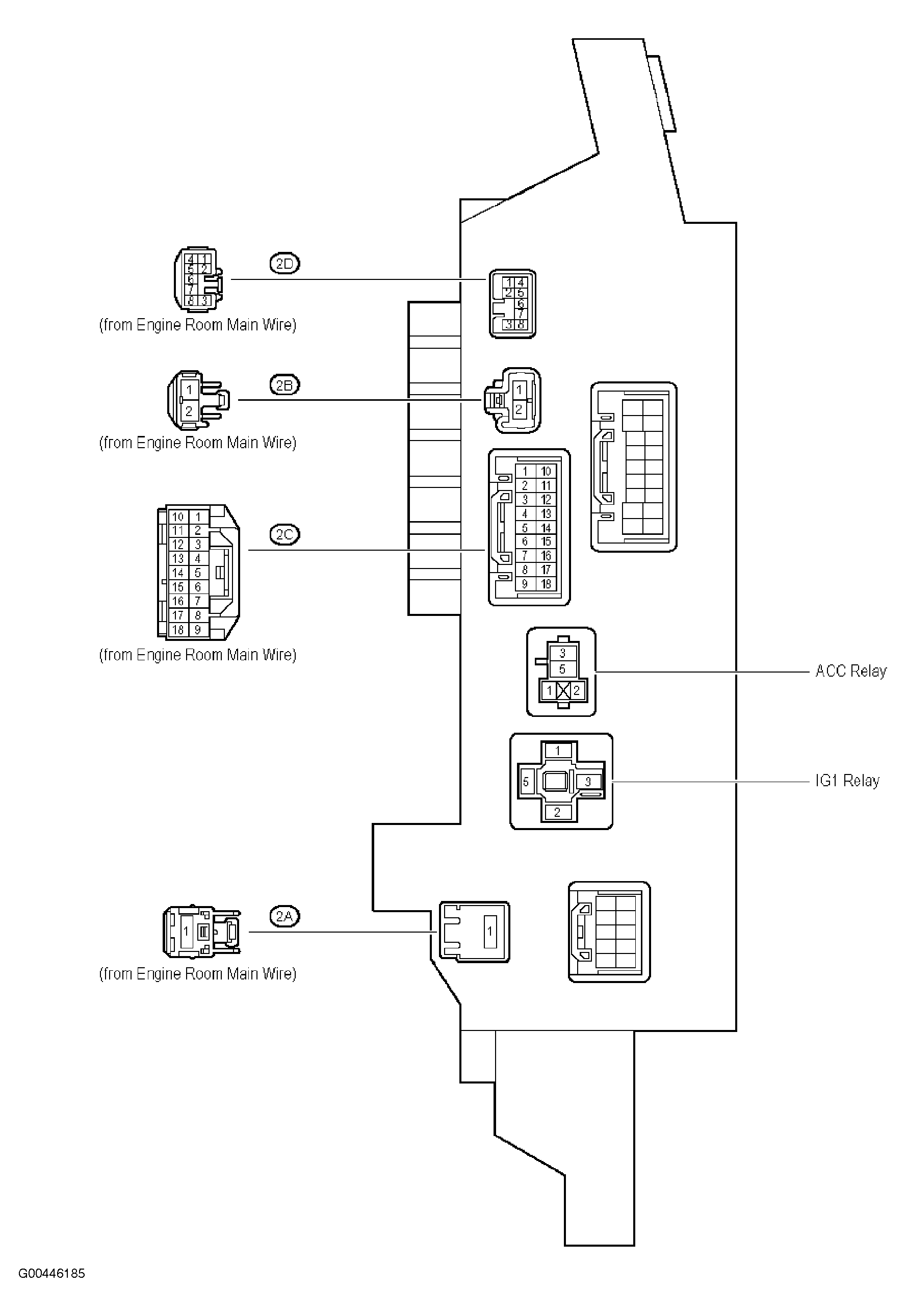

Fig 6: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

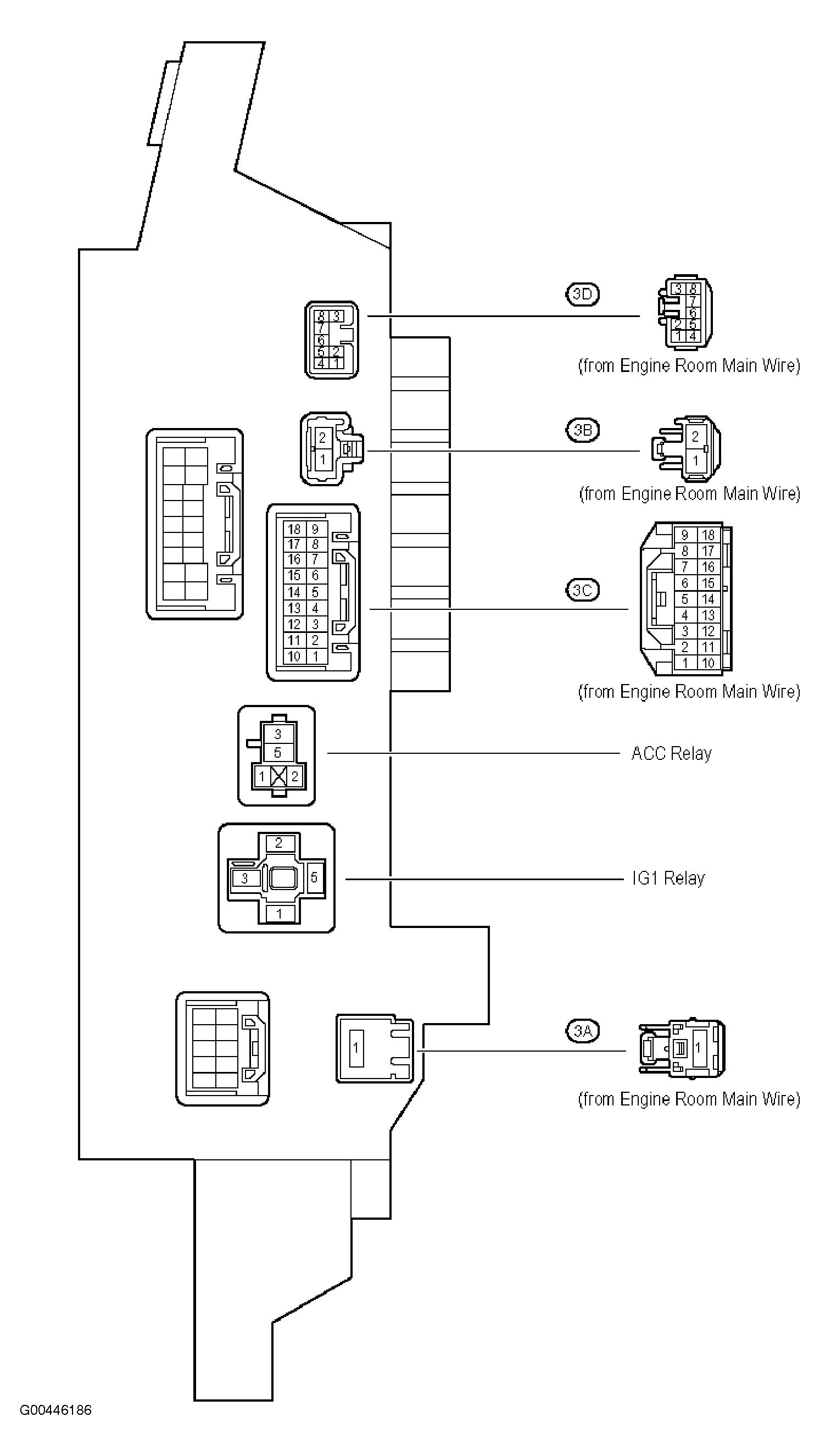

Fig 7: Passenger Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

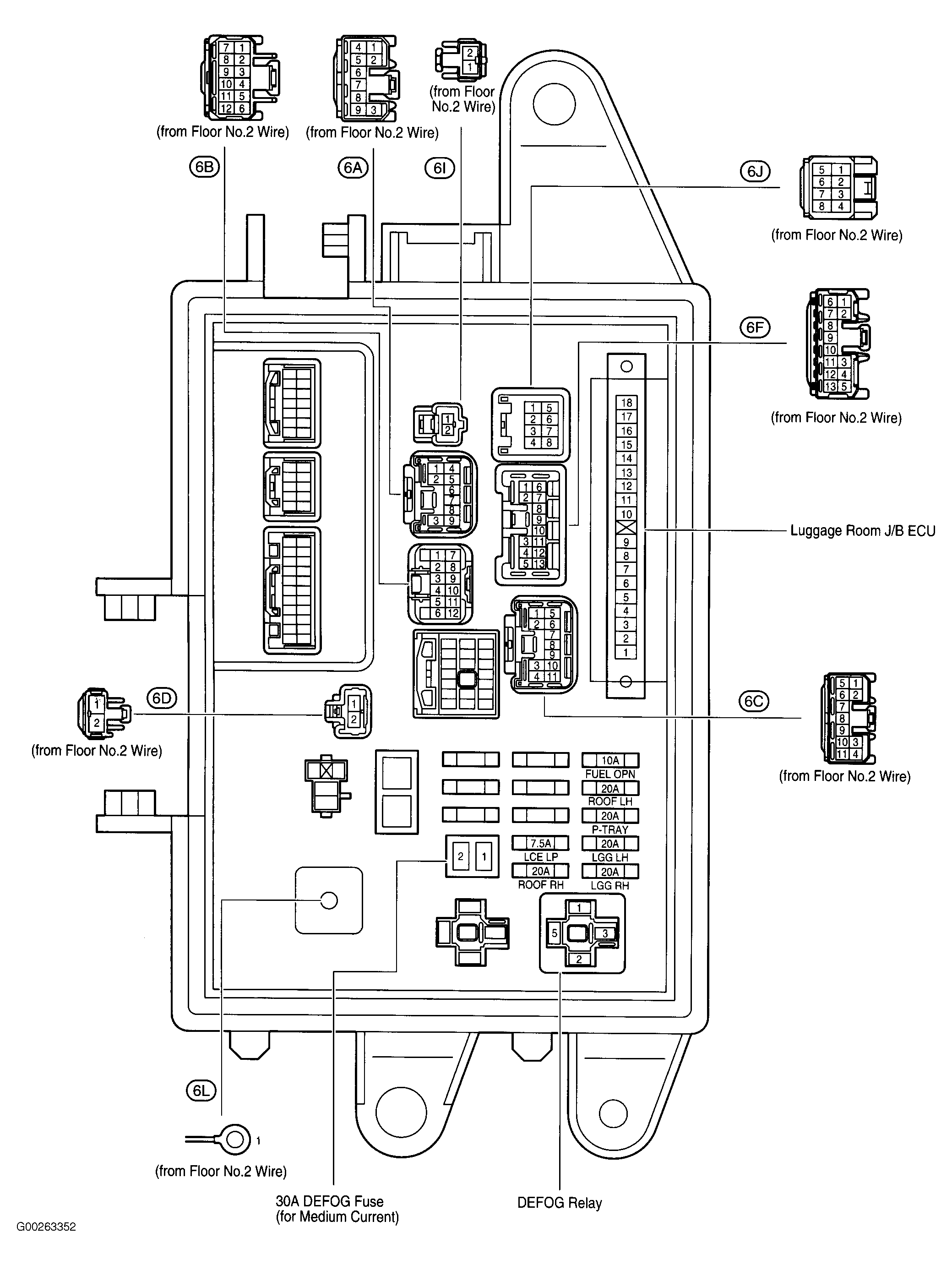

Fig 8: Luggage Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Defog Relay

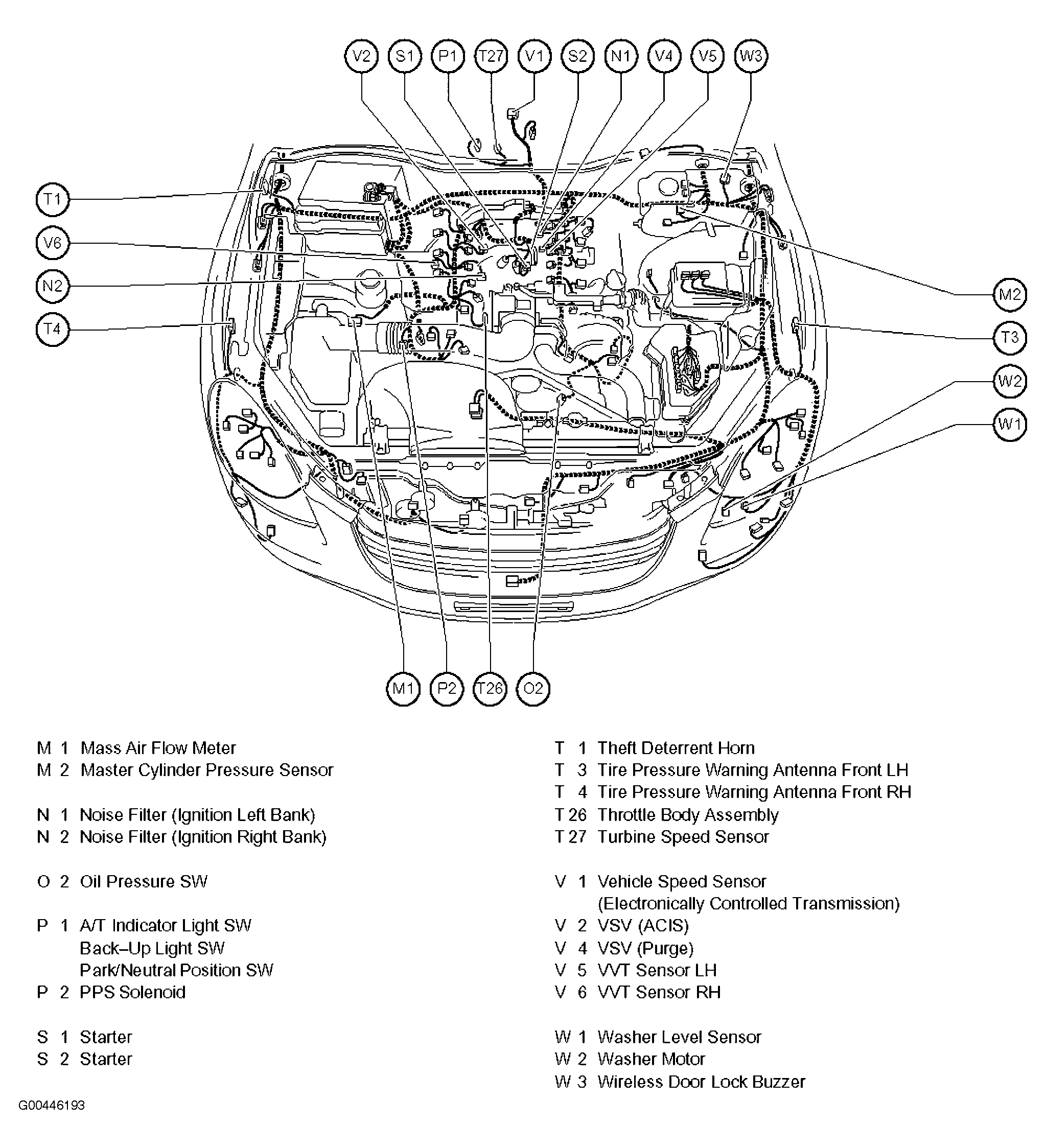

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

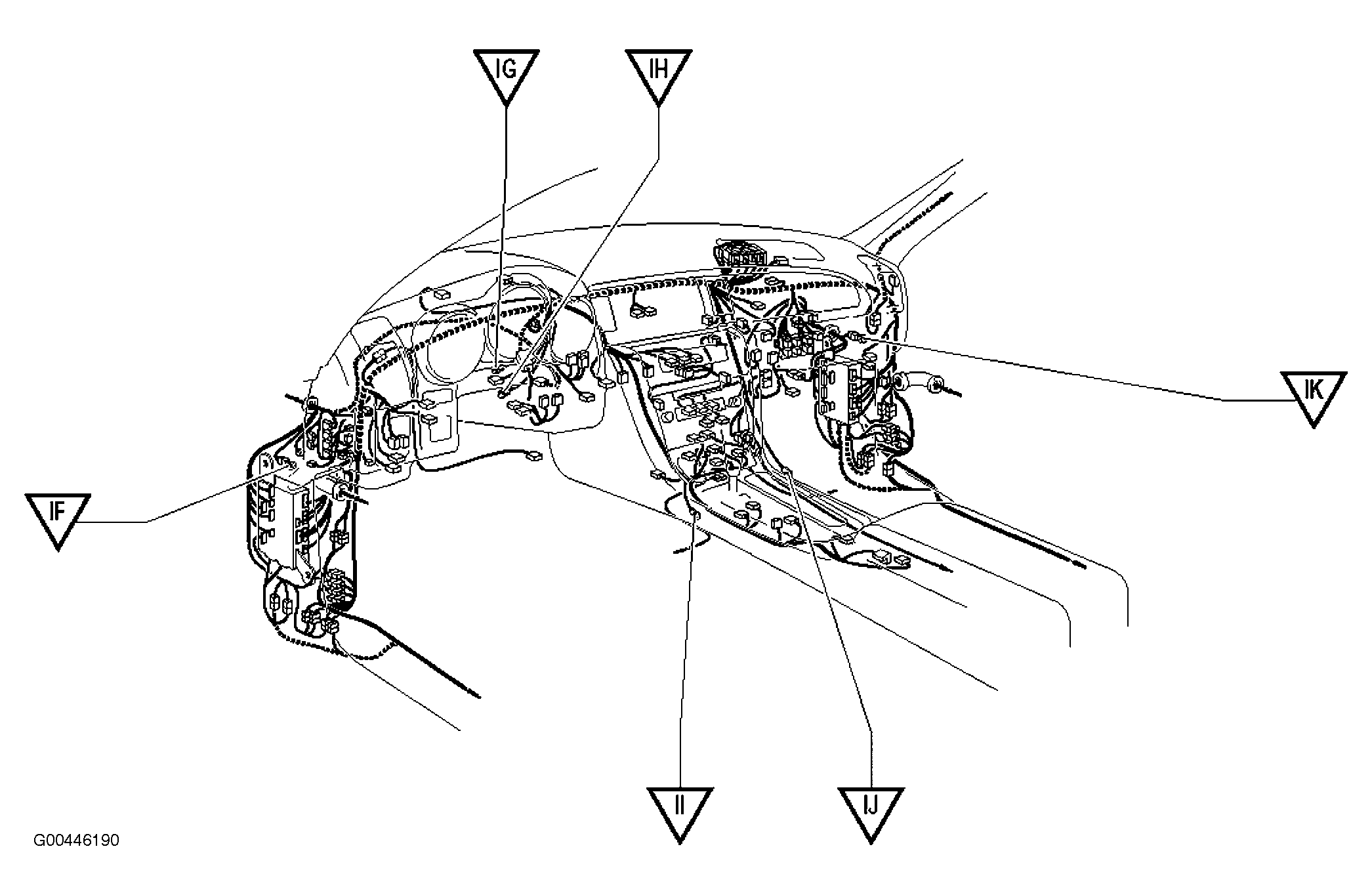

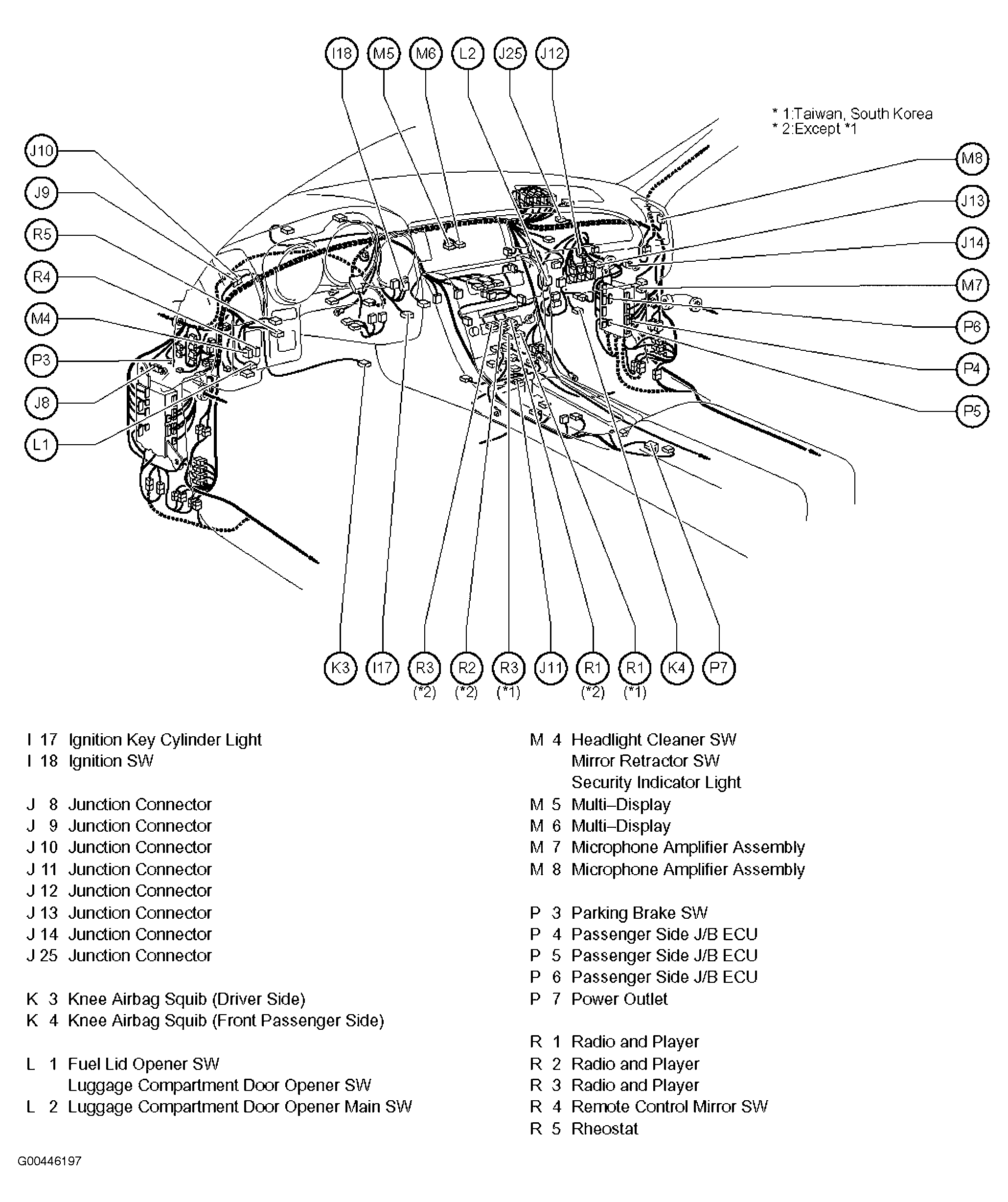

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

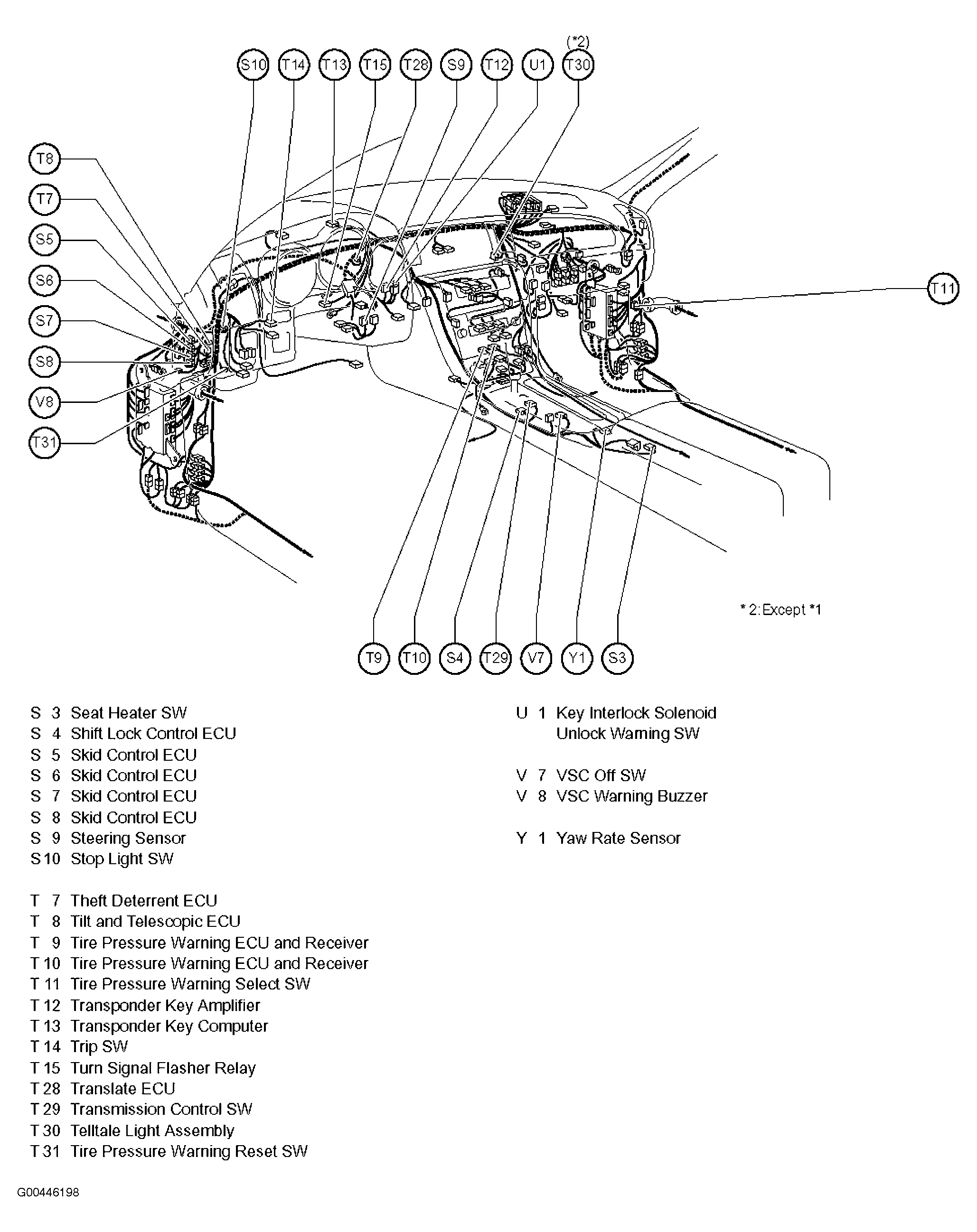

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

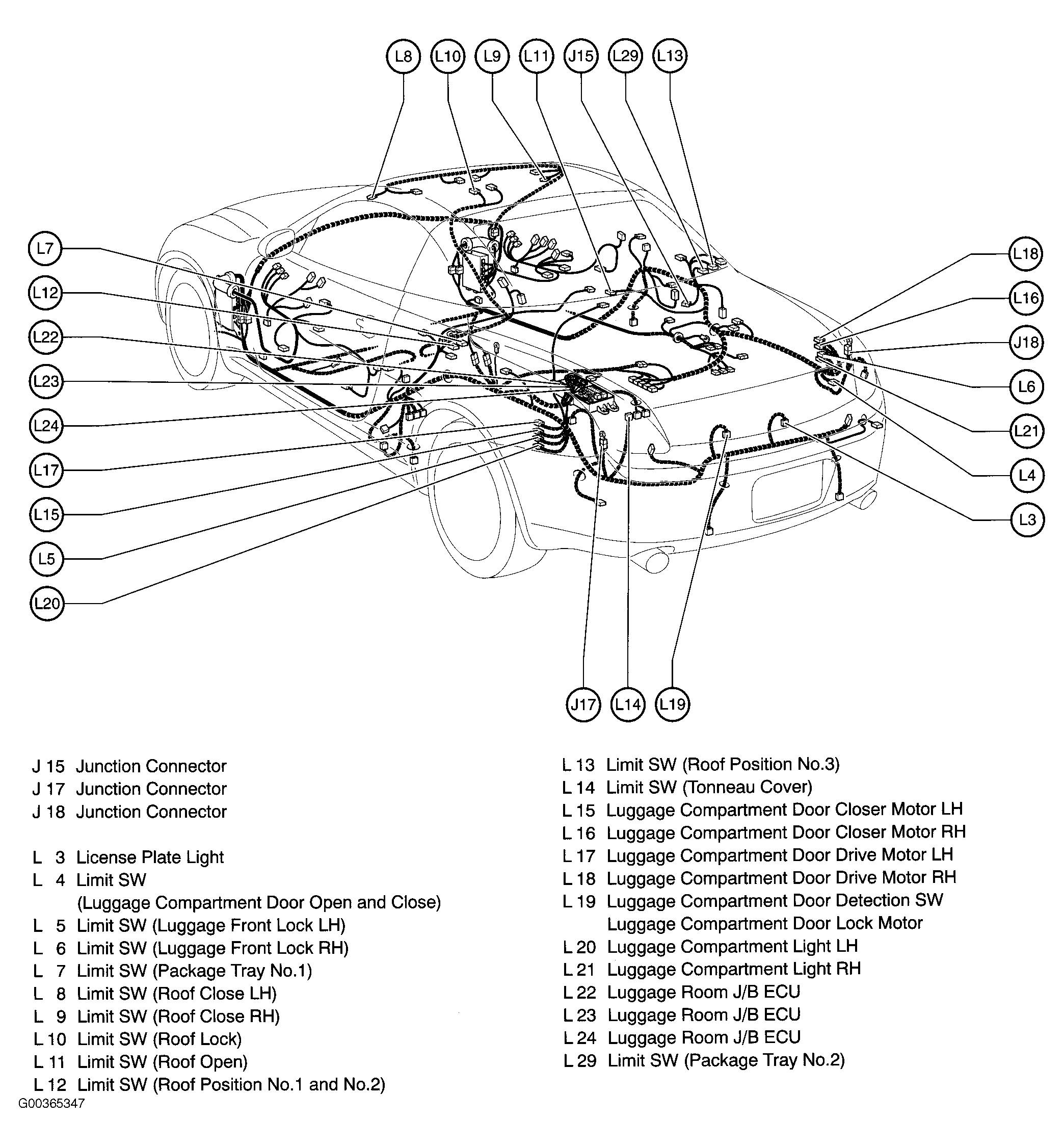

Fig 17: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

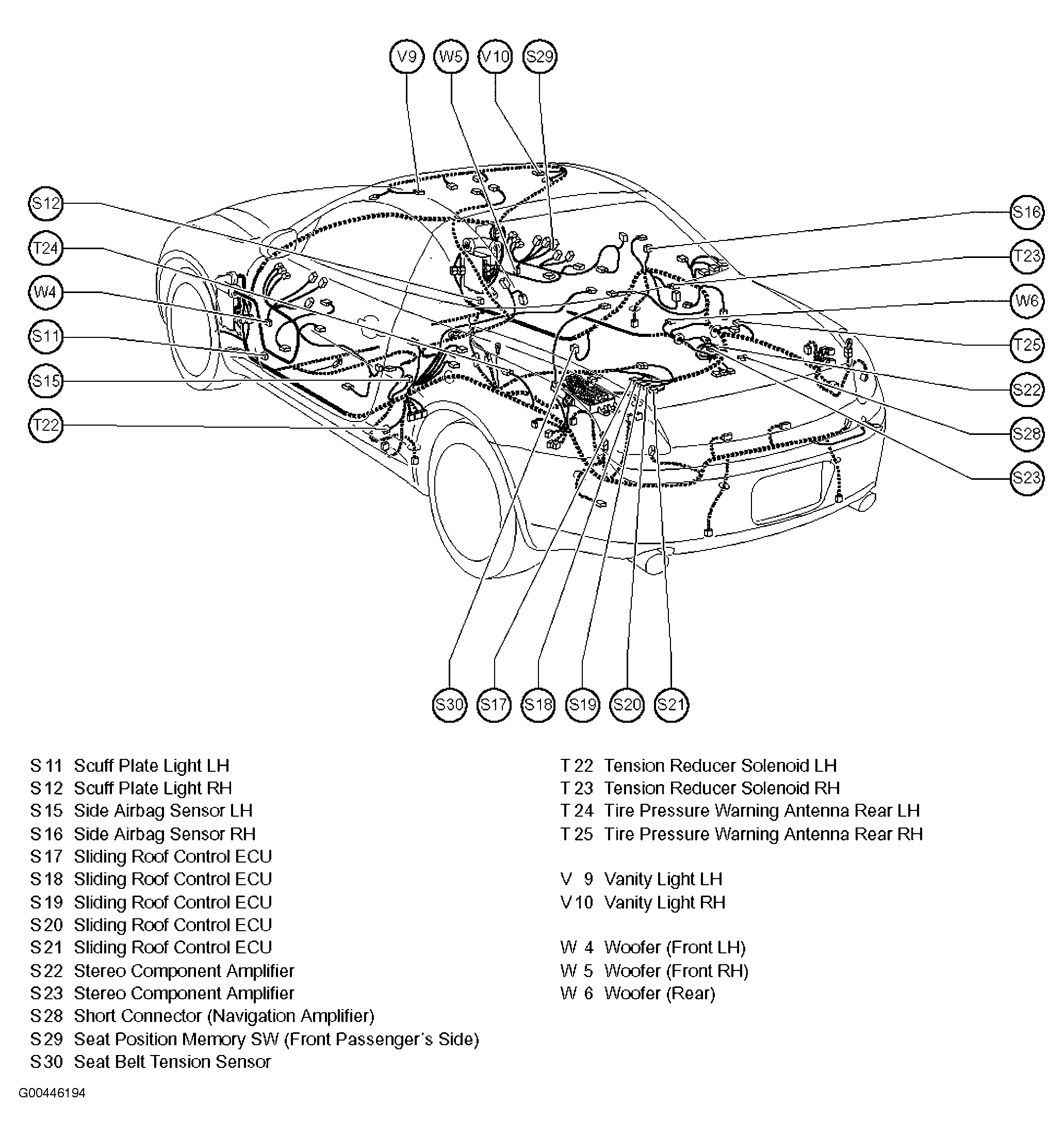

Fig 18: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

Fig 20: Vehicle Overview

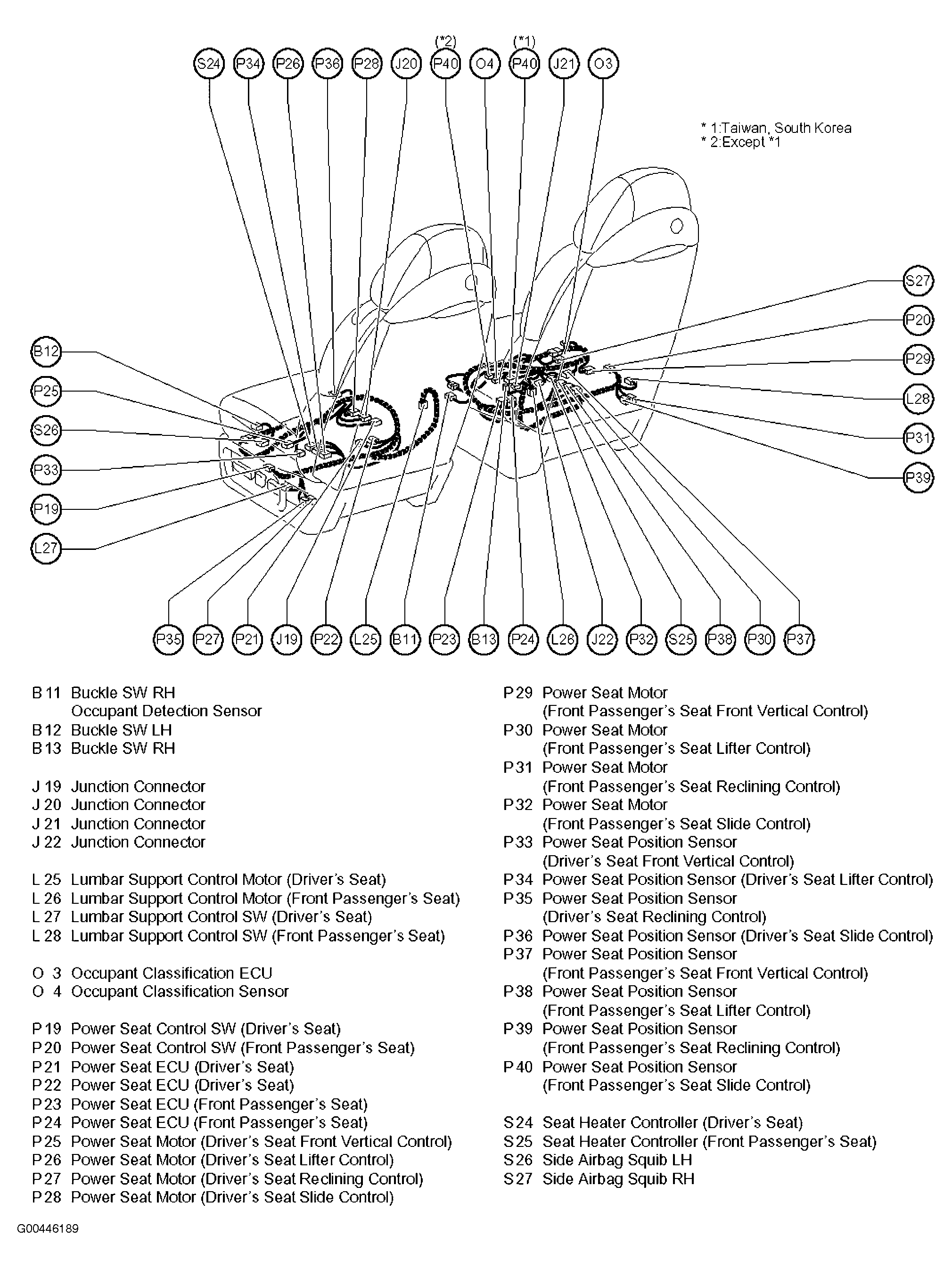

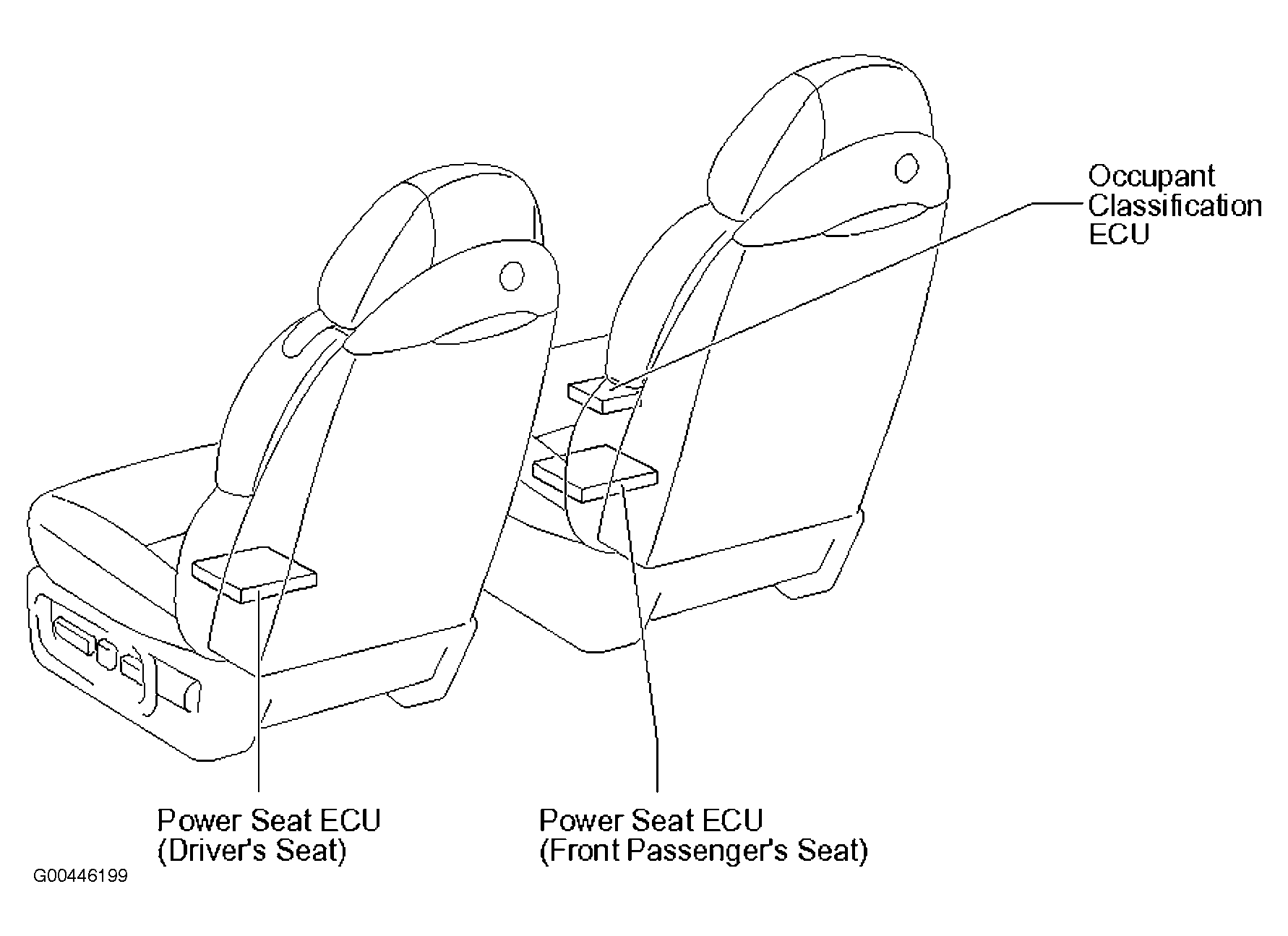

Fig 21: Front Seats

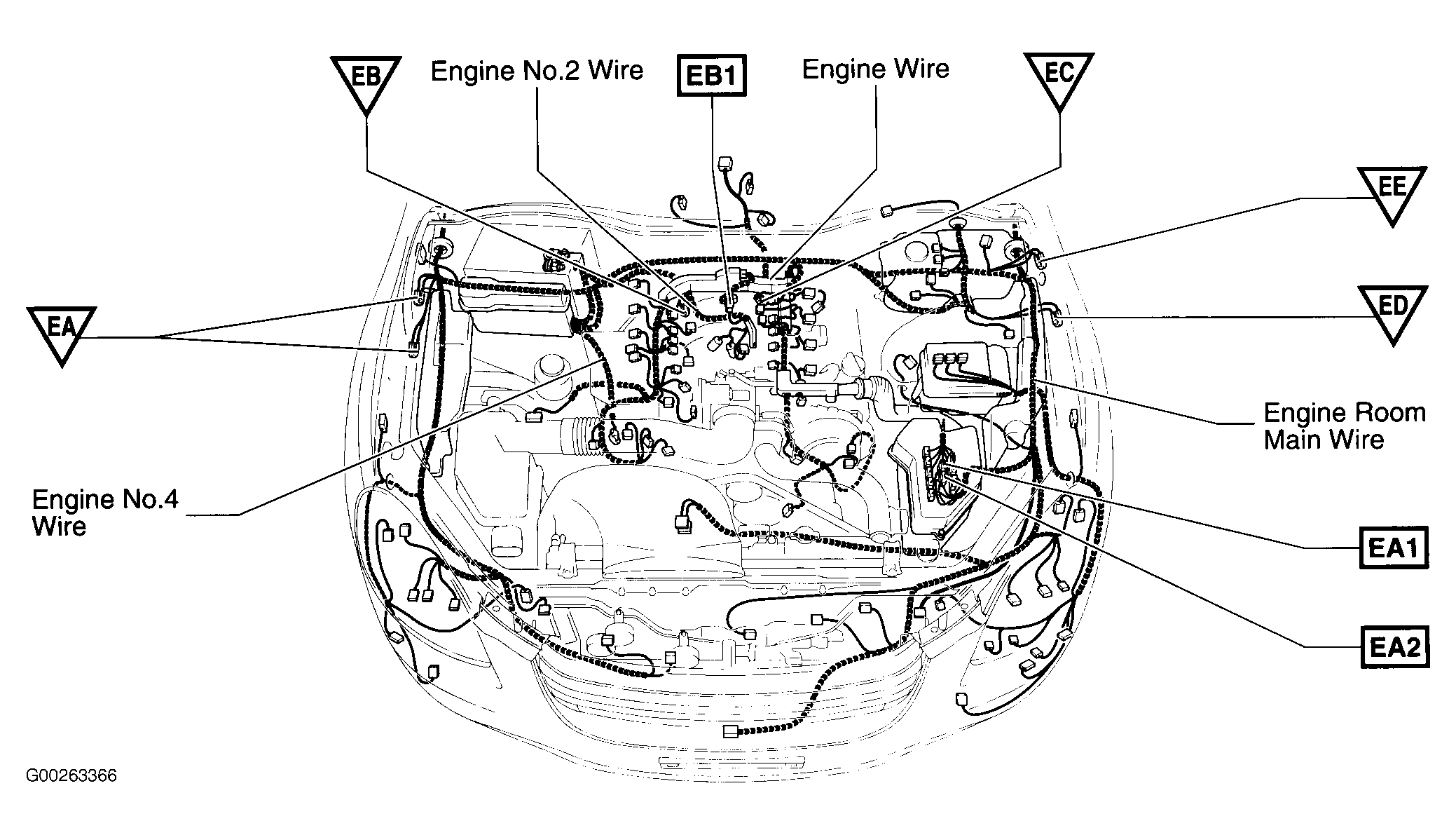

Fig 22: Engine Compartment

Fig 23: Dash

Fig 24: Dash

Fig 25: Dash

Fig 26: Vehicle Overview

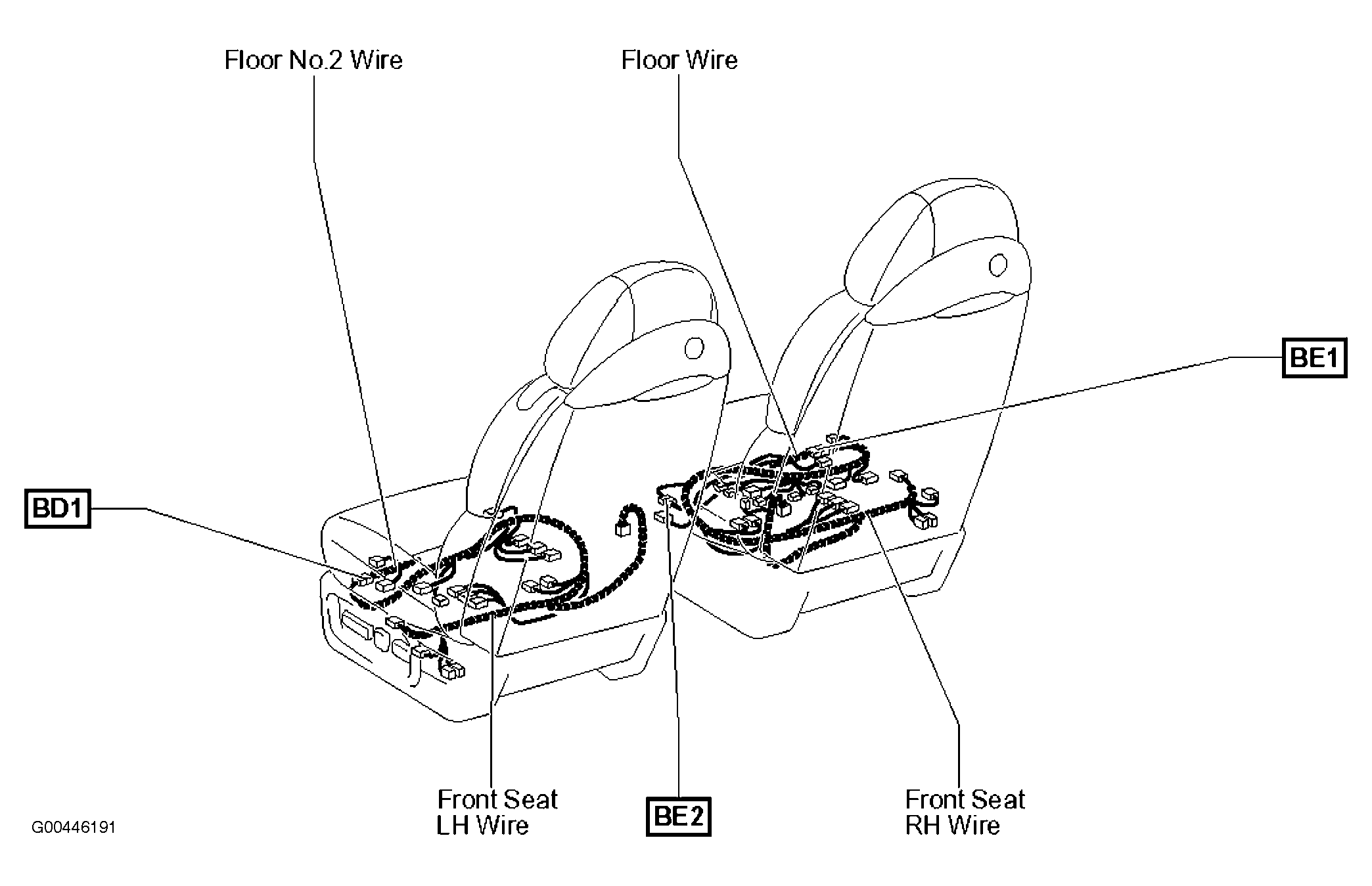

Fig 27: Front Seats

Fig 28: Front Seats
