Inspection Procedure

1. Disconnect the vacuum hose from the port F on the VSV for ACIS.
2. Connect the Techstream to the DLC3.
3. Start the engine.
4. Enter the following menus: Powertrain / Engine and ECT / Active Test / Active the VSV for Intake Control.
5. Check the VSV's air flow when switching the VSV.

Fig 1: Checking Vacuum Switching Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK

NG:  Go to step  4

OK: Go to next step

1. Check the condition of the vacuum hoses between the intake manifold, VSV for ACIS and IACV.

1. The vacuum hoses are connected securely.
2. Vacuum hoses are not cranked or damaged.

OK:

The vacuum hoses are connected securely and not cracked or damaged.

NG: REPAIR OR REPLACE VACUUM HOSES

OK: Go to next step

1. Inspect the intake air control valve (see INTAKE AIR CONTROL VALVE ACTUATOR ).

NG: REPLACE INTAKE AIR CONTROL VALVE

OK: REPLACE ECM

1. Check that air flows from port E to the air filter.
2. Apply positive (+) battery voltage across the terminals.
3. Check that air flows from port E to port F.

NG: REPLACE VACUUM SWITCHING VALVE

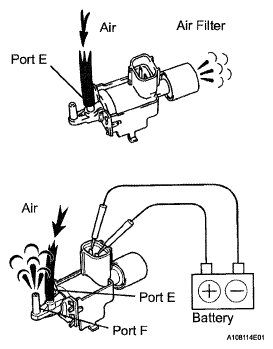

Fig 2: Checking Vacuum Switching Valve (Operation)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Disconnect the V2 VSV for ACIS connector.
2. Disconnect the E4 ECM connector.
3. Measure the resistance of the wire harness side connectors.

Standard resistance

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 3: Checking Wire Harness (Vacuum Switching Valve - ECM, VACUUM Switching Valve - Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Remove the EFI relay from the engine room No. 2 relay block.
2. Measure the resistance of the EFI relay.

Standard resistance

Fig 4: EFI Relay Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE EFI RELAY

OK: REPLACE ECM
