Parts Location

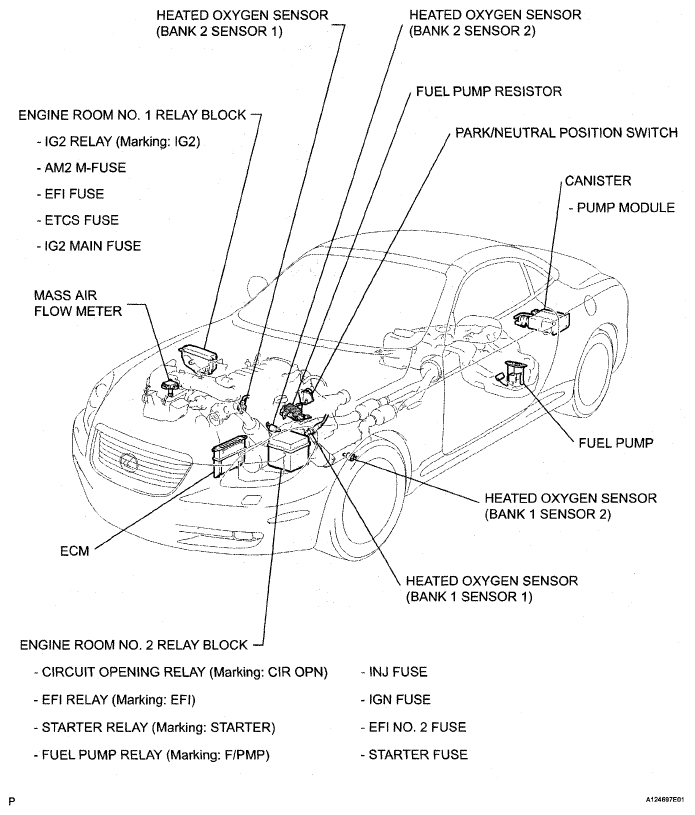

Fig 1: Identifying SFI System Parts Location (1 Of 3)
G05291250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SFI System Parts Location (2 Of 3)
G05291251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying SFI System Parts Location (3 Of 3)
G05291252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
