Fuel Injector: Components

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G05289154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G05289155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

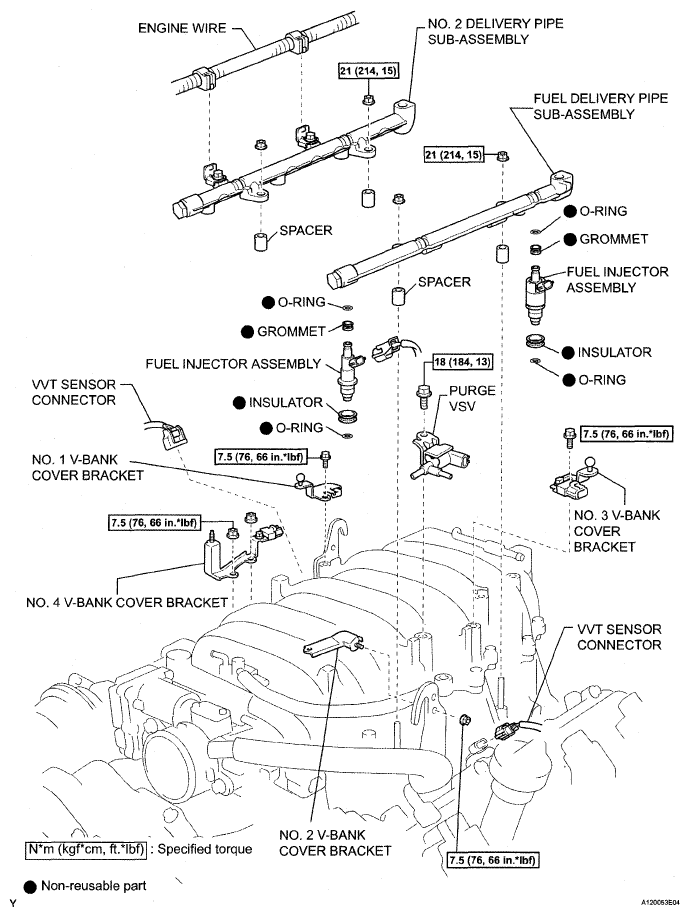

Fig 3: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G05289156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
