VVT Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE
  2. DRAIN ENGINE COOLANT  (See COOLANT )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  4. REMOVE V - BANK COVER  (See REMOVAL )
  5. REMOVE NO. 1 AIR CLEANER INLET  (See REMOVAL )
  6. REMOVE INTAKE AIR CONNECTOR PIPE  (See REMOVAL )
  7. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold (see INTAKE MANIFOLD ).
  8. REMOVE VVT SENSOR
    1. Remove the 2 bolts and 2 sensors.

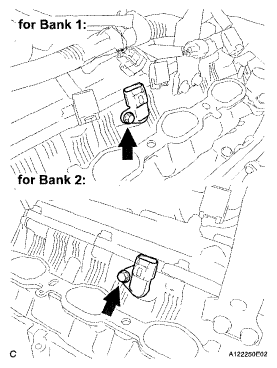

    Fig 1: Locating Bolts And Sensors
    G05291589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
