Automatic Transmission Assembly: Installation

  1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Inspect the torque converter clutch (see TORQUE CONVERTER AND DRIVE PLATE  ).
  2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. While aligning the matchmarks on the transmission case and torque converter clutch, engage the splines of the input shaft and turbine runner.
      Fig 1: Aligning Matchmarks On Transmission Case And Torque Converter Clutch
      G05289811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the splines of the stator shaft and stator while turning the torque converter clutch.

      HINT:

      Turn the torque converter clutch approximately 180°.

      Fig 2: Engaging Splines Of Stator Shaft And Stator
      G05839287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the torque converter clutch and align the matchmarks on the torque converter clutch and transmission case to engage the key of the oil pump drive gear into the slot on the torque converter clutch.
      NOTE: Do not push on the torque converter when aligning the matchmarks.
      Fig 3: Aligning Matchmarks On Torque Converter Clutch And Transmission Case
      G05289813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a vernier caliper and straightedge, measure dimension A between the transmission and the end surface of the drive plate.
      Fig 4: Measuring Dimension A Between Transmission And End Surface Of Drive Plate
      G05289814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a caliper and straightedge, measure dimension B shown in the illustration. Check that B is greater than A.

      Standard dimension: A + 1 mm (0.039 in.) or more

      Fig 5: Measuring Dimension B
      G05289815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
    1. Install the transmission control shaft lever RH with the nut.

      Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

      Fig 6: Locating Transmission Control Shaft Lever RH Nut
      G05289816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR
    1. Install the mounting insulator with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Fig 7: Locating Engine Rear Mounting Insulator Bolts
      G05289808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the automatic transmission to the engine with the 9 bolts.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf) for bolt A

      71 N*m (724 kgf*cm, 52 ft.*lbf) for bolt B

      HINT:

      • Make sure that the mark is positioned as shown in the illustration.
      • Bolt head size: 14 mm for bolt A 17 mm for bolt B
      • Bolt (B) will be installed with the wire harness clamp in a later step.

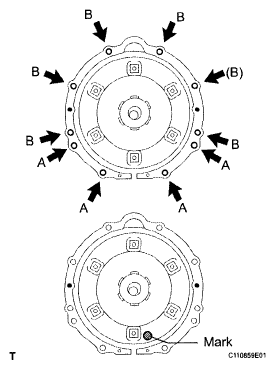

        Fig 8: Locating Automatic Transmission Bolts
        G05839293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Hold the crankshaft pulley bolt with a wrench and install the 6 torque converter clutch mounting bolts.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

      HINT:

      First install the black colored bolt and then the remaining 5 bolts.

      Fig 9: Locating Crankshaft Pulley Bolt
      G05289806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FLYWHEEL HOUSING UNDER COVER
    1. Install the fly wheel housing under cover with the 2 bolts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  7. INSTALL WIRE HARNESS
    1. Connect the 2 speed sensor connectors.
    2. Connect the transmission wire connector.
    3. Connect the park/neutral position switch connector.
      Fig 10: Locating Flywheel Housing Under Cover Bolts
      G05289805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the wire harness clamps with the 5 bolts.

      Torque: 71 N*m (724 kgf*cm, 52 ft.*lbf) for bolt A

      10 N*m (102 kgf*cm, 7 ft.*lbf) for bolt B

      HINT:

      Bolt (A) is tightened to the transmission housing.

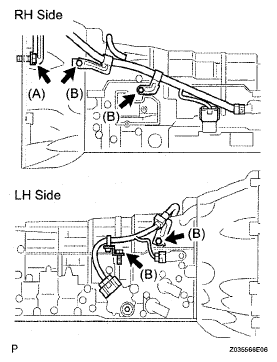

      Fig 11: Locating Wire Harness Clamps Bolts
      G05289804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR ENGINE MOUNTING MEMBER
    1. Install the rear engine mounting member with the 4 nuts.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

      Fig 12: Locating Rear Engine Mounting Member Nuts
      G05289802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear engine mounting member with the 4 bolts.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

      Fig 13: Locating Rear Engine Mounting Member Bolts
      G05289801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Connect the floor shift gear shifting rod with the nut.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  10. INSTALL OIL COOLER TUBE
    1. Temporarily install the oil cooler outlet tube.
    2. Temporarily install the oil cooler inlet tube.
    3. Install the 3 clamps with the 3 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      Fig 14: Locating Oil Cooler Outlet Tube Bolts
      G05289799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

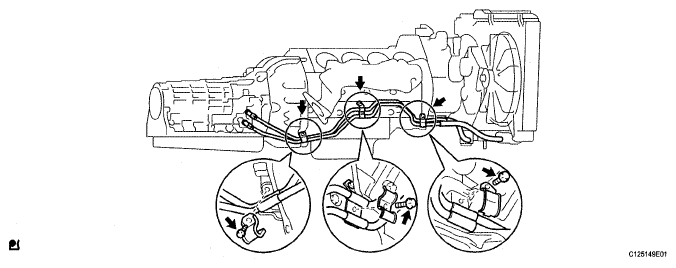

      Fig 15: Locating Oil Cooler Tube Clamps And Bolts
      G05289796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a union nut wrench, tighten the oil cooler outlet tube.

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST

      39 N*m (398 kgf*cm, 29 ft.*lbf) for use with SST

      HINT:

      Use a torque wrench with a fulcrum length of 460 mm (18.11 in.).

      Fig 16: Locating Oil Cooler Outlet Tube
      G05289797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using union nut wrench, tighten the oil cooler inlet tube.

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf) for use without union nut wrench

      39 N*m (398 kgf*cm, 29 ft.*lbf) for use with union nut wrench

      HINT:

      Use a torque wrench with a fulcrum length of 460 mm (18.11 in.)

      Fig 17: Locating Oil Cooler Outlet Tube
      G05289798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
    1. Install the propeller with center bearing shaft assembly (see INSTALLATION ).
  12. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
    1. Install the heat insulator with the 4 bolts.
  13. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR
    1. Install the heat insulator with the 4 bolts.
  14. INSTALL TWC  (See INSTALLATION )
  15. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Install the bracket with the 2 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  16. INSTALL CENTER EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  17. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
    Fig 18: Locating Heat Insulator Bolts
    G05289795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT FLOOR CENTER BRACE
    1. Install the brace with the 4 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  19. CONNECT HEATED OXYGEN SENSOR

    Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf) for use with SST

    44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST

    HINT:

    Use a torque wrench with a fulcrum length of 460 mm (18.11 in)

  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  21. ADJUST SHIFT LEVER POSITION
    1. Adjust the shift lever position (see ADJUSTMENT  ).
  22. INSPECT SHIFT LEVER POSITION
    1. Inspect the shift lever position (see ADJUSTMENT  ).
  23. ADD AUTOMATIC TRANSMISSION FLUID

    Fluid type:

    Toyota Genuine ATF WS

  24. ADJUST AUTOMATIC TRANSMISSION FLUID
    1. Adjust the amount of automatic transmission fluid (see AUTOMATIC TRANSMISSION FLUID  ).
  25. INSTALL NO. 2 ENGINE UNDER COVER
  26. INSTALL ENGINE UNDER COVER
  27. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
