Floor Shift Assembly: Components

Fig 1: Identifying Floor Shift Assembly Replacement Components (1 Of 3)
G05289745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

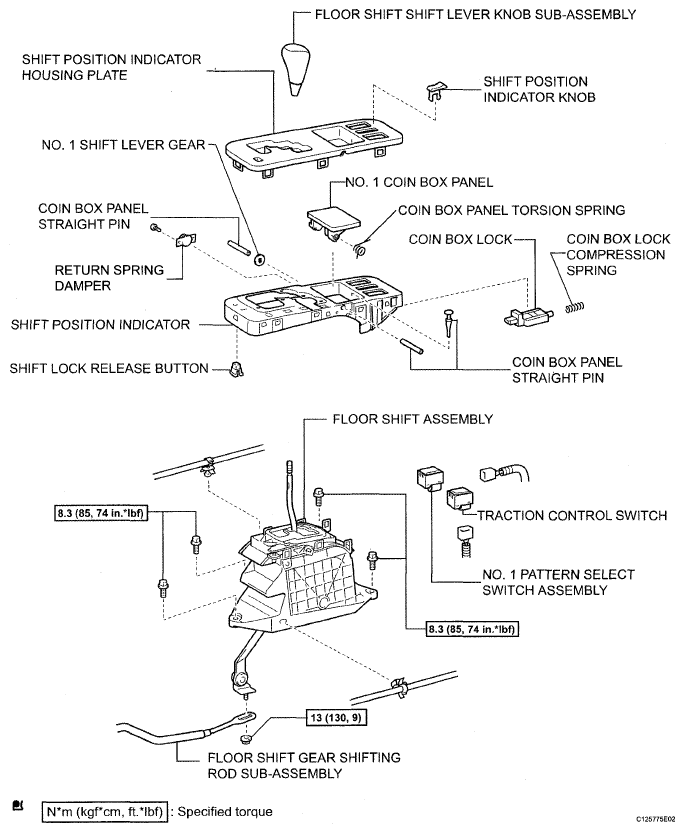

Fig 2: Identifying Floor Shift Assembly Replacement Components (2 Of 3)
G05289746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

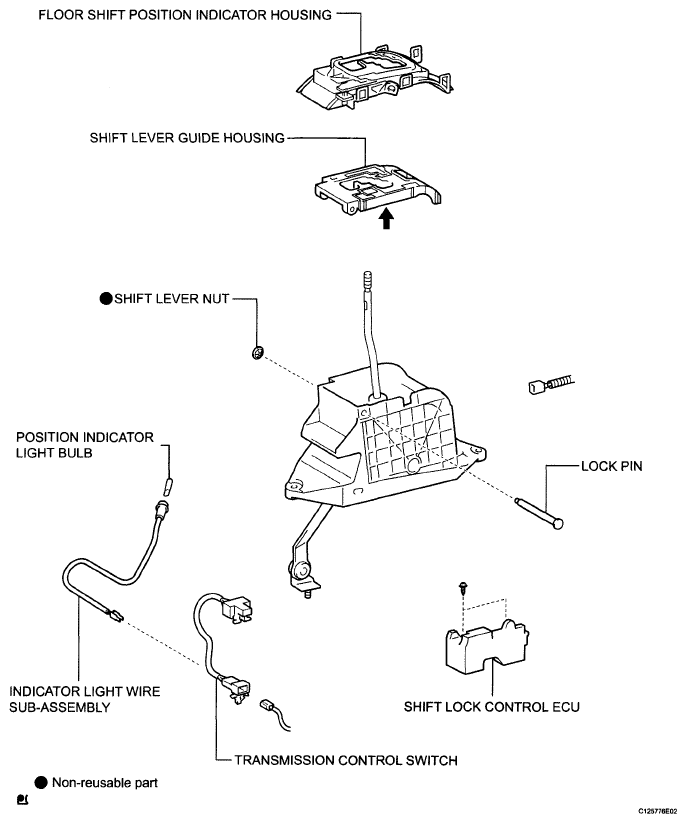

Fig 3: Identifying Floor Shift Assembly Replacement Components (3 Of 3)
G05839222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
