Multi-Display Power Source Circuit: Wiring Diagram

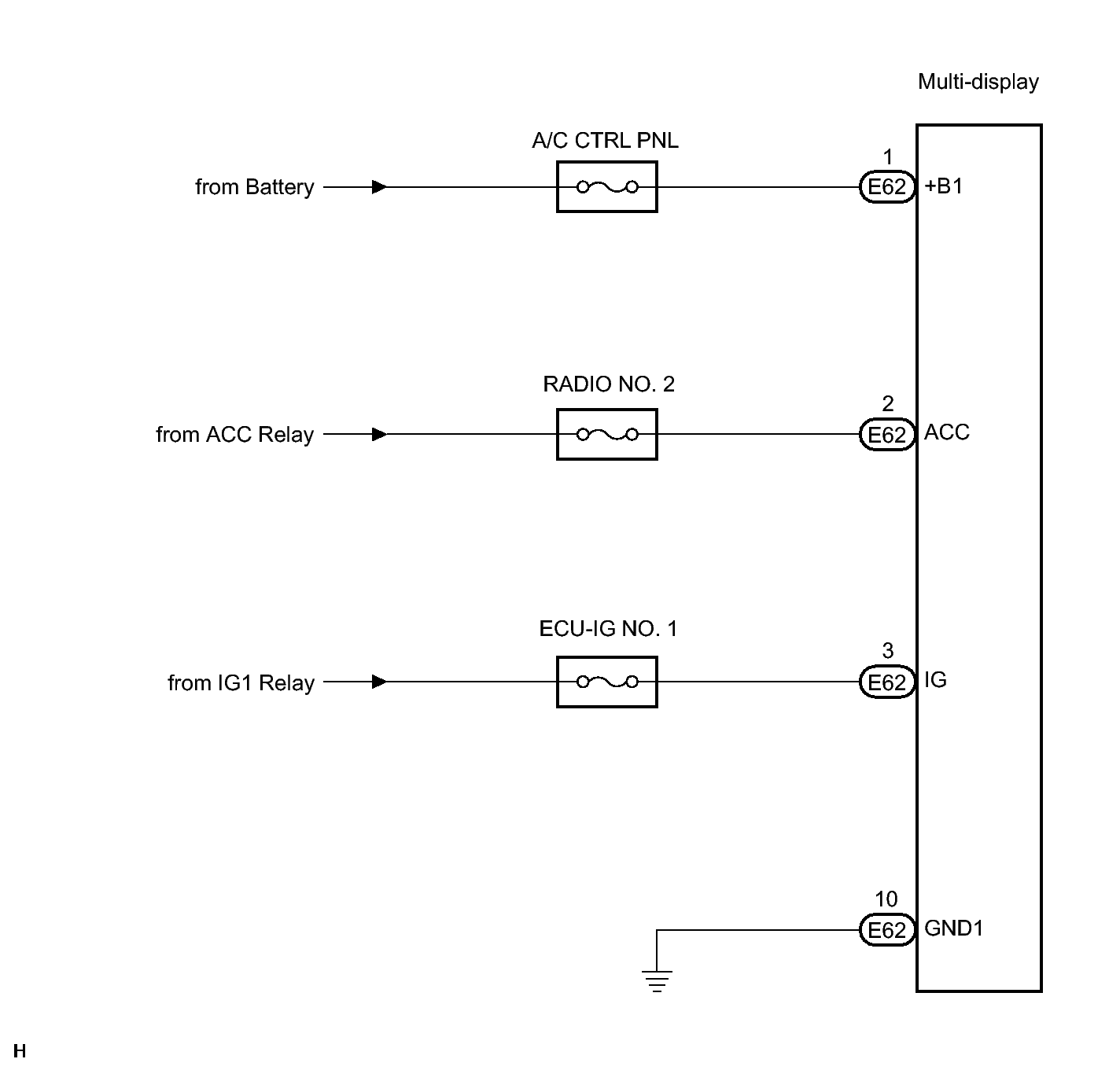

Fig 1: View Of Multi-Display Power Source Circuit Wiring Diagram
GTY128390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
