Camshaft Timing Oil Control Valve Assembly: Installation: Installation

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)
    1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

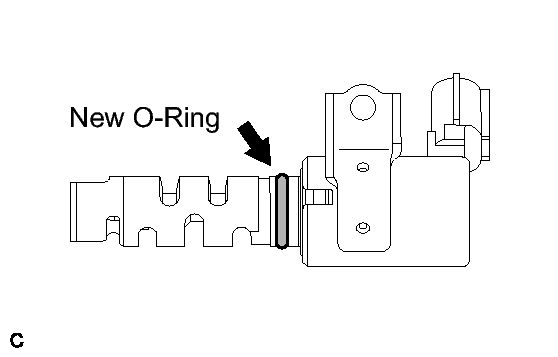

      Fig 1: Identifying Timing Oil Control Valve O-Ring
      GTY126779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the camshaft timing oil control valve with the bolt.

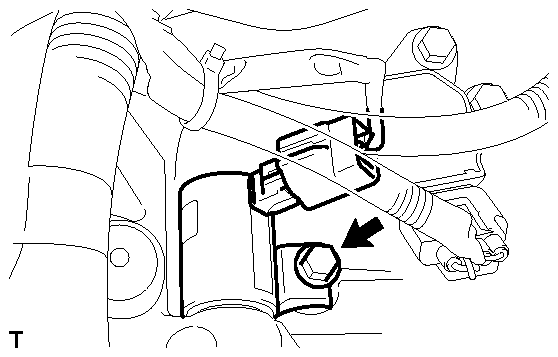

      Fig 2: Identifying Bolt On Camshaft Timing Oil Control Valve Assembly
      GTY146900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing the oil control valve.

    3. Connect the camshaft timing oil control valve connector.
  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)
    1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.

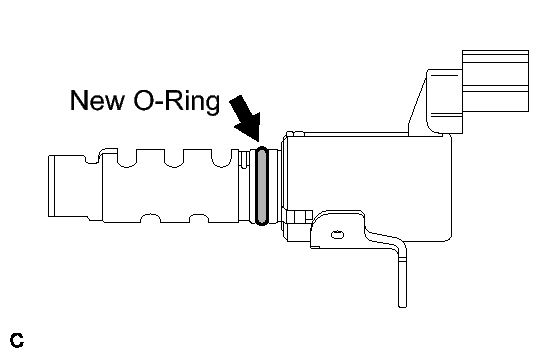

      Fig 3: Identifying Timing Oil Control Valve O-Ring
      GTY123018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the camshaft timing oil control valve with the bolt.

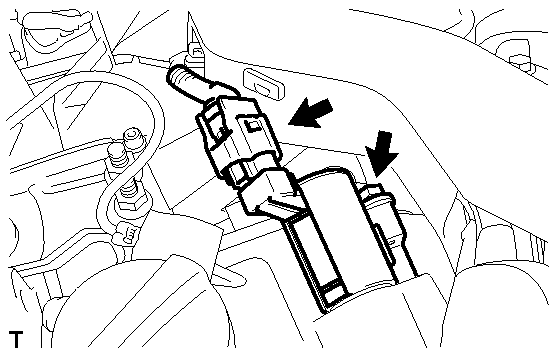

      Fig 4: Identifying Camshaft Timing Oil Control Valve Assembly Connector
      GTY142684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing the oil control valve.

    3. Connect the camshaft timing oil control valve connector.
  3. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
    1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.
      Fig 5: Identifying Timing Oil Control Valve O-Ring
      GTY123018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the camshaft timing oil control valve with the bolt.

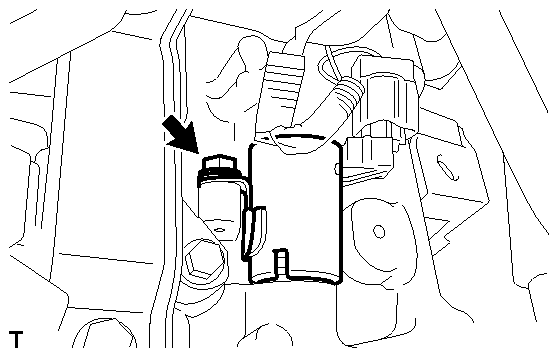

      Fig 6: Locating Camshaft Timing Oil Control Valve Bolt (For Bank 1 Exhaust Side)
      GTY146901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing the oil control valve.

    3. Connect the camshaft timing oil control valve connector.
  4. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)
    1. Apply a light coat of engine oil to a new O-ring and install it to the camshaft timing oil control valve.
      Fig 7: Identifying Timing Oil Control Valve O-Ring
      GTY137840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the camshaft timing oil control valve with the bolt.

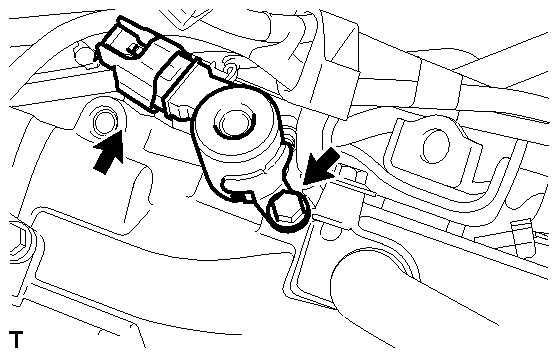

      Fig 8: Locating Camshaft Timing Oil Control Valve Connector And Bolt (For Bank 1 Intake Side)
      GTY130651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing the oil control valve.

    3. Connect the camshaft timing oil control valve connector.
  5. INSTALL INTAKE AIR SURGE TANK  . Refer to INSTALLATION - Step 3
  6. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 71
  7. INSTALL AIR CLEANER CASE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 72
  8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  See step  />
  9. INSTALL AIR CLEANER INLET ASSEMBLY  . Refer to INSTALLATION - Step 74
  10. INSTALL FRONT SUSPENSION UPPER CENTER BRACE  . Refer to INSTALLATION - Step 16
  11. ADD ENGINE COOLANT  . Refer to ON-VEHICLE INSPECTION - Step 9
  12. CHECK FOR ENGINE COOLANT LEAKS  . Refer to ON-VEHICLE INSPECTION - Step 1
  13. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 97
  14. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 98
  15. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 99
  16. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 100
  17. INSTALL ENGINE UNDER COVER RH
  18. INSTALL ENGINE UNDER COVER LH
