Throttle Body: Components: Illustration

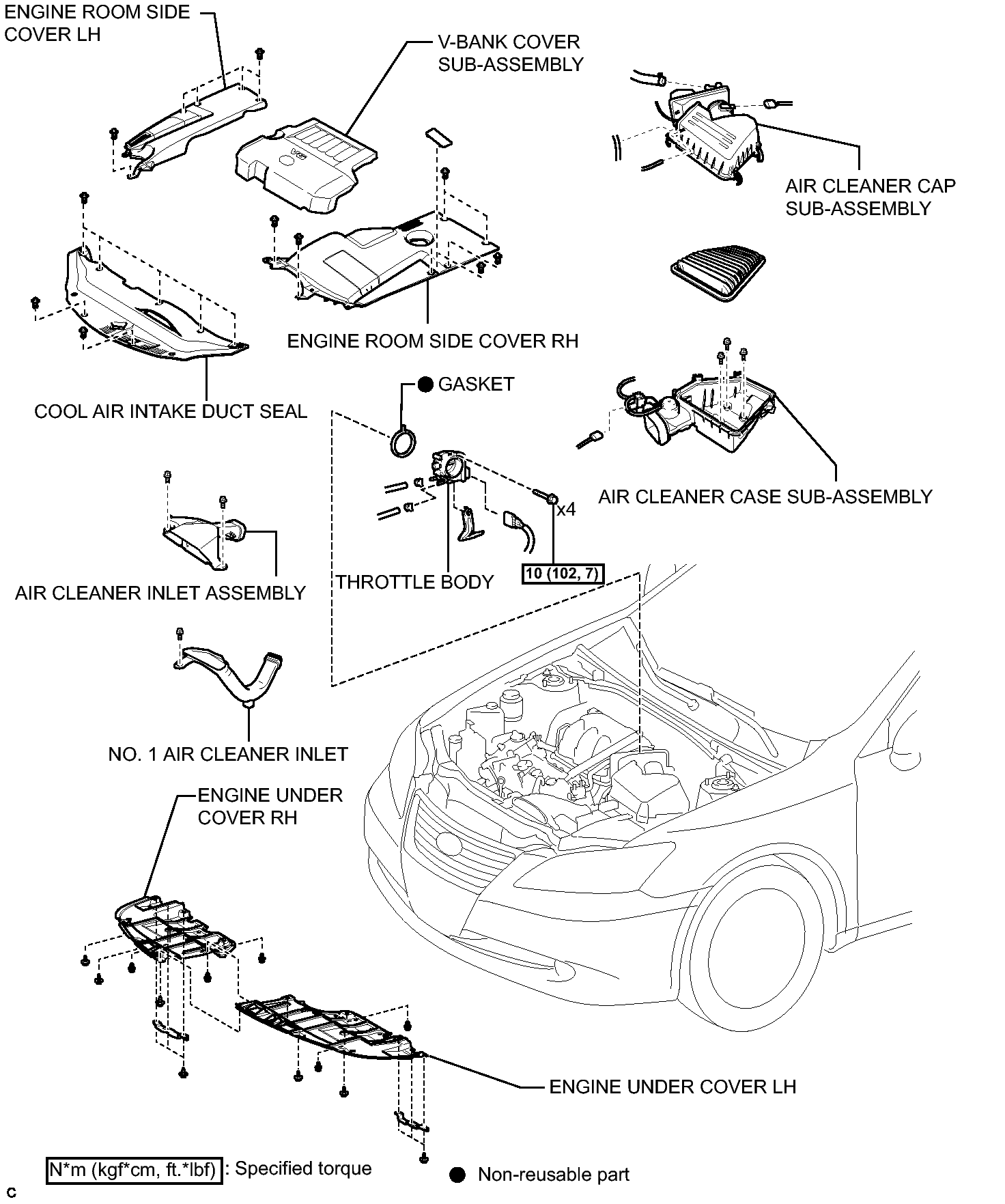

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications
GTY146455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
