Engine Control System (Service Information): ECM: Installation: Installation

INSTALL ECM
1. Install the ECM bracket with the 4 screws.

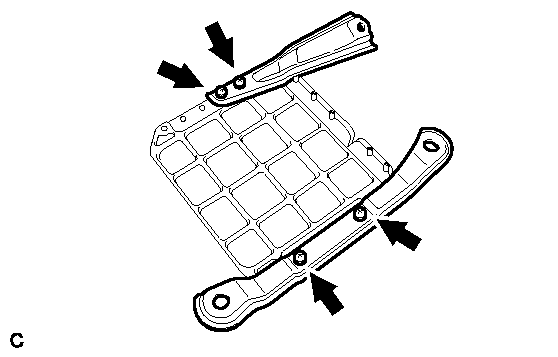

  Fig 1: Identifying ECM Bracket And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 3.0 N*m ( 31 kgf*cm, 27 in.*lbf)
2. Connect the 2 ECM connectors.
  NOTE:
  When connecting the connector, make sure that dirt, water and other foreign matter do not become stuck between the connector and other parts.
  1. Connect the 2 ECM connectors and lower the 2 levers.

    Fig 2: Identifying ECM Connectors And Levers
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE:
    Make sure that the 2 levers are securely lowered.
3. Install the ECM with the 3 nuts.

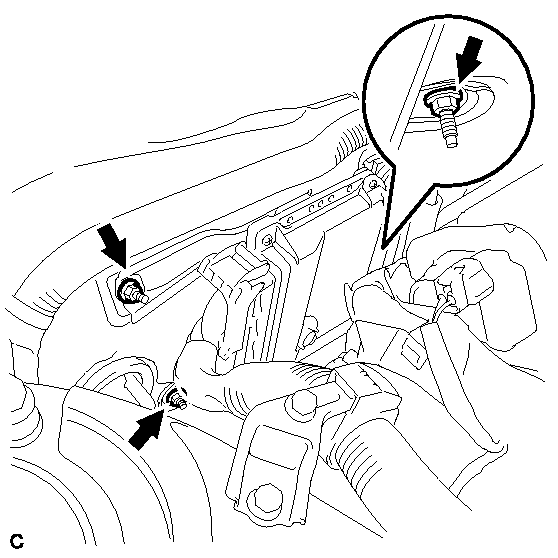

  Fig 3: Identifying ECM Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m ( 82 kgf*cm, 71 in.*lbf)
INSTALL FRONT SUSPENSION UPPER CENTER BRACE . Refer to INSTALLATION - Step 16
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 98
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 99
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 100
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected . Refer to INITIALIZATION .
