Mass Air Flow Meter: Installation: Installation

INSTALL MASS AIR FLOW METER

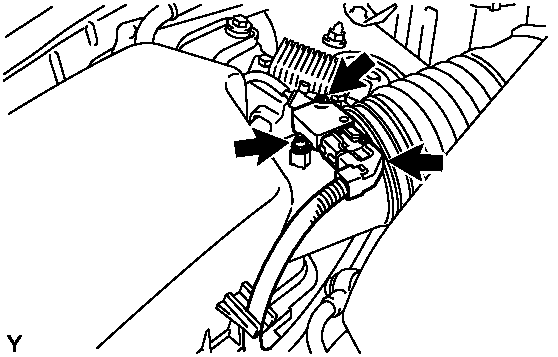

Fig 1: Locating MAF Meter Screws And MAF Meter Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the MAF meter.
2. Install the MAF meter with the 2 screws.
3. Connect the MAF meter connector.
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 134
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 135
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
