VVT Sensor: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE V-BANK COVER . Refer to REMOVAL - Step 18
REMOVE VVT SENSOR (for Intake Side of Bank 1)
1. Disconnect the sensor connector.

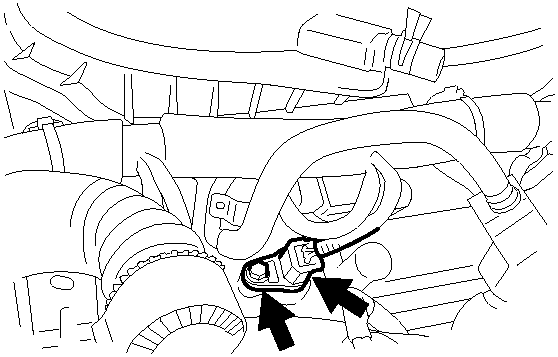

  Fig 1: Identifying VVT Sensor (For Intake Side Of Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and sensor.
REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
1. Disconnect the sensor connector.

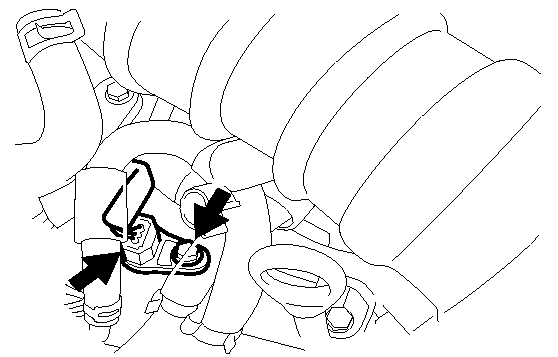

  Fig 2: Locating VVT Sensor (Exhaust Side Of Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and sensor.
REMOVE VVT SENSOR (for Intake Side of Bank 2)
1. Disconnect the sensor connector.

  Fig 3: Identifying VVT Sensor (For Intake Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and sensor.
REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
1. Disconnect the sensor connector.

  Fig 4: Locating VVT Sensor (Exhaust Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and sensor.
