Mass Air Flow Meter: Installation: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install a new O-ring to the MAF meter.
    2. Install the MAF meter with the 2 screws.

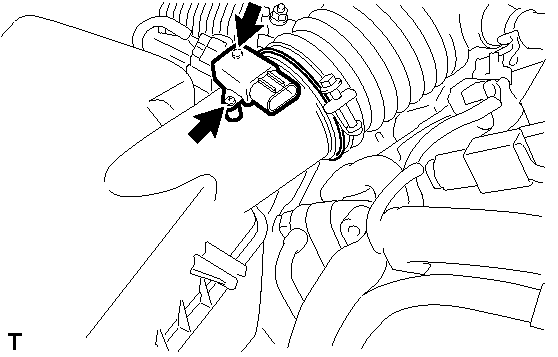

      Fig 1: Identifying MAF Meter Screws
      GTY132444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the MAF meter connector.

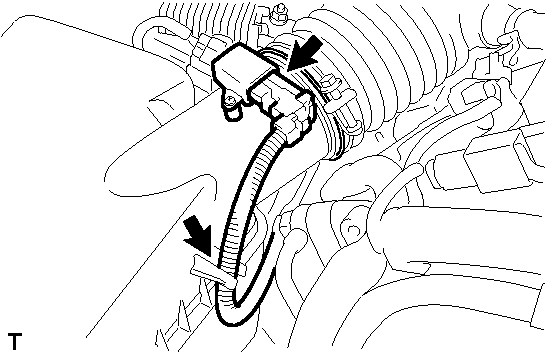

      Fig 2: Identifying MAF Meter Connector
      GTY101638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 117
  3. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 118
