Brake Actuator: Components: Illustration

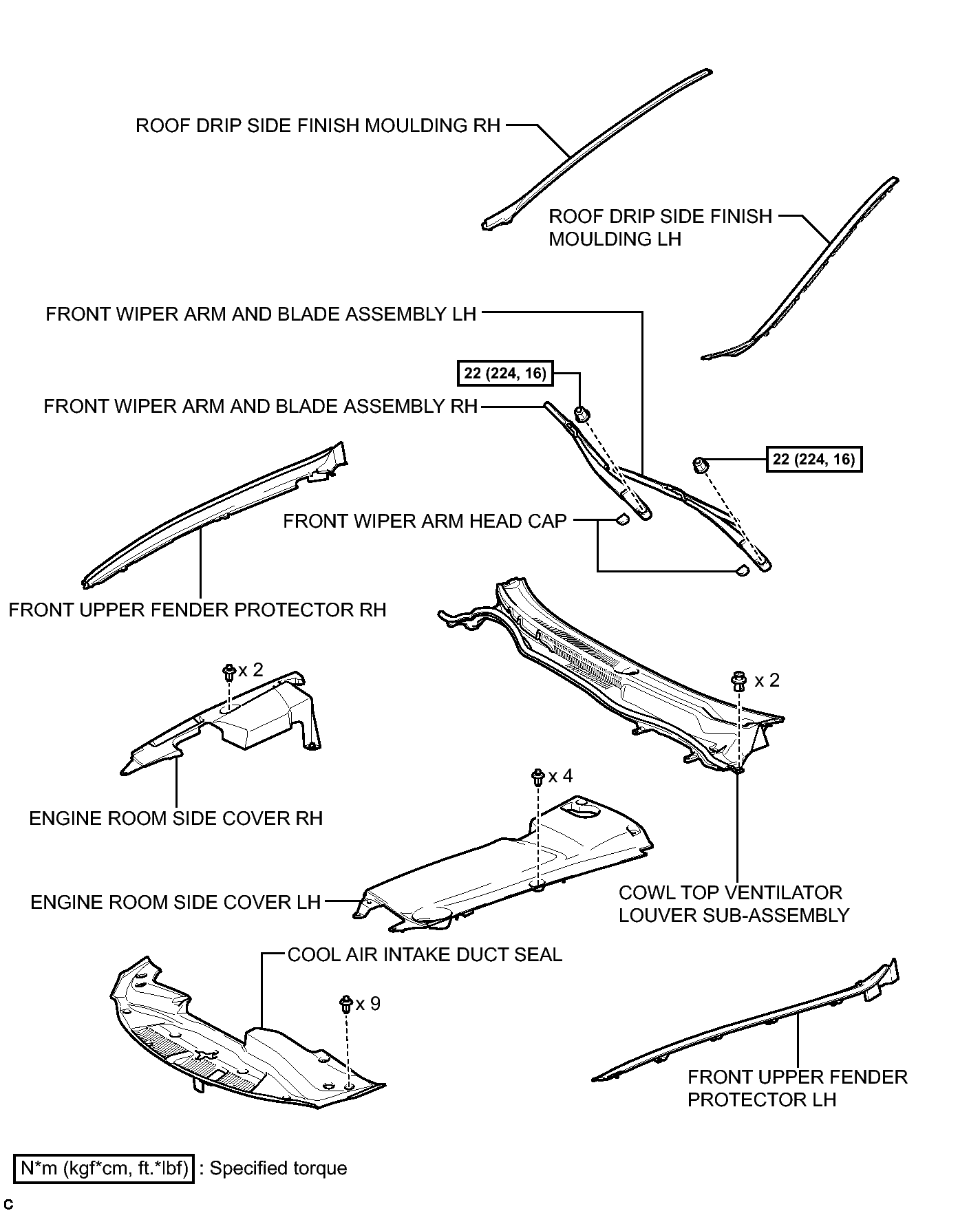

Fig 1: Identifying Brake Actuator Replacement Components (1 Of 4) With Torque Specifications
GTY143621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

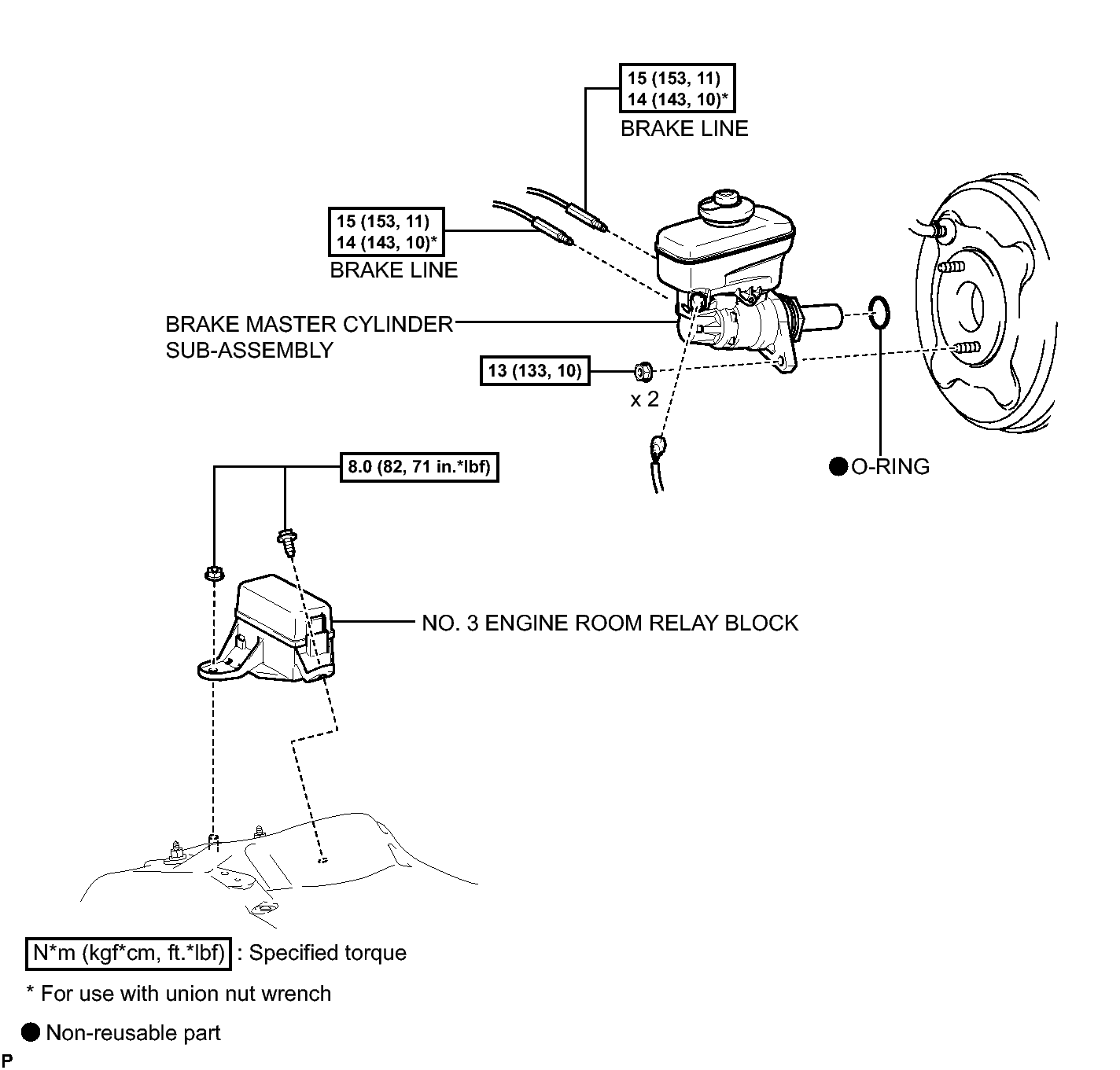

Fig 1: Identifying Brake Actuator Replacement Components (2 Of 4) With Torque Specifications
GTY109115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

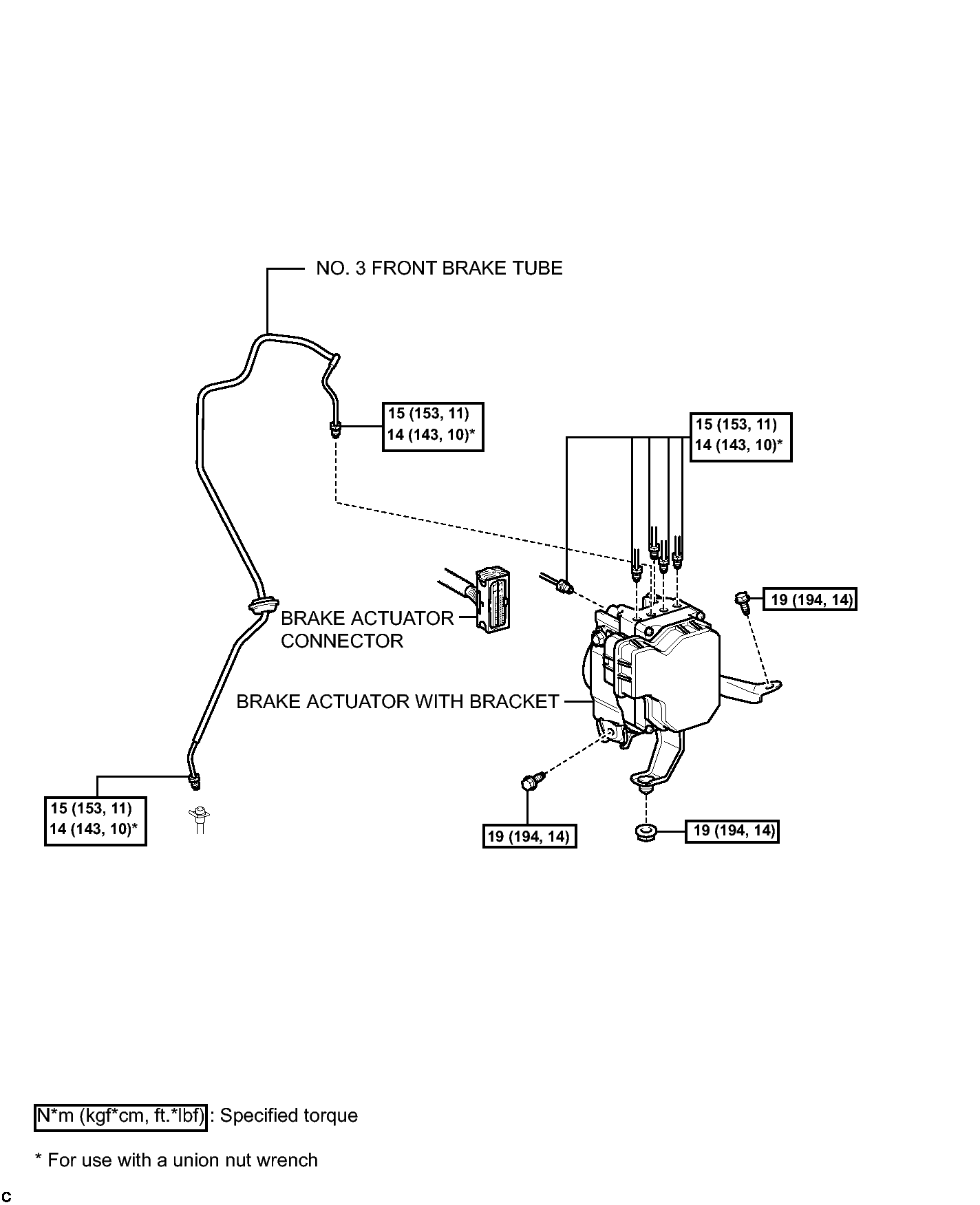

Fig 1: Identifying Brake Actuator Replacement Components (3 Of 4) With Torque Specifications
GTY108986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

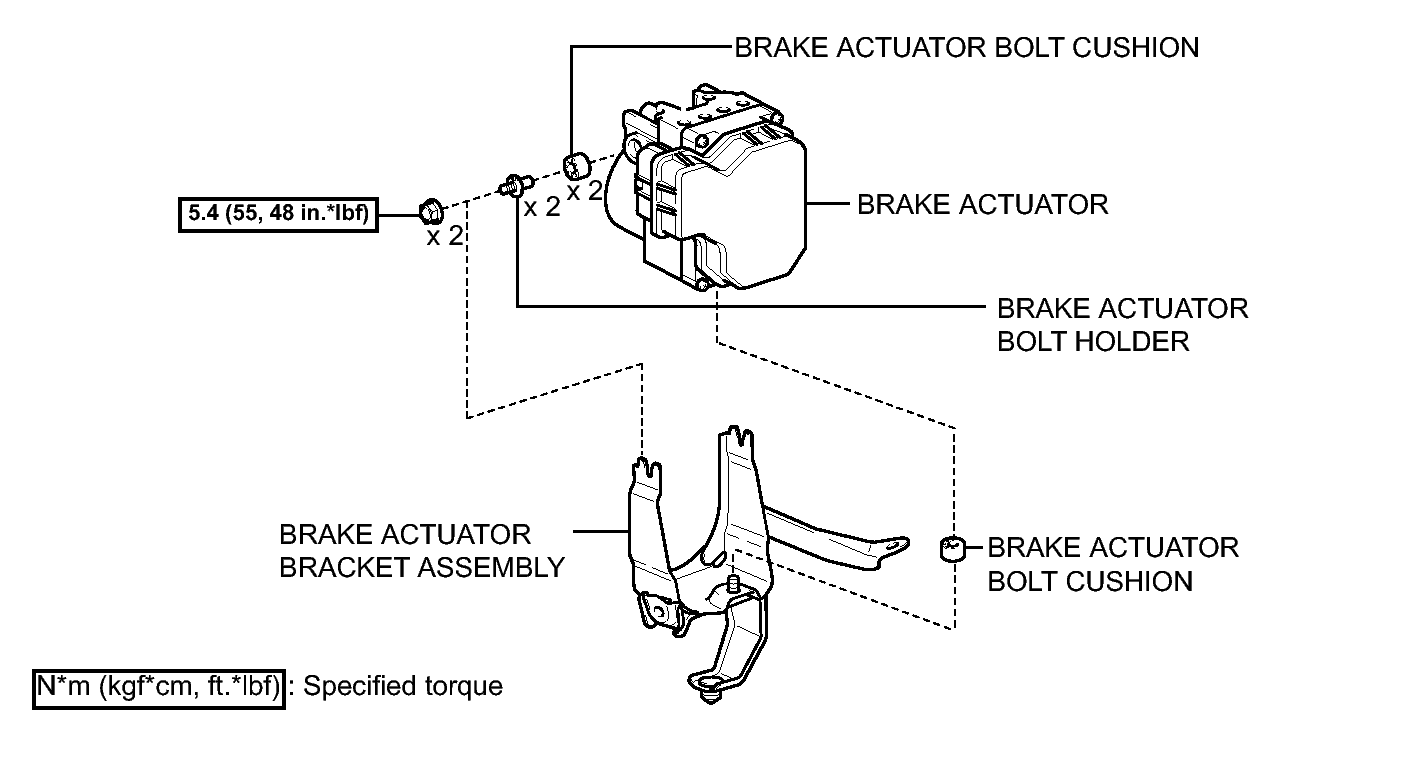

Fig 1: Identifying Brake Actuator Replacement Components (4 Of 4) With Torque Specifications
GTY137851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
