Parts Location: Illustration

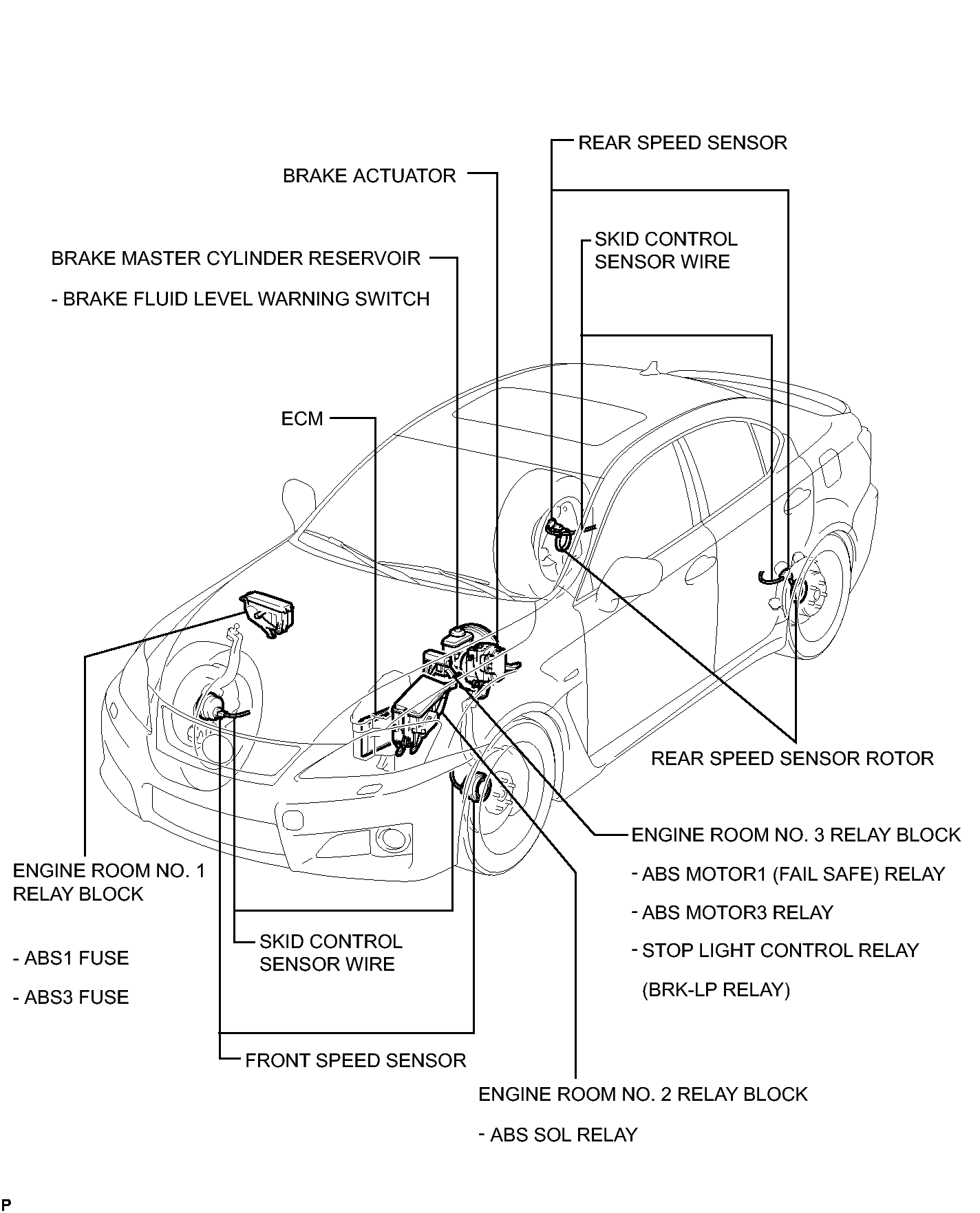

Fig 1: Locating Vehicle Stability Control System Parts (1 Of 2)
GTY110523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

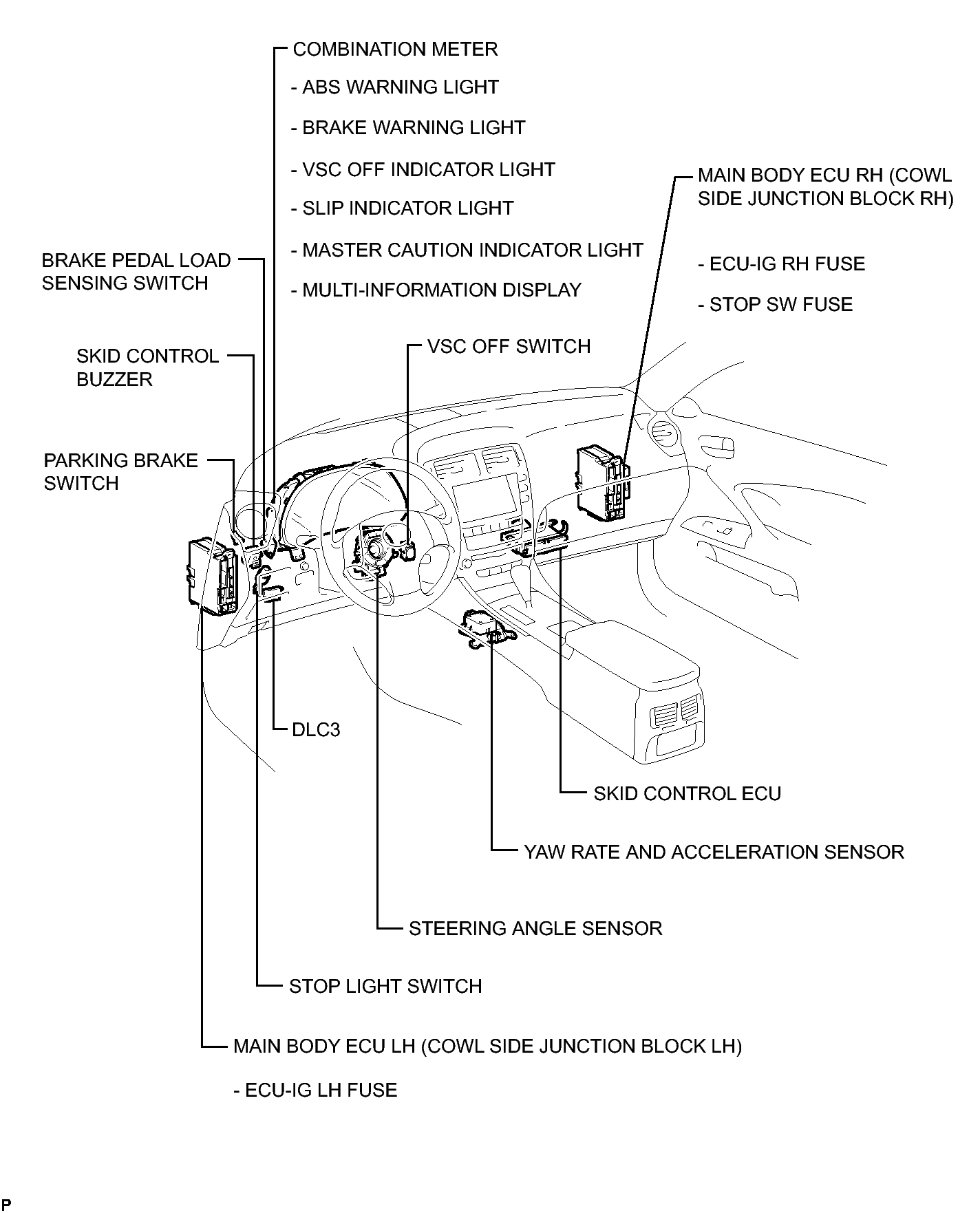

Fig 1: Locating Vehicle Stability Control System Parts (2 Of 2)
GTY110524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
