Back-Up Light: Notes

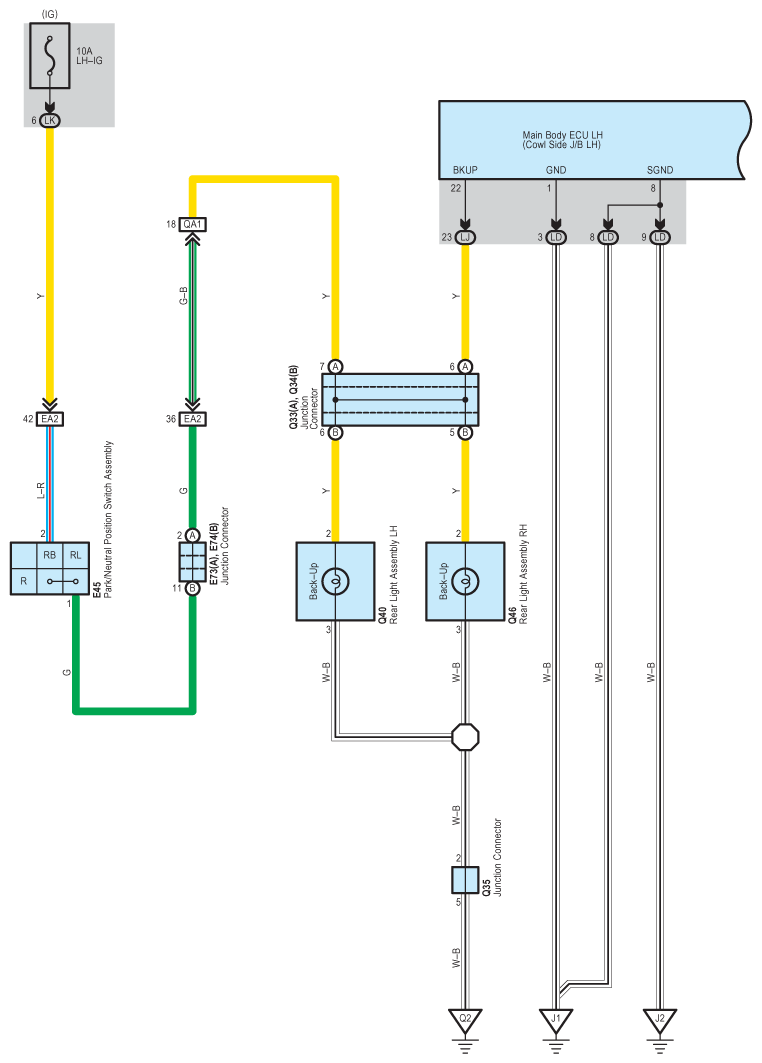

Fig 1: Back-Up Light - Circuit Diagram (1 Of 2)
G07617598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

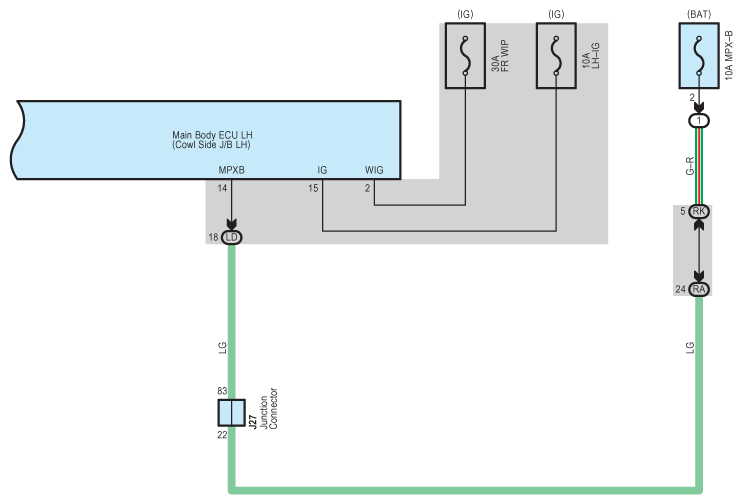

Fig 2: Back-Up Light - Circuit Diagram (2 Of 2)
G07617599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
