Remote Control Mirror: Notes

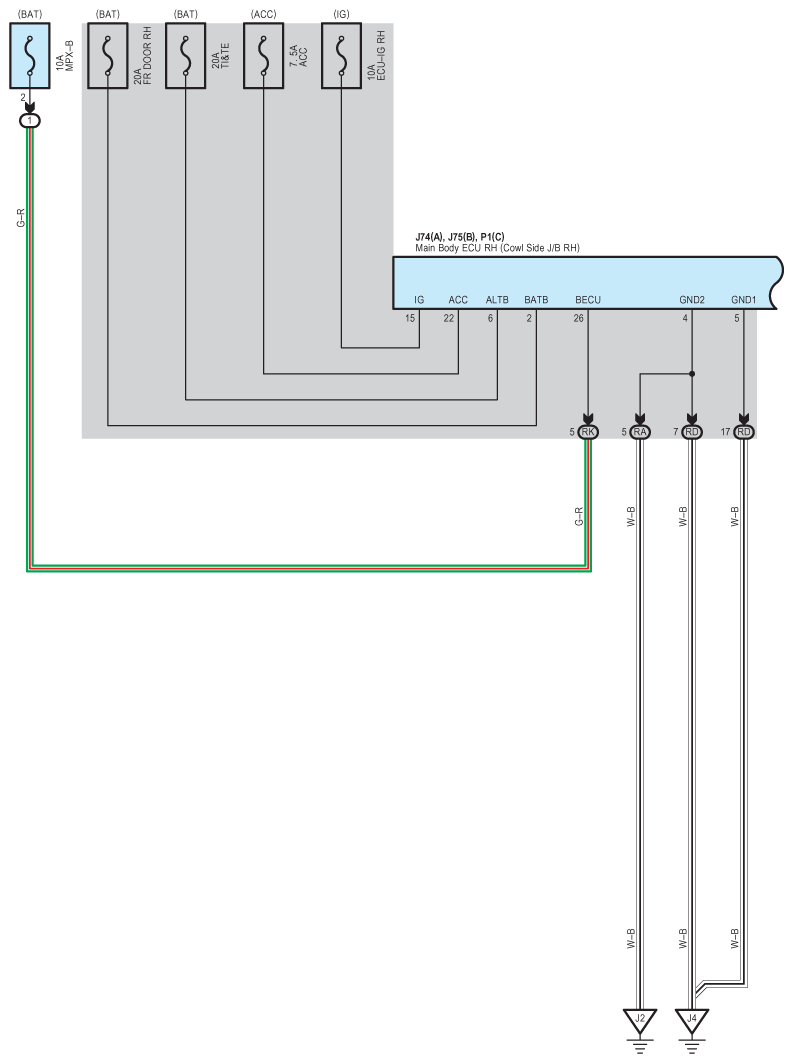

Fig 1: Remote Control Mirror - Circuit Diagram (1 Of 7)
G07617746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

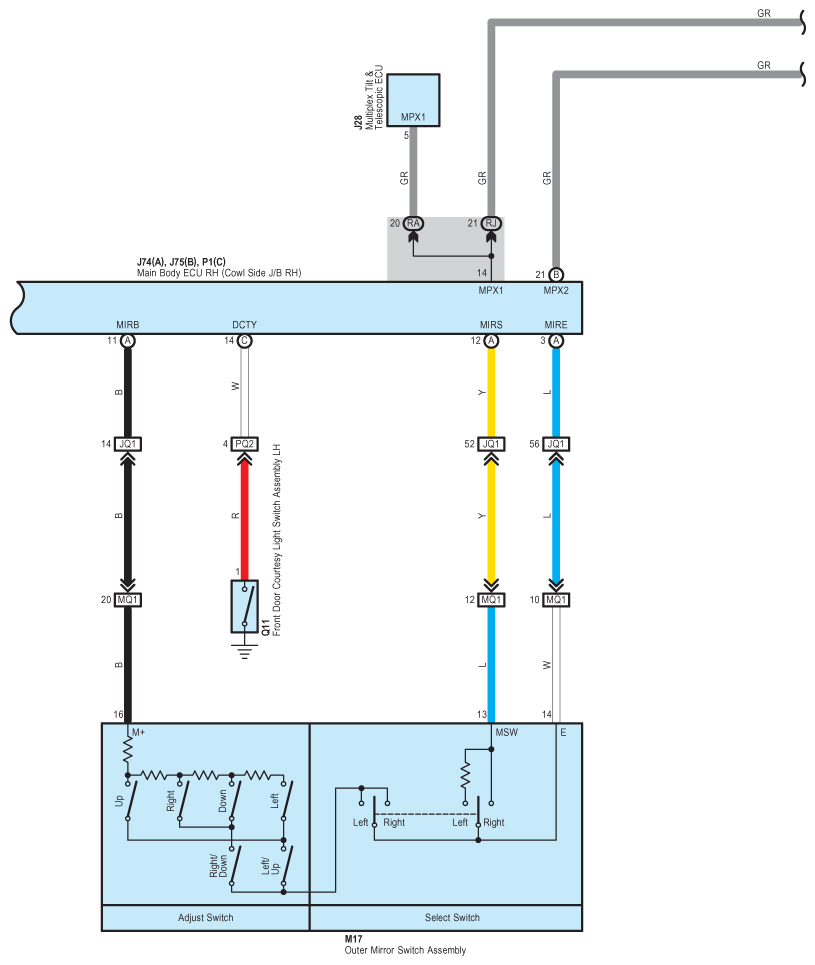

Fig 2: Remote Control Mirror - Circuit Diagram (2 Of 7)
G07617747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

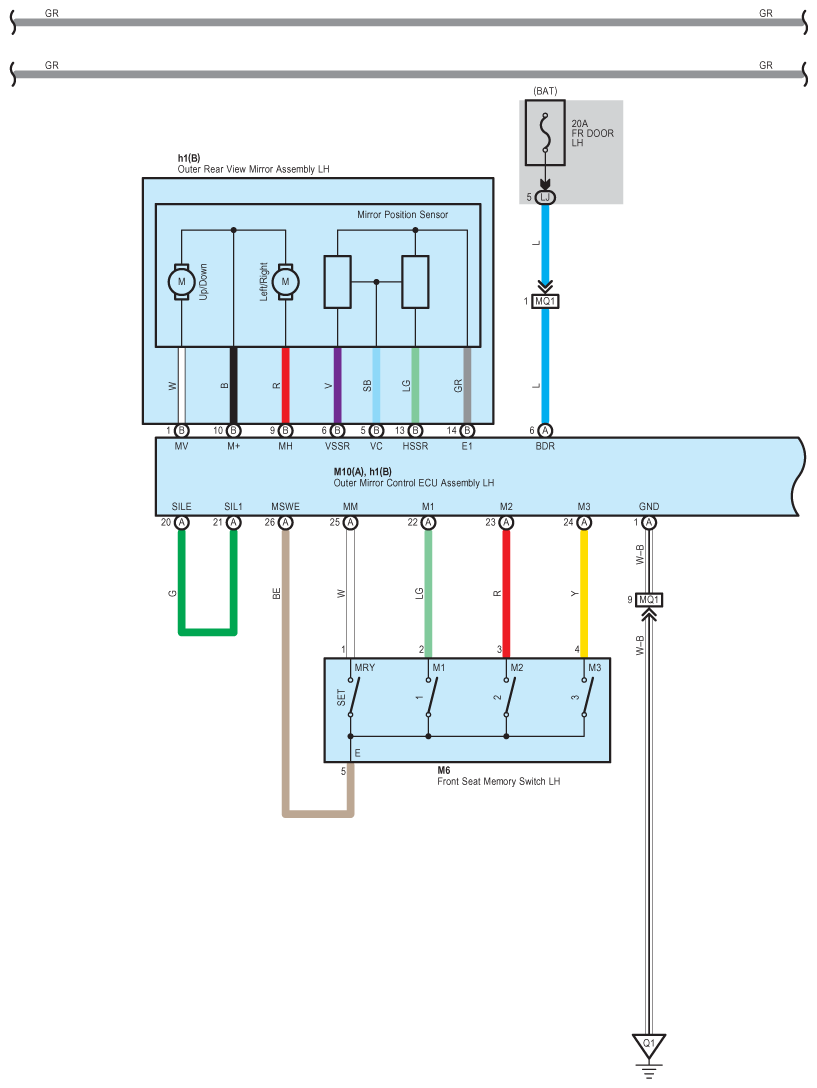

Fig 3: Remote Control Mirror - Circuit Diagram (3 Of 7)
G07617748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

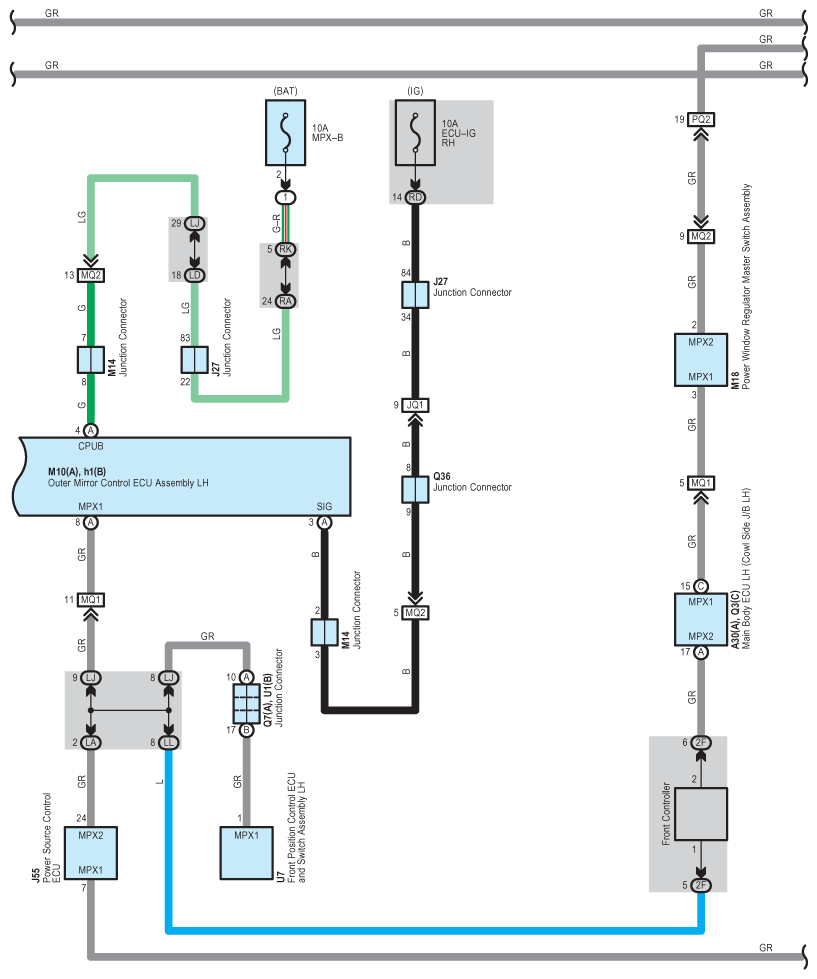

Fig 4: Remote Control Mirror - Circuit Diagram (4 Of 7)
G07617749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

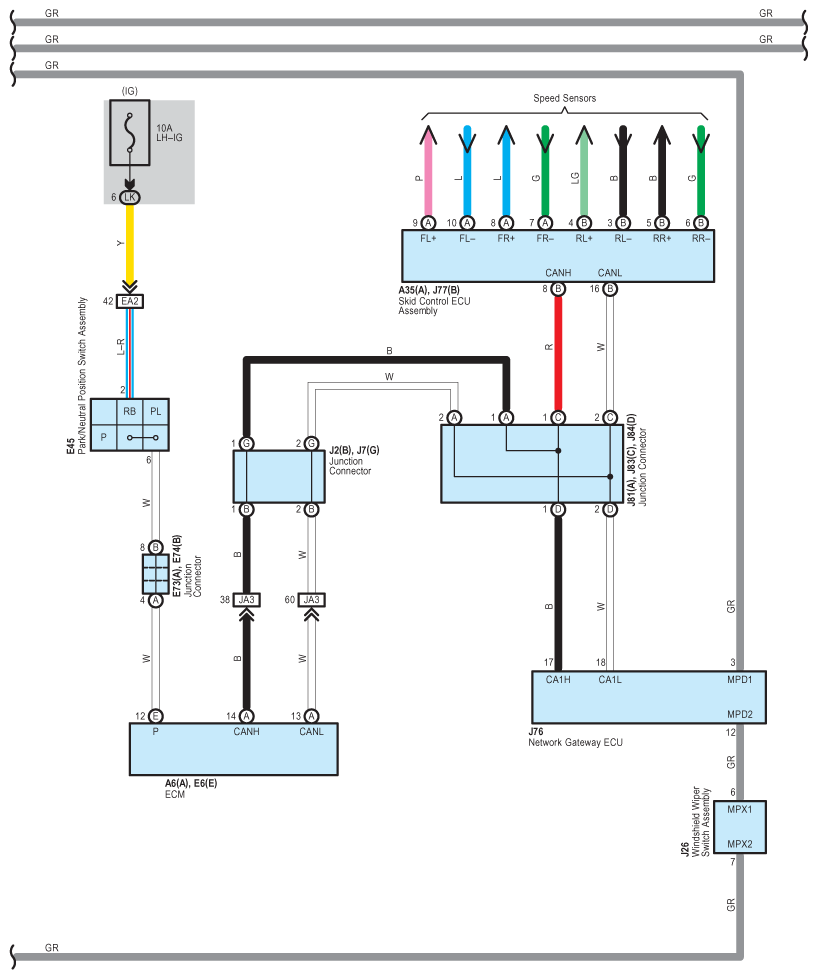

Fig 5: Remote Control Mirror - Circuit Diagram (5 Of 7)
G07617750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

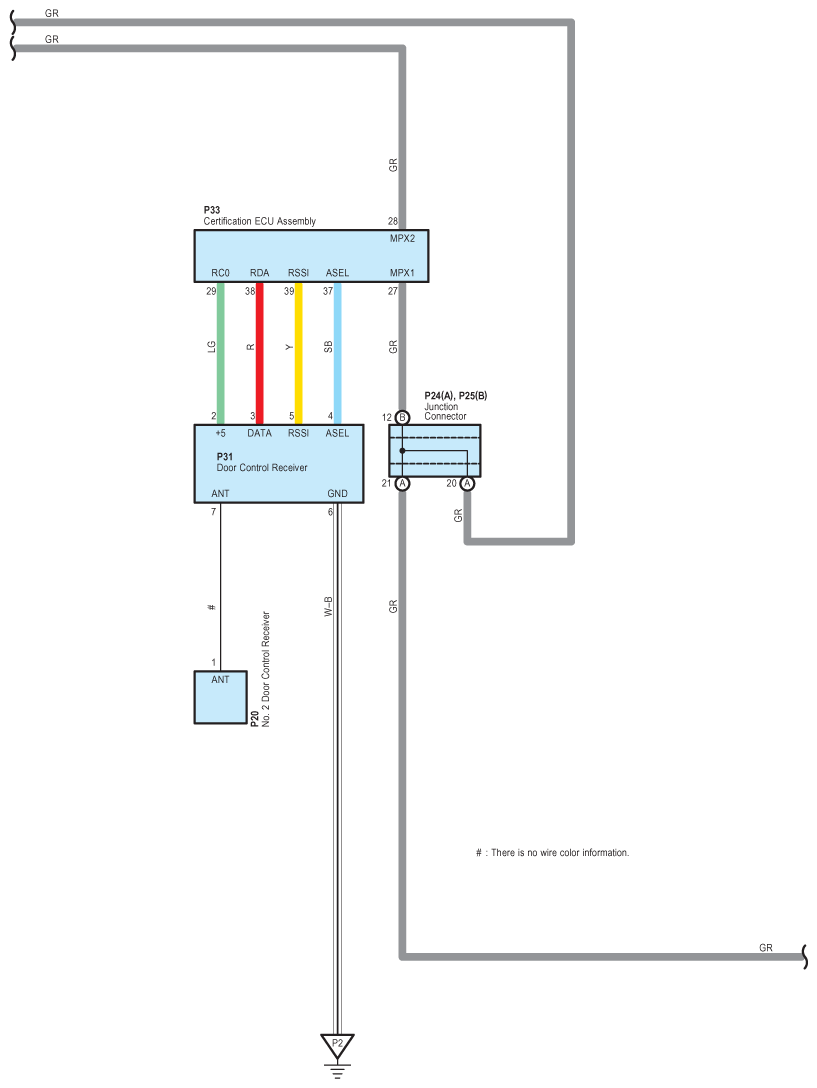

Fig 6: Remote Control Mirror - Circuit Diagram (6 Of 7)
G07617751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

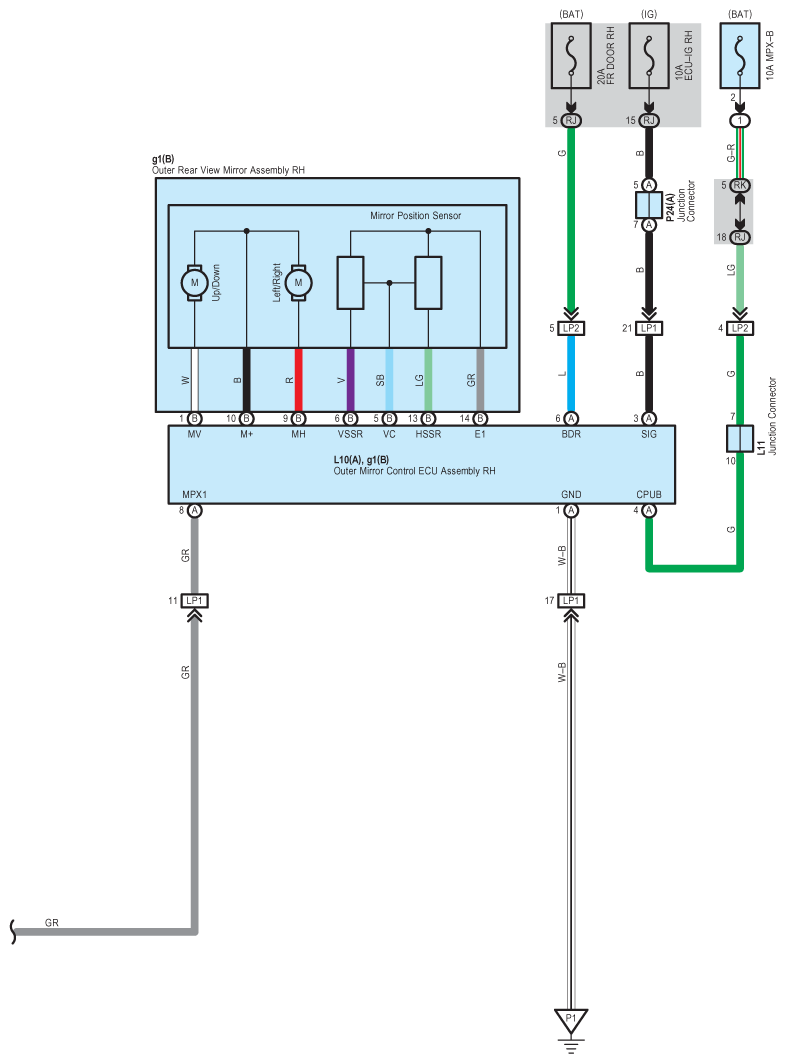

Fig 7: Remote Control Mirror - Circuit Diagram (7 Of 7)
G07617752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
